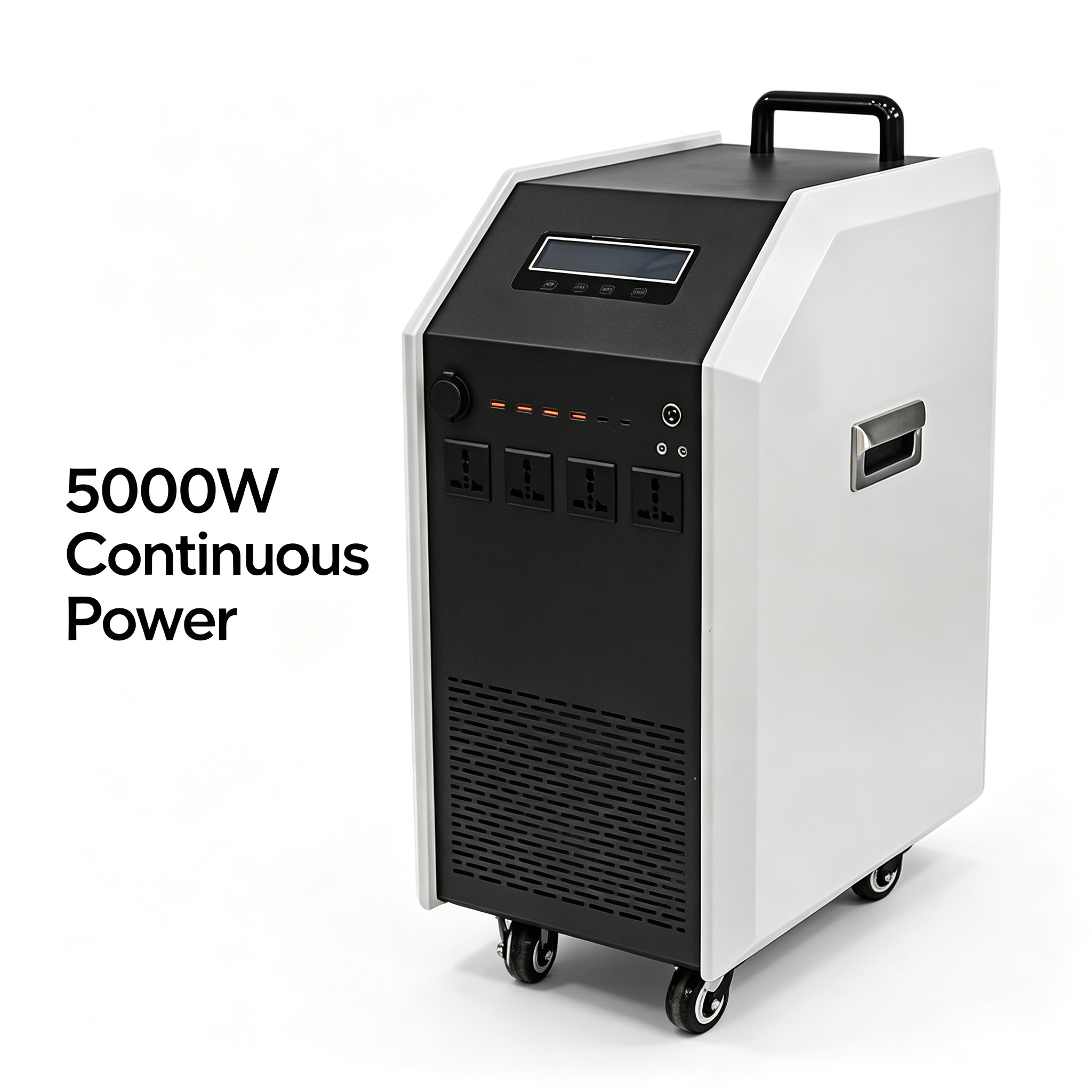

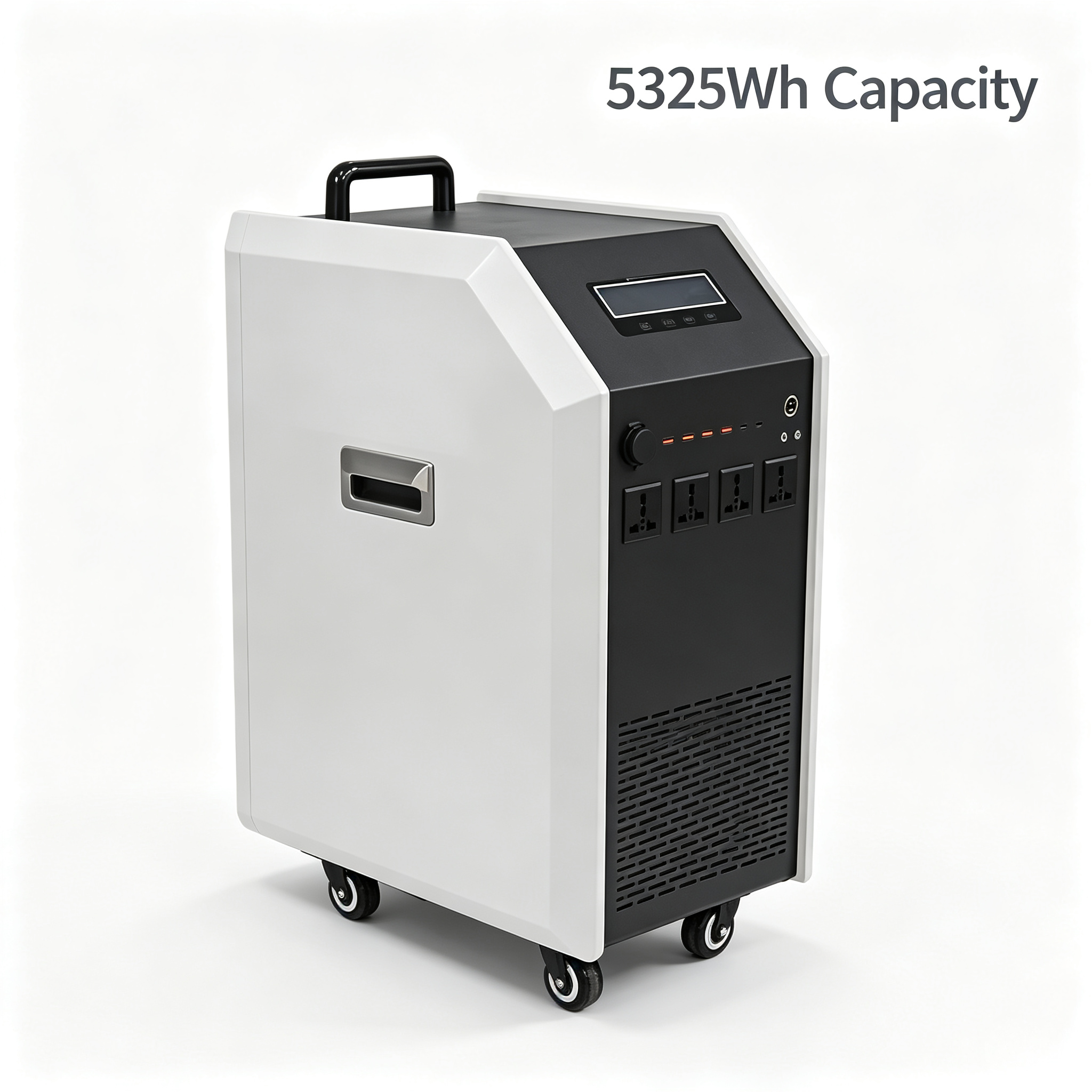

5000W Large Capacity Power Station

Name: 5000W Large Capacity Power Station
Brand: IVOLTECK
SKU: IVT5000W-01-A
Rating: 5 (1 reviews)

IATF 16949
ISO 9001
ISO 14001
ISO 50001
ISO 45001
UN38.3

Equipped with LiFePO4 battery, this portable power station has 5325Wh capacity, 5000W continuous output & 10000W peak pure sine wave power. It supports AC mains and solar dual charging, comes with abundant AC, USB and Type-C ports. Built with wheels and pull handle for easy movement, plus comprehensive BMS protection and long cycle life. Ideal for home blackout backup, RV off-grid living, camping and construction site power supply.

Request a Quote Reach Our Team

Specifications

Product NamePortable Power Station System (Iron Shell Version)

Rated AC Output Power5000W

AC Output Peak Power10000W

Battery TypeLithium Iron Phosphate (LiFePO4) Battery

Rated Battery Voltage51.2V

Rated Battery Capacity104Ah

Total Battery Energy5325Wh

Inverter Specification220V 5000W Sine Wave Inverter

USB Output Ports4 pcs

TYPE-C Output Ports2 pcs

AC Output Ports4 pcs AC Sockets (AC220V)

Charging Input ParameterDC12-24V

Charging Time (Mains Power)6-7 Hours

Charging Time (Solar Panel)7-8 Hours

Charging Input Ports2 pcs (18V Solar Panel Charging Port / AC Charger Port)

Cycle LifeMore Than 3500 Cycles

Product Dimension (L×W×H)45cm × 30cm × 71.5cm

Quantity Per Carton1 Unit Per Carton

Carton Dimension (L×W×H)50cm × 40cm × 75cm

Volume Per Carton (CBM)0.1500 m³

Gross Weight Per Carton61.00 KGS

Operating Temperature-10℃ ~ +45℃

Storage Temperature-20℃ ~ +60℃

Storage Humidity5% ~ 90%RH, Non-condensing, No Water Accumulation

Built-in ProtectionOvercharge, Overdischarge, Overcurrent, Short Circuit, Over Temperature, Overload Protection

Standard AccessoriesEnergy Storage Product System1pcs, User Manual1pcs, AC Charger*1pcs, Pearl Cotton Packaging

Compatible Solar Panel Specification60V 550W × 2pcs

Key Features

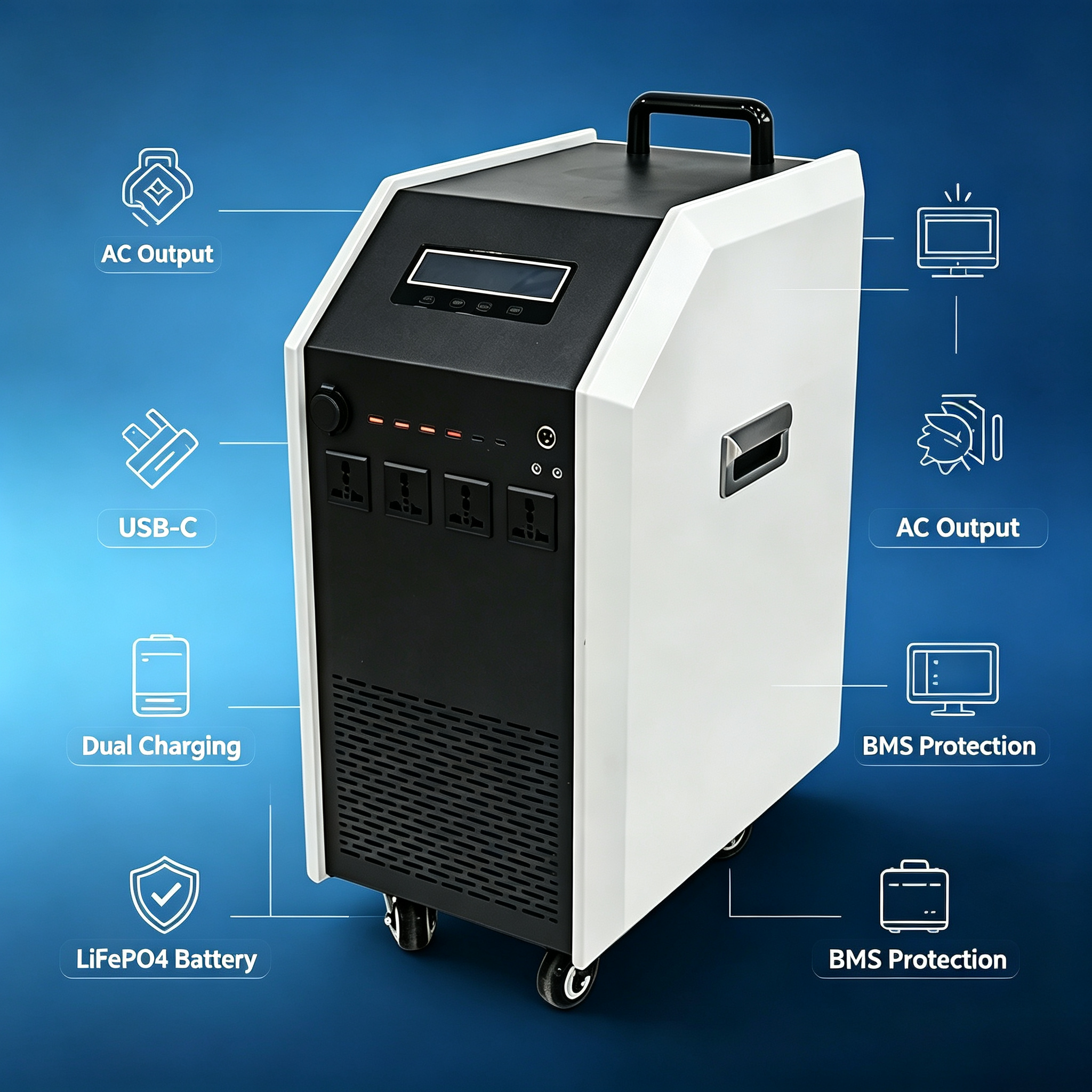

5325Wh LiFePO4 battery, 5000W continuous pure sine wave output

Dual AC/solar charging, multi ports & comprehensive BMS protection

Wheeled portable design for home, RV and outdoor work use

Product Description

1. Product Performance

Built-in 51.2V LiFePO4 battery with 5325Wh energy capacity, supporting over 3500 charge cycles. Adopting pure sine wave inverter, it delivers 5000W continuous AC output and 10000W surge peak power to run most household high-power appliances. Equipped with 4pcs 220V AC outlets, 4 USB ports and 2 Type-C fast charging ports for simultaneous multi-device power supply. It can be fully charged via grid electricity in 6-7 hours or solar panels within 7-8 hours. The intelligent BMS system provides full protection against overcharging, overdischarging, overload, short circuit and overheating for safe operation.

2. Product Advantages

Durable LiFePO4 battery features high temperature resistance and low capacity attenuation, much longer service life than ordinary lithium batteries;
Powerful 5000W continuous & 10000W peak output easily drives air conditioners, induction cookers, water pumps and other high-power devices;
Designed with universal wheels and top carry handle for effortless moving and transportation;
Dual charging modes: wall charging at home & solar charging outdoors, realizing off-grid self-power supply;
Various output ports cover home appliances and digital products to meet all daily power demands.

3. Application Scenarios

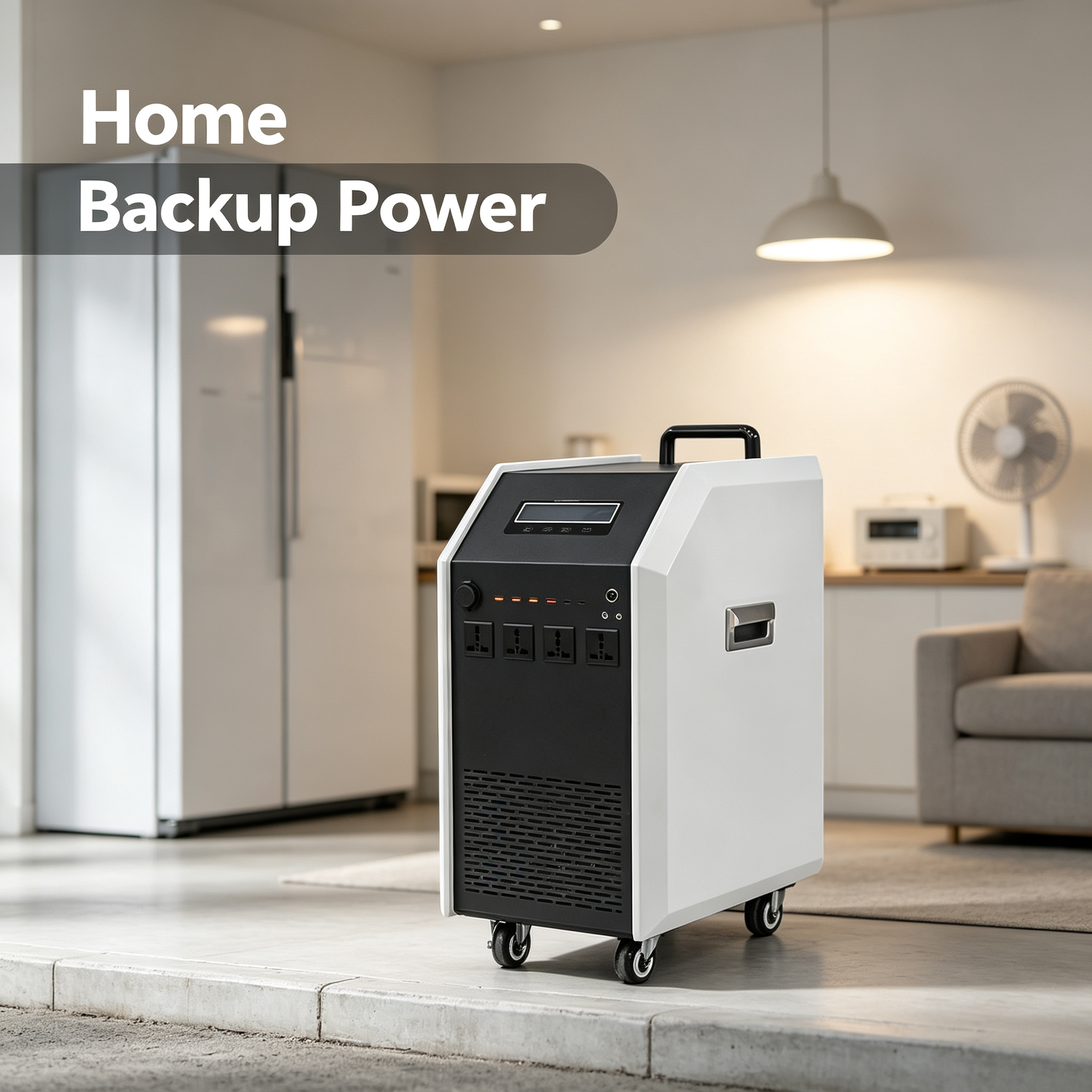

• Home emergency backup power for unexpected blackouts, keeping refrigerators, lights and daily appliances running;

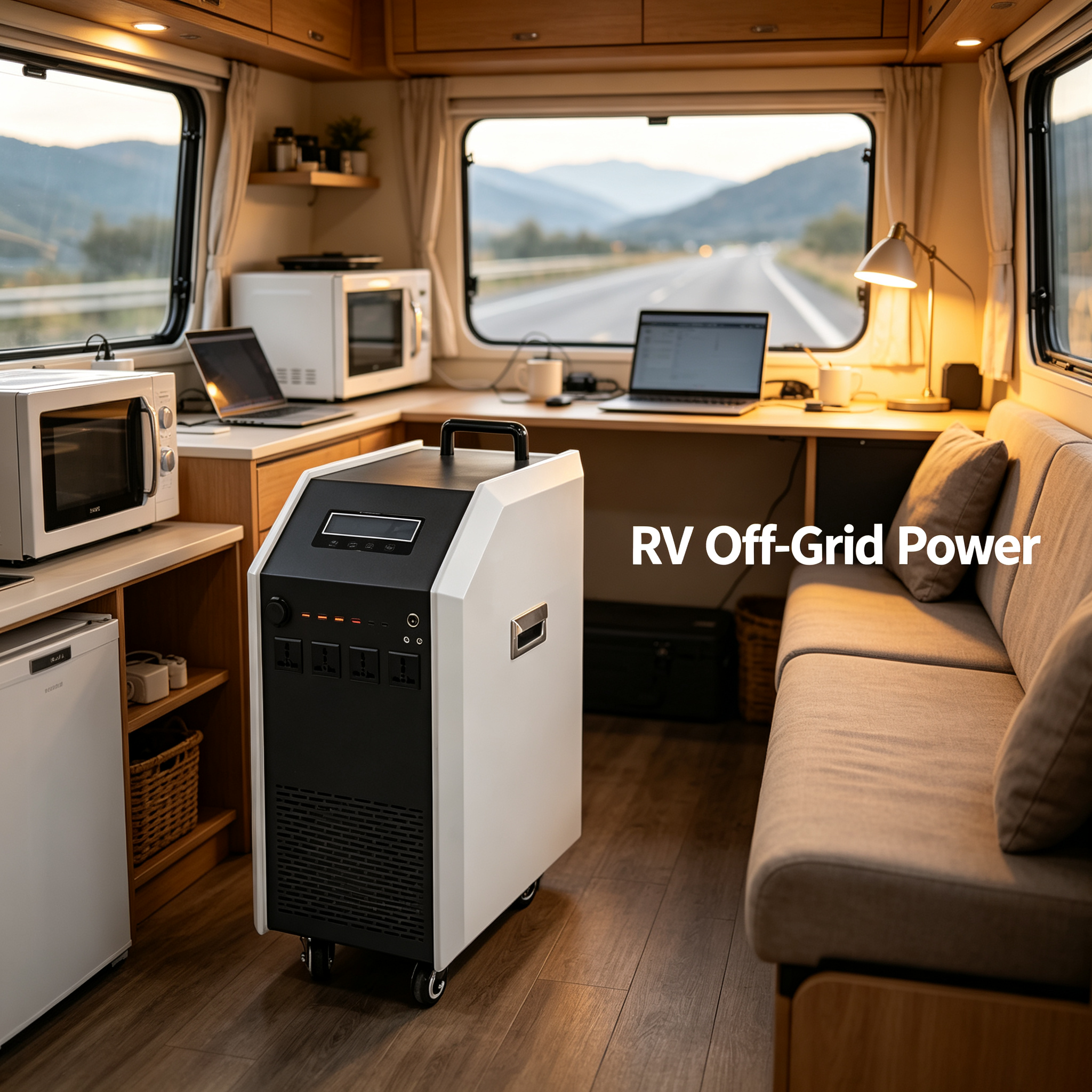

• Off-grid power supply for RV road trips to support all onboard electrical equipment;
• Outdoor camping power for cooking, lighting, projection and electronics charging;

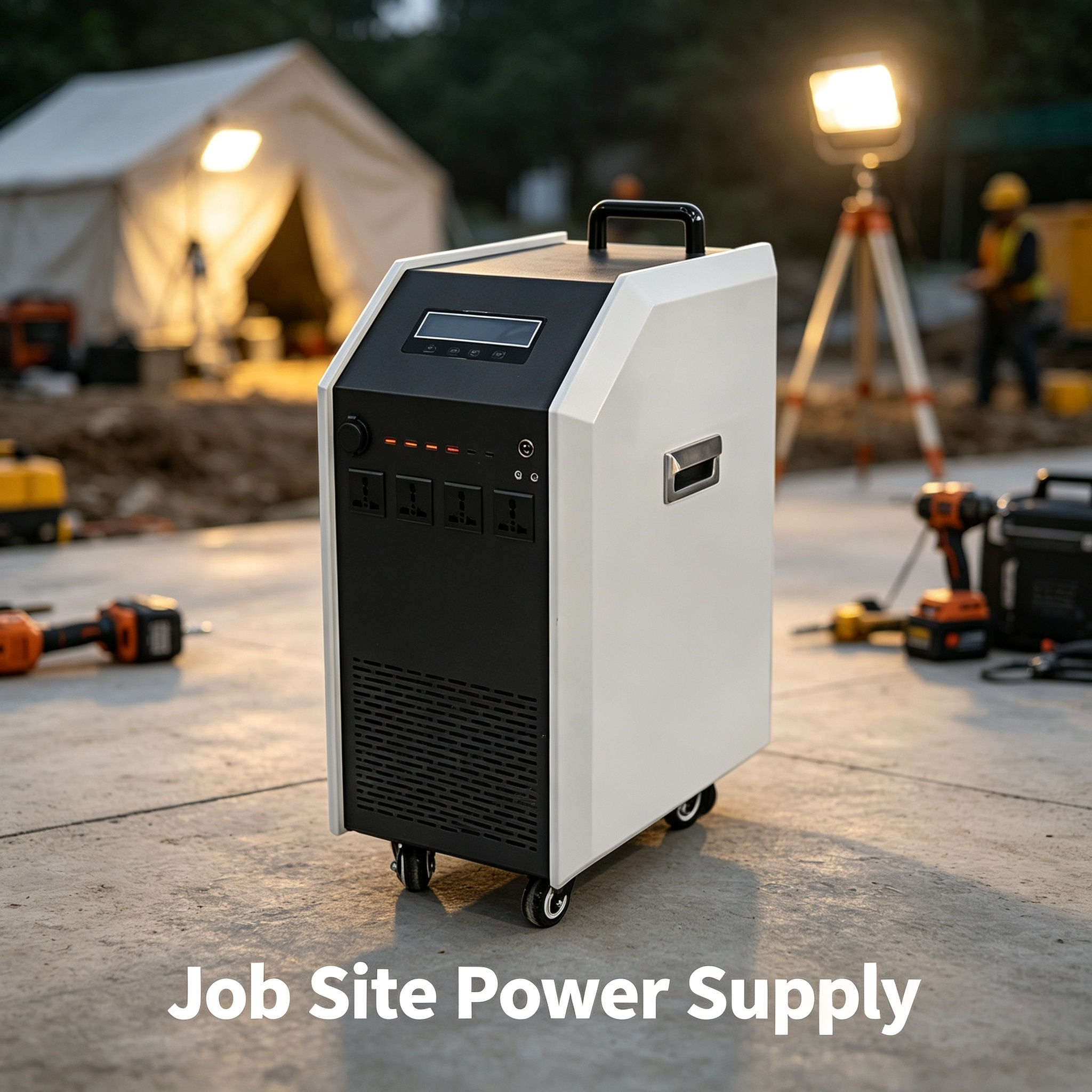

• Construction & field work power supply for engineering tools and survey instruments.
