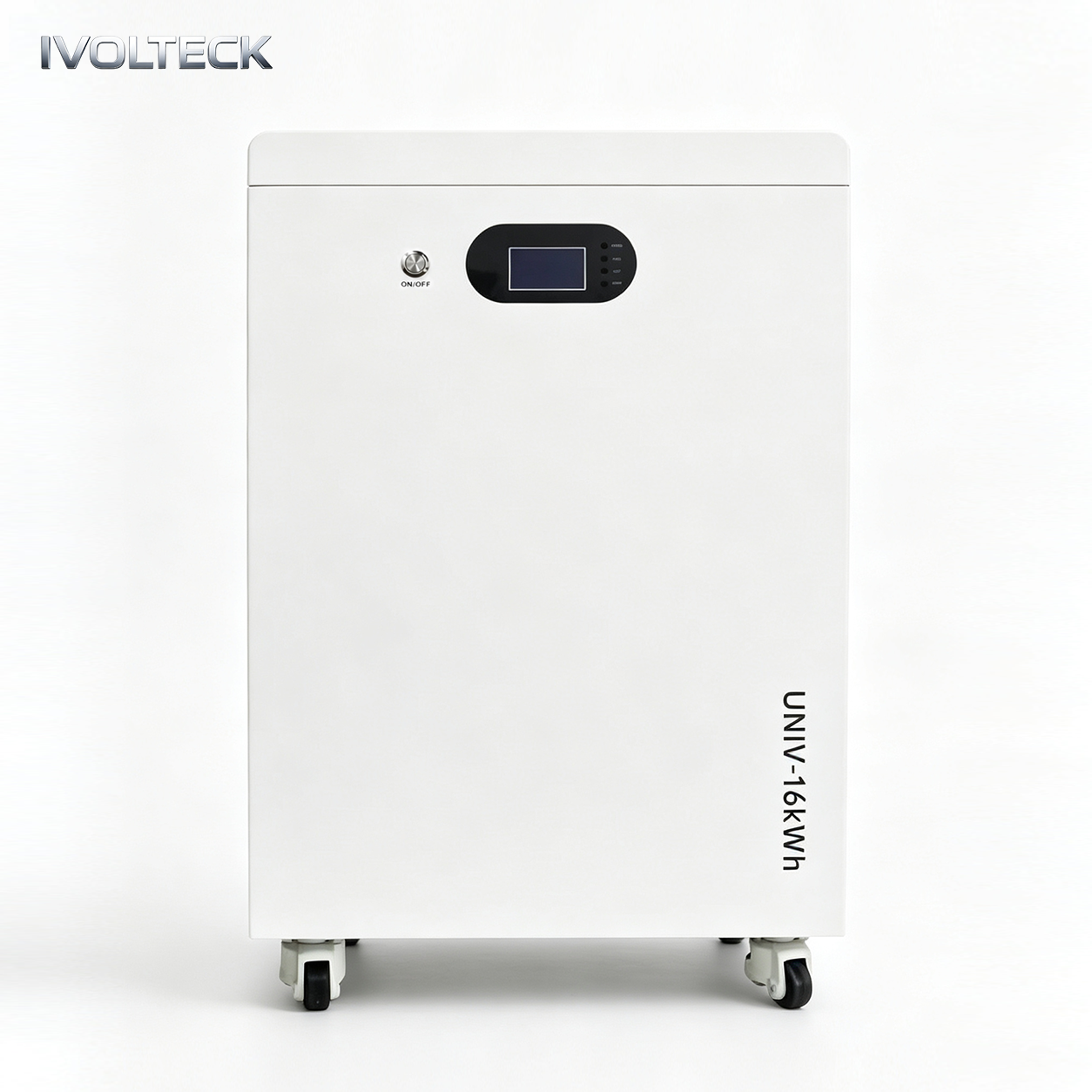

16kWh Automotive Grade LiFePO4 Energy Storage Battery 15.11kWh Usable Energy 90% DOD 200A Charge Discharge 20 Units Parallel Expandable OEM ODM Supplier

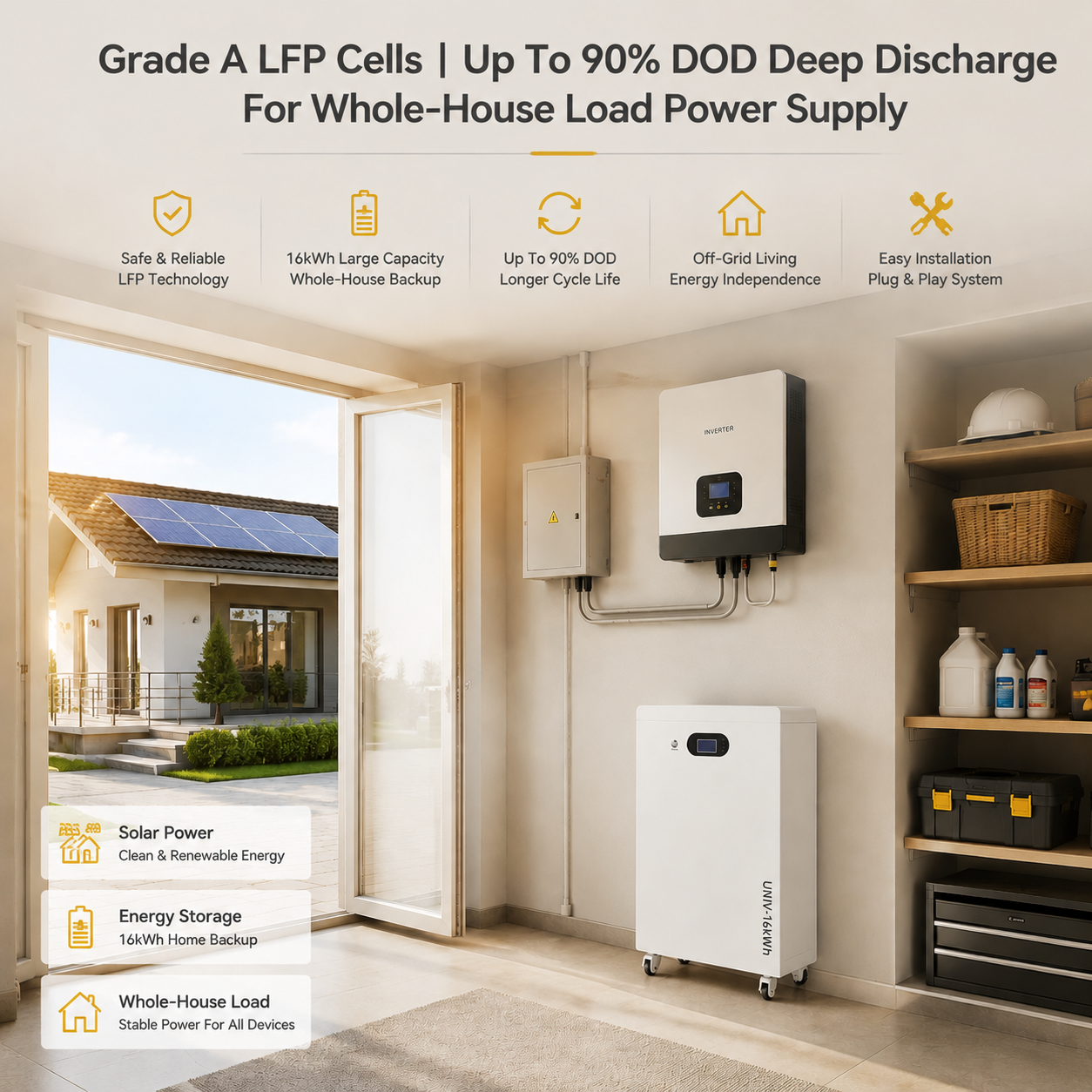

1. 16.08kWh Large Capacity, Long-Duration Whole-House Energy Supply

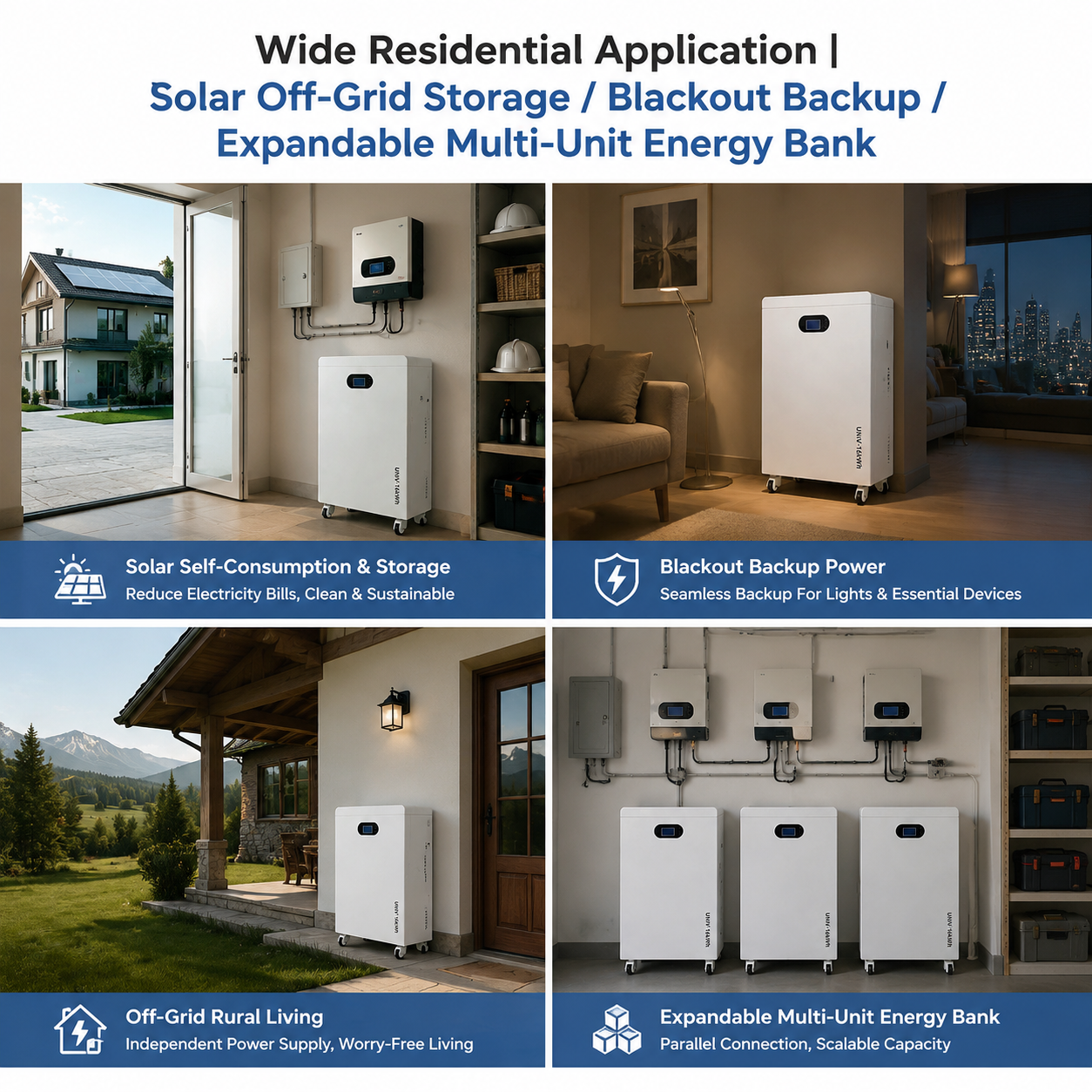

Built-in automotive-grade LiFePO4 cells, the battery provides 16.08kWh total energy and 15.11kWh usable capacity with 90% DOD deep discharge. It efficiently stores solar power to support daily household appliances and offers long-lasting emergency backup during power outages.

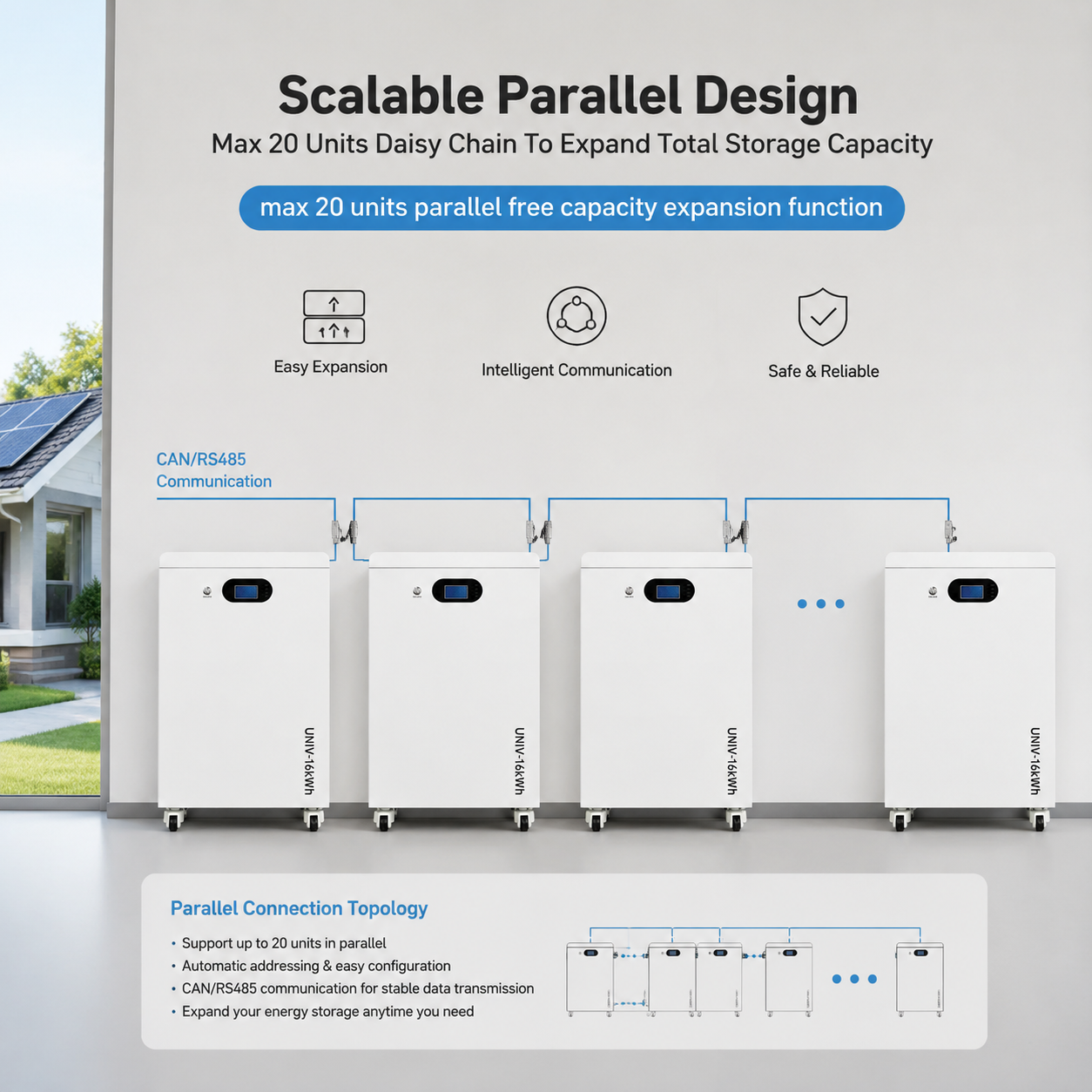

2. Max 200A Charge & Discharge Current, Expandable with Up to 20 Units in Parallel

It supports maximum 200A charge and discharge current for stable high-power output. Up to 20 units can be connected in parallel to flexibly adjust capacity, ideal for large villas and light commercial solar storage systems.

3. Comprehensive BMS Multi-Safety Protection, 15+ Years Ultra-Long Lifespan

Adopted full-range intelligent BMS with overvoltage, overcurrent, short-circuit, undervoltage, over-temperature protection and cell balance function. The service life exceeds 15 years under 25℃ working environment, covered by a 10-year official warranty.

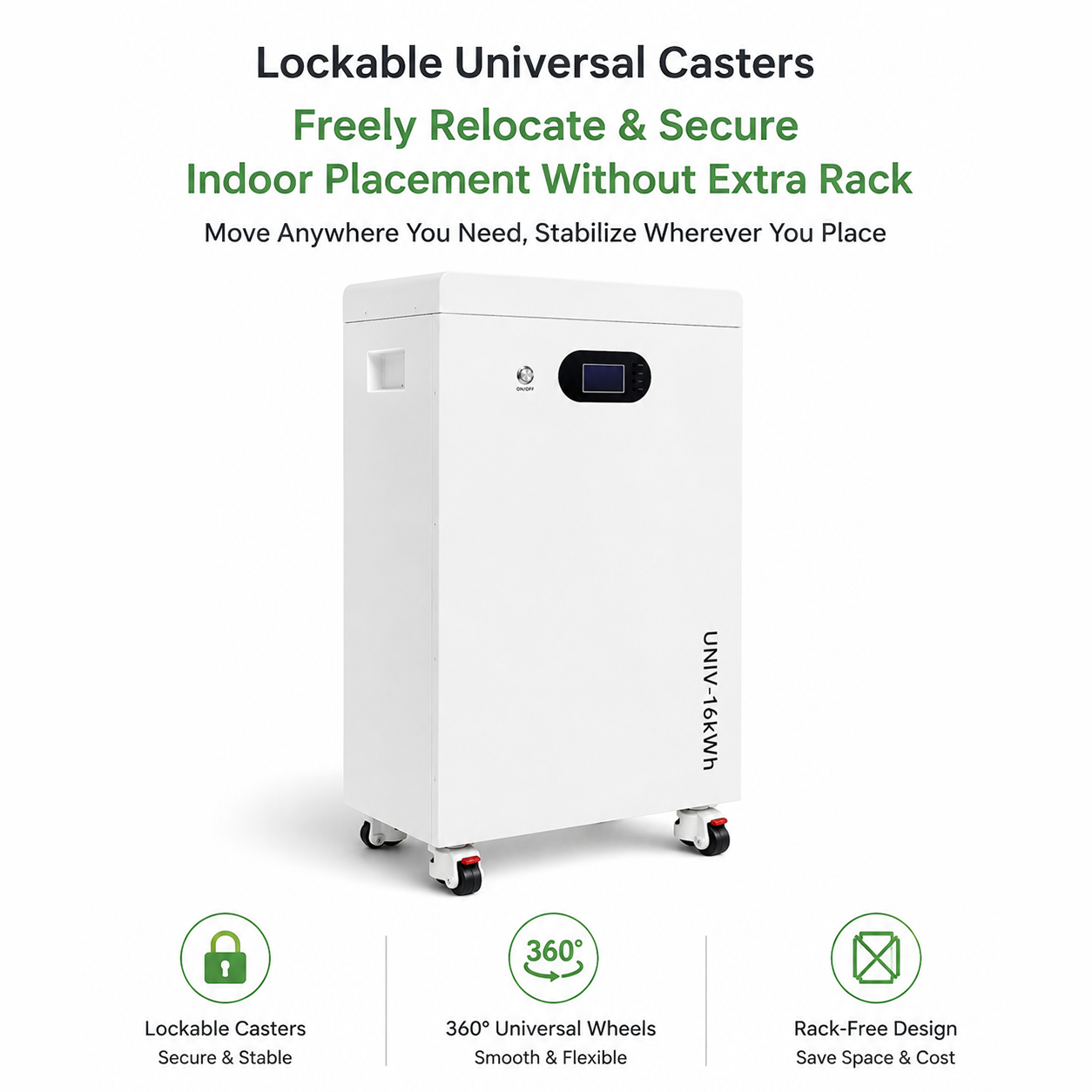

4. Vertical Cabinet with Lockable Casters, Flexible Floor Placement

Vertical integrated cabinet equipped with lockable universal casters. Dimensions: 525720245mm, net weight 117kg. Floor-standing installation requires no wall renovation, easy to move and arrange in garages, basements and equipment rooms.

5. Bluetooth + LCD Touch Screen + Dual Communication, Intelligent Visual Management

Designed with button-controlled LCD screen, travel protection and Bluetooth. CAN/RS485 dual communication ports support real-time battery data monitoring. The battery connects seamlessly with mainstream solar inverters to realize intelligent household energy management.

6. Wide Temperature Adaptability & Full Set of International Authoritative Certifications

Wide operating temperature: 0℃~55℃ for charging, -20℃~55℃ for discharging. Certified with CE, UL1973, IEC62619, UN38.3 and MSDS. It operates reliably indoors within 5%~95% non-condensing humidity below 2000m altitude.
