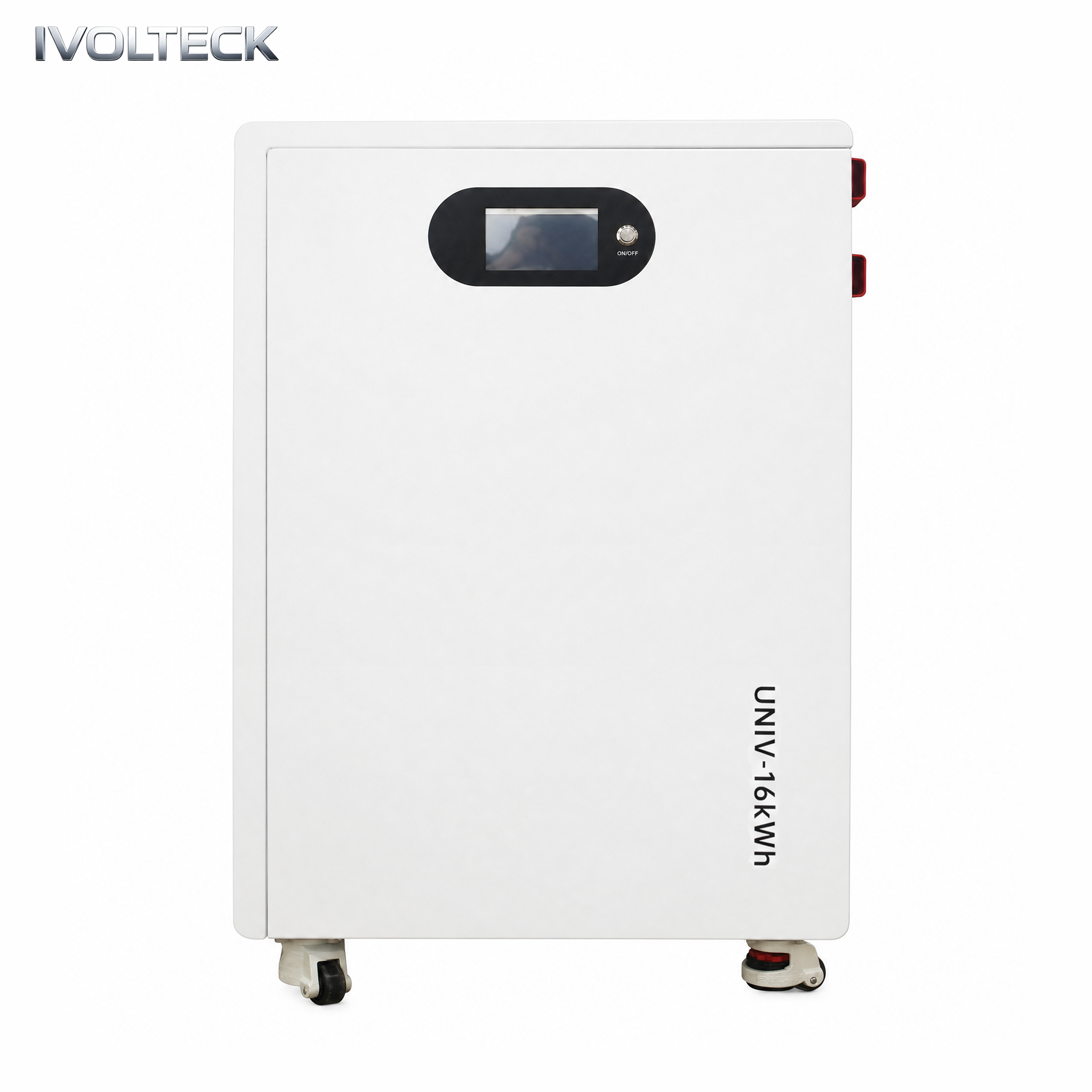

51.2V 314Ah 16kWh Residential Vertical Energy Storage Battery

1. Sufficient Energy Storage Capacity, Support Large-Scale Parallel Expansion

It provides total energy of 16.08kWh and usable energy of 15.11kWh with 90% high DOD. The maximum charge and discharge current reaches 200A, and up to 20 units can be connected in parallel. Flexible capacity expansion meets upgrading demands of household energy storage systems.

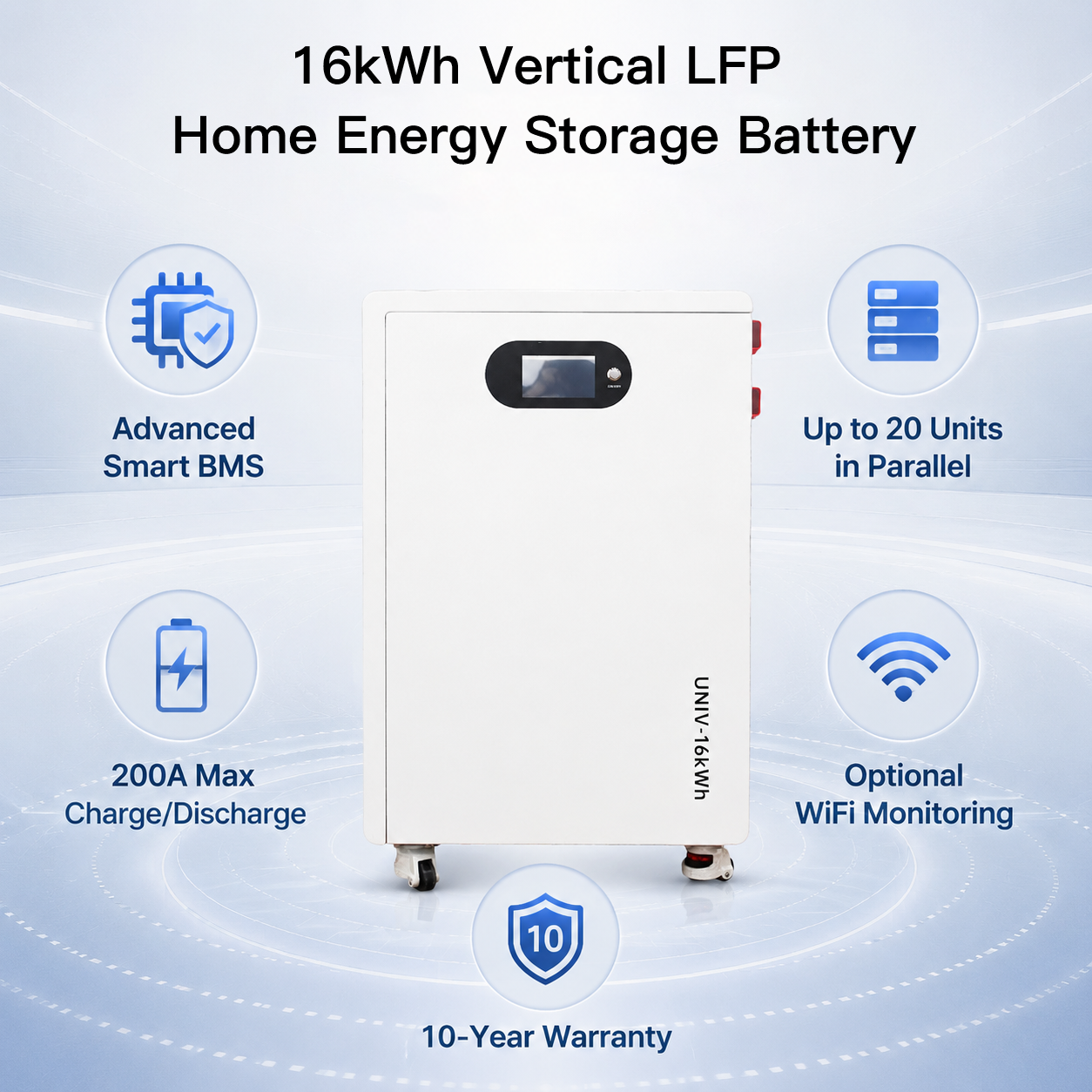

2. Fully Protected BMS System, Optional WIFI For Intelligent Interaction

Built-in comprehensive BMS offers overvoltage, overcurrent, short circuit, low voltage, overheat protection and cell balancing function. Fitted with touch screen, optional WIFI module and CAN/RS485 communication ports to realize remote battery monitoring.

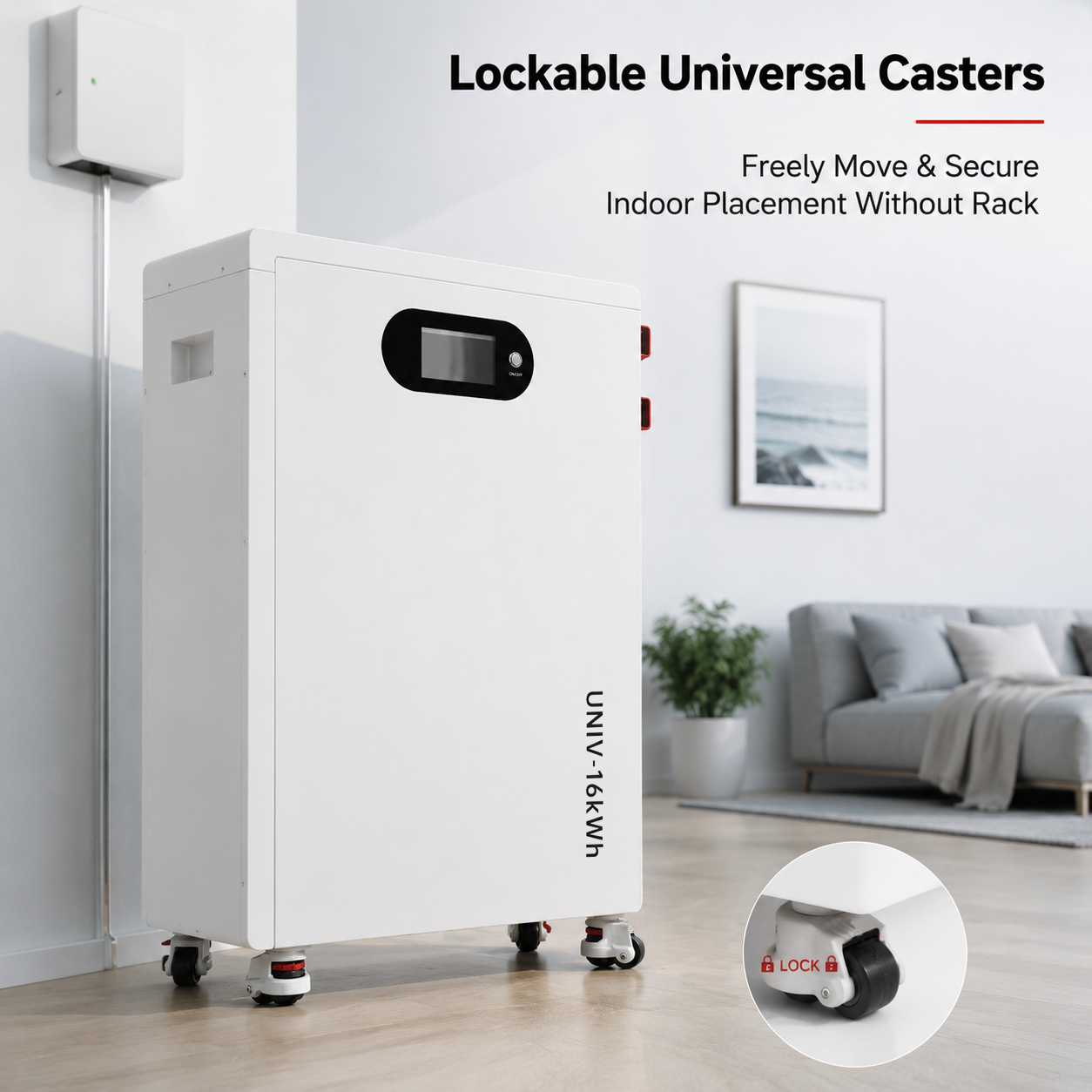

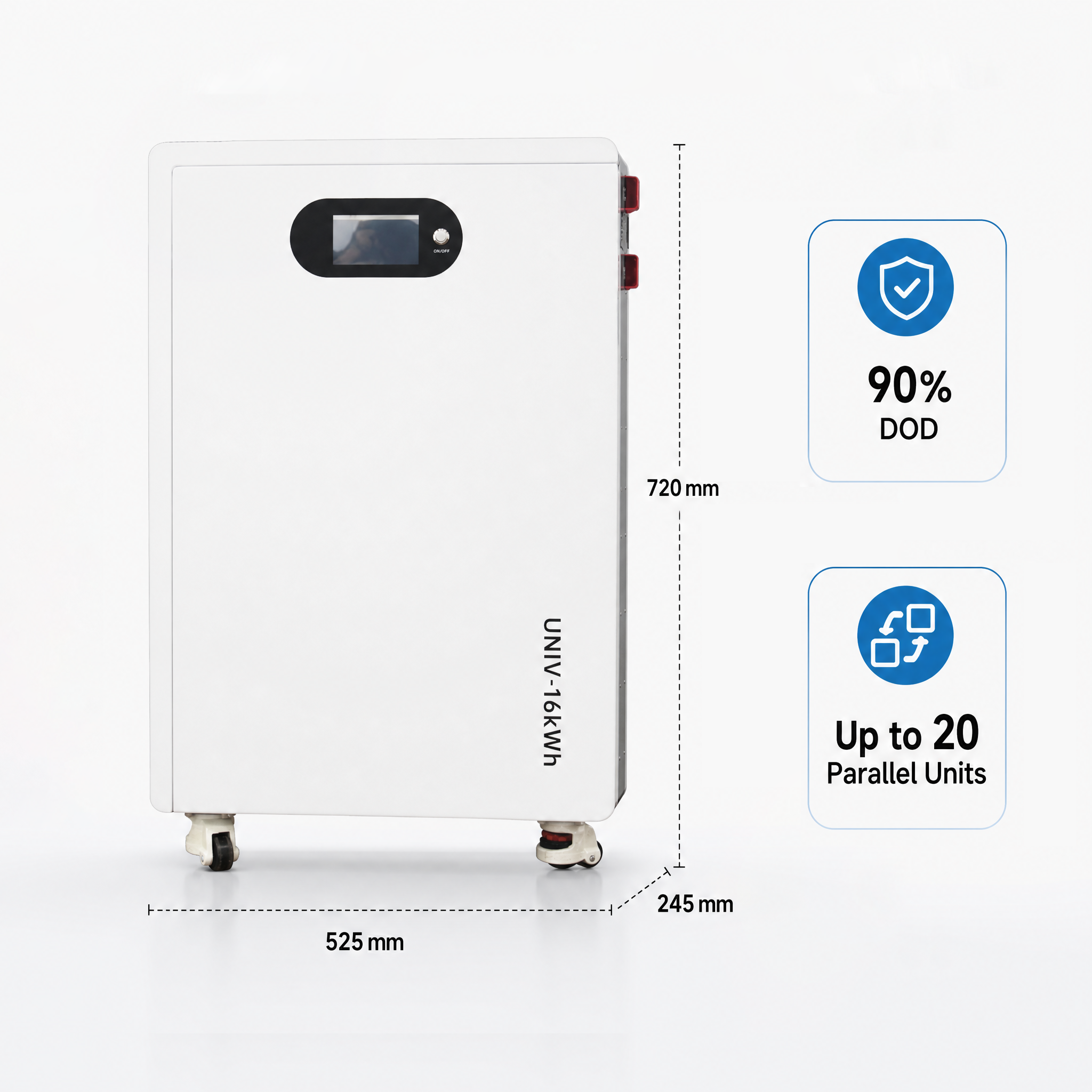

3. Compact Vertical Cabinet, Natural Cooling & Easy Movement

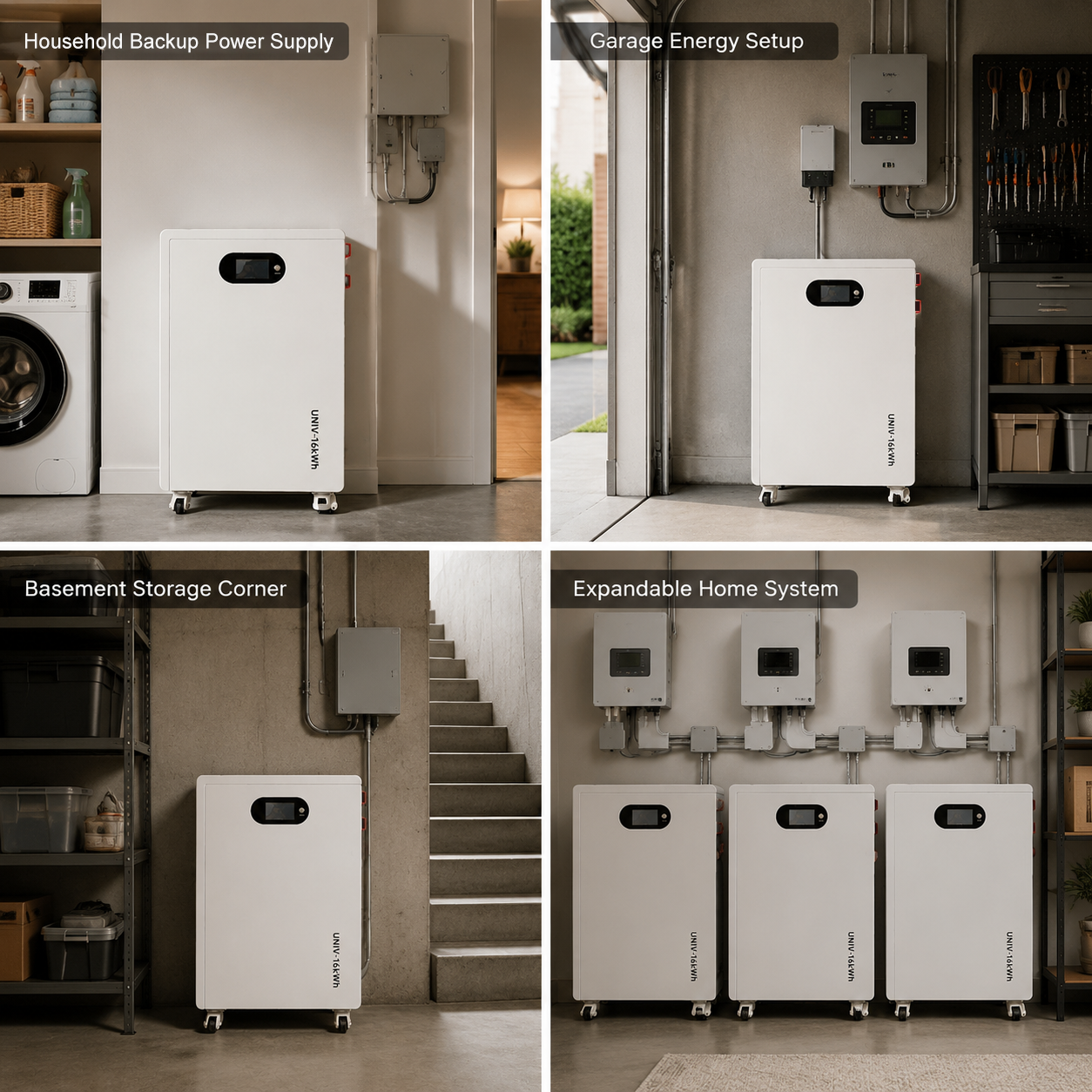

Adopts vertical compact cabinet equipped with movable casters for convenient transportation. With IP20 indoor protection and passive natural cooling structure, no extra cooling equipment is required, enabling simple indoor installation.

4. Stable Operation in Wide Temperature Range, Ultra-Long Service Life

Wide operating temperature range: 0℃~55℃ for charging, -20℃~55℃ for discharging, suitable for environments with altitude ≤2000m. The product comes with a 10-year official warranty and can serve over 15 years under 25℃ working conditions.

5. Complete International Compliance Certifications, Hassle-Free Export

It has obtained safety certifications including CE, UL1973, IEC62619, as well as UN38.3 and MSDS transportation certifications. It complies with global market access standards for residential energy storage export.
