Home Products Power Battery Pack1.83kWh CTP NCM HEV Battery Pack Direct Cooling

NCM lithium battery

Cell Type

1P96S

grouping method

1.83kWh

System Power Level

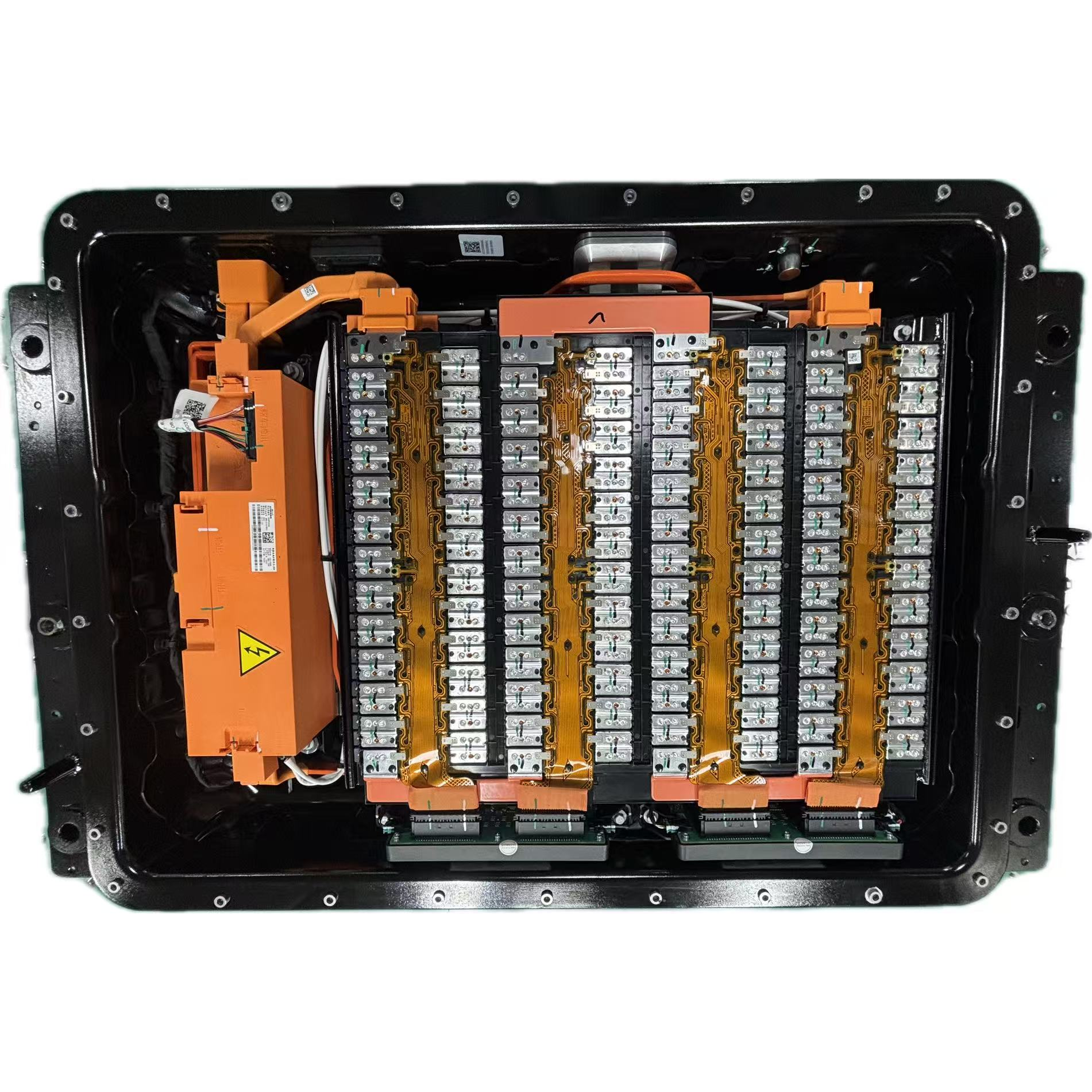

1.83kWh CTP NCM HEV Battery Pack Direct Cooling

IATF 16949
ISO 9001
ISO 14001
ISO 50001
ISO 45001
UN38.3

- 1.83kWh CTP NCM HEV battery pack, 352.3V, 5.2Ah, 1P96S configuration - Direct cooling thermal management for hybrid vehicle operation - Lightweight automotive-grade pack for passenger HEV - Bulk orders accepted, OEM support & aftermarket replacement available

Specifications

ModelIVT1.83kWh-01-A

NamePassenger Vehicle Battery Pack

Trade MarkIVOLTECK

OriginChina

Cell TypeNCM lithium battery

grouping method1P96S

Type of processCTP

System Power Level1.83kWh

Nominal Voltage352.3V

Rated Capacity5.2Ah

Cooling typeDirect cooling

Dimensions (Width × Height × Depth) (mm)790mm*600mm*93mm

Weight (kg)46.7kg

Application ScenarioHEV

Key Features

1.83kWh CTP NCM battery pack, 1P96S, 352.3V, 5.2Ah for passenger HEV

Direct cooling system, stable under frequent charge & discharge cycles

CTP lightweight integrated design, only 46.7kg, compact dimension

Automotive grade, for new vehicle assembly & aftermarket replacement

Mass supply available, OEM service supported

Product Description

Performance

NCM lithium cells, 1.83kWh system energy, 352.3V high voltage platform. Adopt CTP integrated technology with outstanding power performance to match HEV power demand

Application Value

Customized for HEV hybrid passenger vehicles, suitable for complete vehicle assembly and OEM hybrid vehicle project development

Appearance & Craft

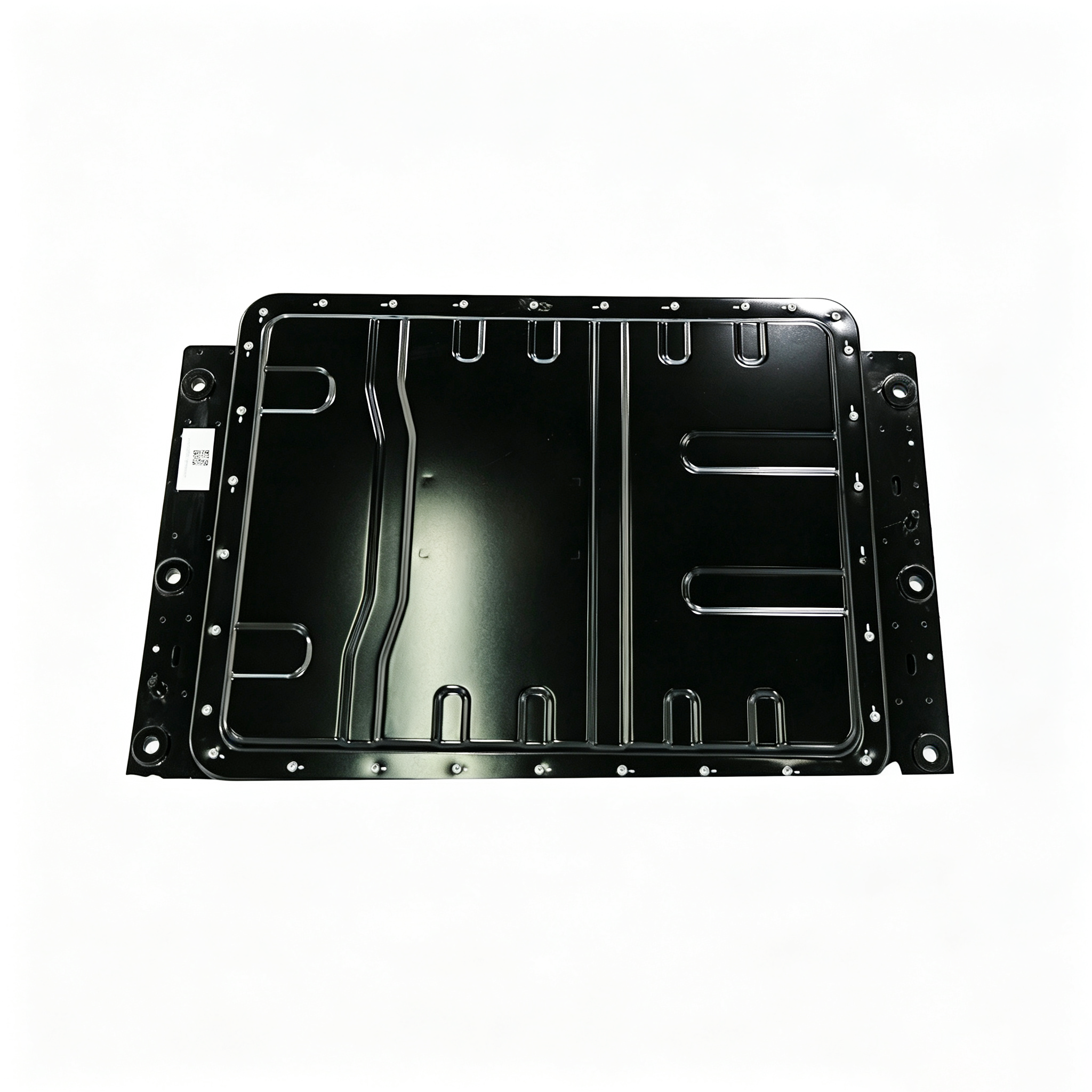

Ultra-thin flat casing, dimension 790*600*93mm, only 46.7kg. Compact & lightweight design, effectively save chassis layout space

Safety & Thermal Management

Direct cooling system delivers efficient thermal control, balances cell temperature rapidly, ensures stable operation under frequent start-stop conditions and extends service life
