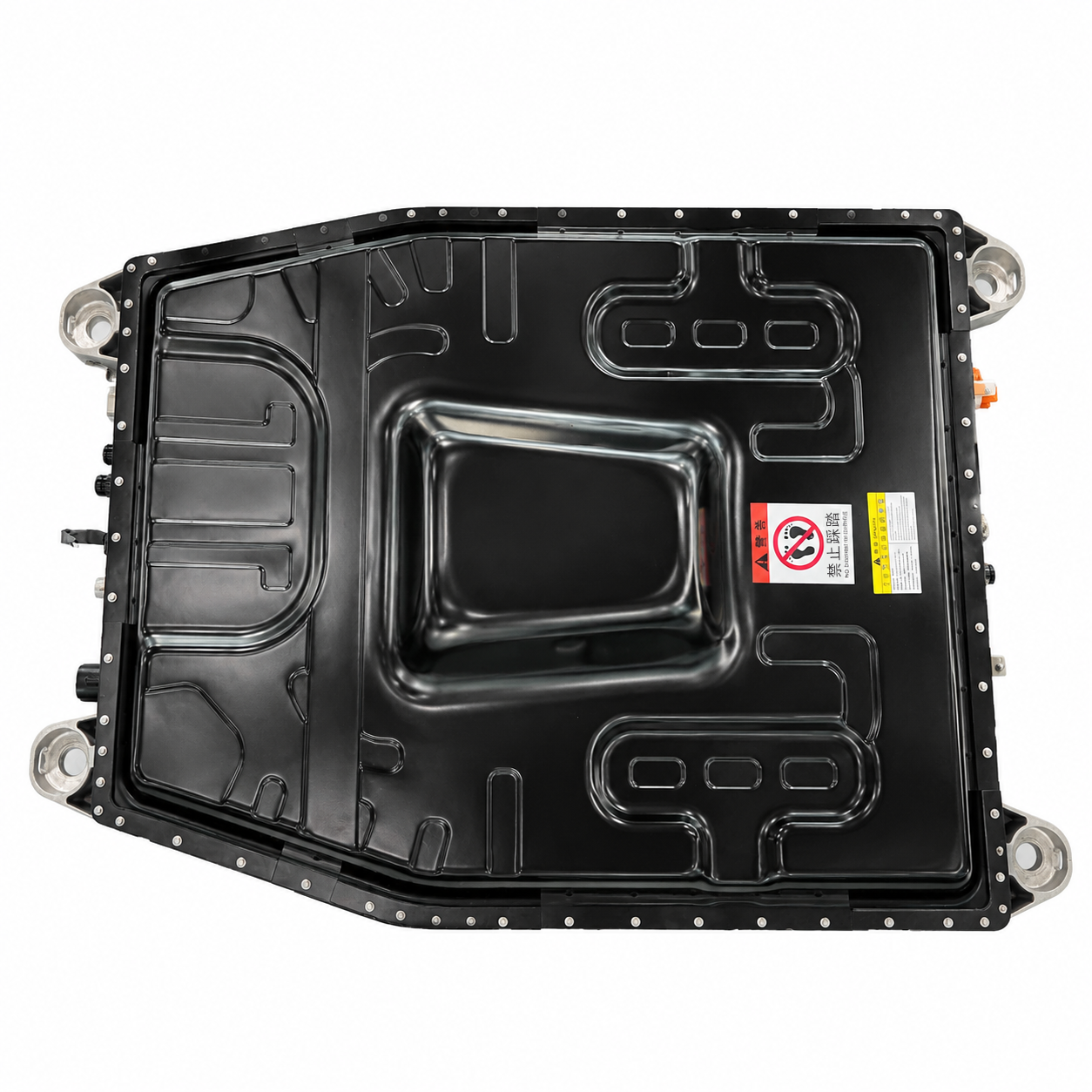

40.31kWh MTP NCM PHEV Battery Pack Liquid Cooling
- IATF 16949
- ISO 9001
- ISO 14001
- ISO 50001
- ISO 45001
- UN38.3
40.31kWh MTP NCM battery pack, 1P96S, 355.2V, 113.5Ah for passenger PHEV Liquid cooling thermal system, stable under EV & hybrid driving conditions MTP integrated structure, weight 267±5.34kg Automotive grade, for vehicle assembly & aftermarket replacement Mass supply available, OEM service supported
Specifications
Key Features
Product Description
Performance
NCM lithium cells, 40.31kWh system energy, 355.2V high-voltage platform, 113.5Ah. Adopt MTP integrated technology with high energy density, balancing EV range and acceleration power for PHEV vehicles
Application Value
Developed for PHEV plug-in hybrid passenger vehicles. Suitable for OEM assembly, supporting short-distance pure electric driving and long-distance hybrid driving
Appearance & Craft

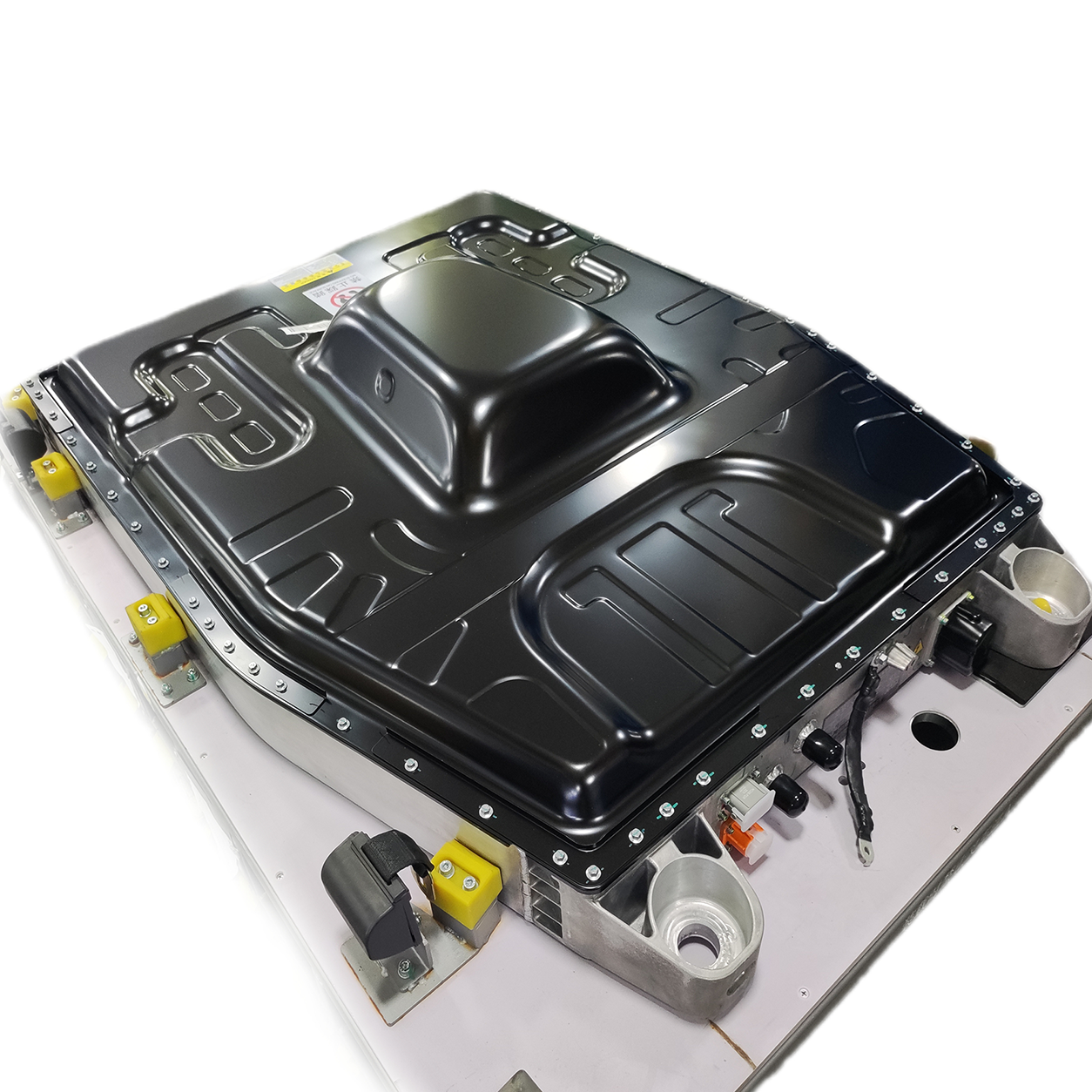

Regular casing structure, dimension 1535mm1026mm486mm, weight 267±5.34kg. Integrated module design for convenient chassis installation
Safety & Thermal Management
Equipped with liquid cooling system to equalize cell temperature efficiently. Maintains stable power output under frequent charge-discharge cycles on complex roads and extends cycle life
Customer Reviews (1)
Liquid cooling thermal management performs stable under hybrid driving cycles. MTP integrated structure is well‑proven for PHEV projects.
