1kwh Standard Energy Storage Module
Lithium Iron Phosphate
Battery Type
400W
Maximum Charging Power
1004.8Wh
Capacity

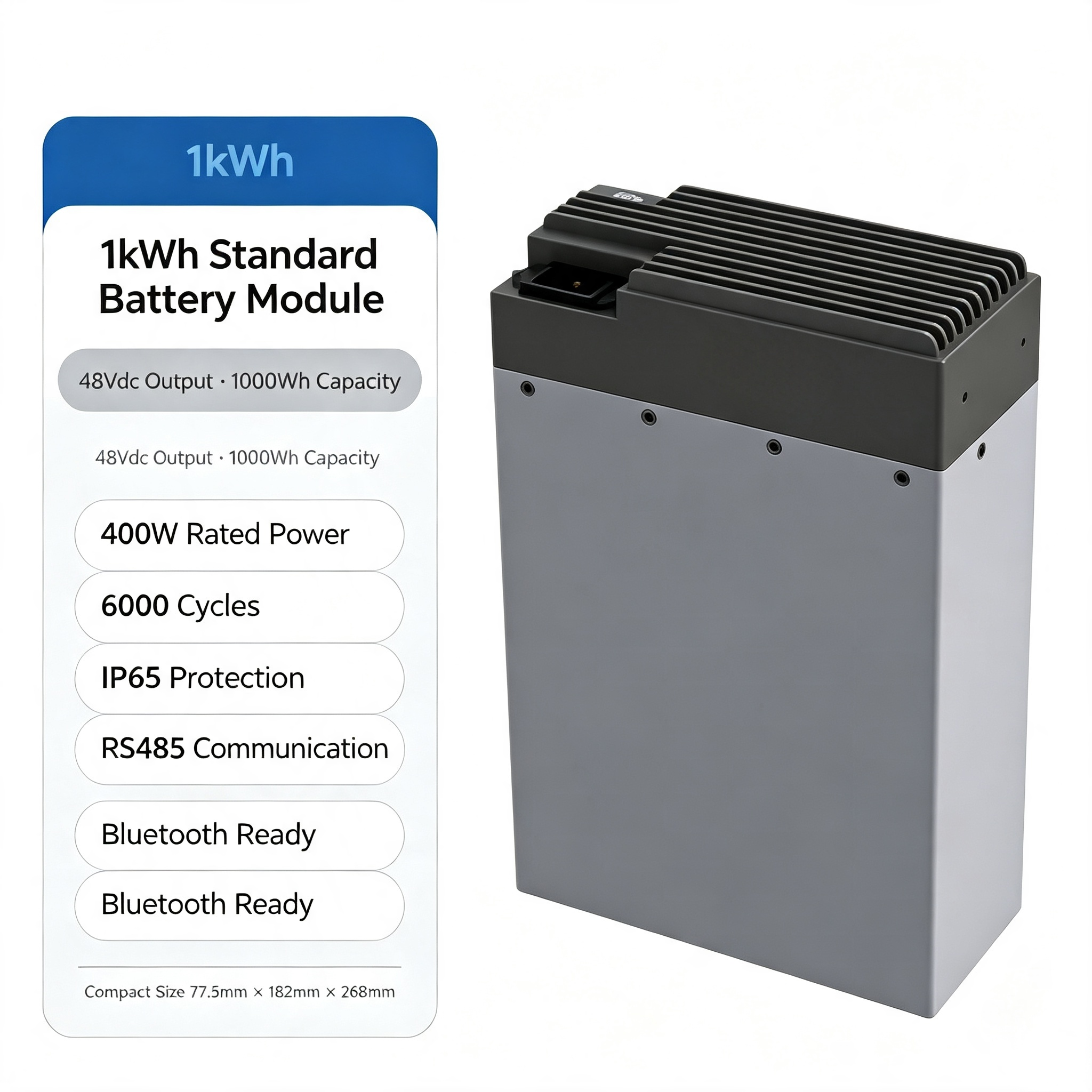

1kwh Standard Energy Storage Module

  • IATF 16949
  • ISO 9001
  • ISO 14001
  • ISO 50001
  • ISO 45001
  • UN38.3

This smart boost LiFePO4 power module comes with 1004.8Wh capacity. It supplies 48 volt direct current output and 400 watt rated charge and discharge power. RS485 wired connection and Bluetooth are equipped for real time battery data inspection. It applies to mobile energy storage, mobility tools and small power consuming equipment. Buyers can pick premium 314 battery cell or budget friendly 280 battery cell.

Specifications

Capacity1004.8Wh
Dimension (Length × Height × Depth)77.5mm×182mm×268mm
Net Weight9 Kg
Battery TypeLithium Iron Phosphate
Cycle Life80 percent capacity retained after 6000 cycles
Maximum Charging Power400W
Rated Discharge Power400W
Output Voltage48Vdc
Ingress Protection GradeIP65
Charging Temperature Range0‑55℃
Discharging Temperature Range-20‑55℃
Safety ProtectionOver charge, over discharge, over current, high temperature, low temperature and short circuit protection
Wired CommunicationRS485
Bluetooth FunctionAvailable

Key Features

6000 charge discharge cycles80% residual capacity, long service life LiFePO4 battery
Widely compatible with new national standard e bikes, delivery robots, service robots and portable energy storage equipment
IP65 dust proof & waterproof casing, stable outdoor operation

Product Description

1.Two kinds of battery cells for selection. High quality 314 cell features long cycle life and 280 cell offers favourable price.

2.Bluetooth and RS485 dual communication checks battery level, temperature and fault information in real time.

3.IP65 dust proof and splash proof performance supports outdoor usage.

3.Complete safety protection from over charge, over discharge, over current, high low temperature and short circuit.

4.Compact 9 kilogram body is easy to carry, install and embed inside power supply machinery.
