9.98~29.95kWh
Total Energy
192~576Vd.c
Nominal Voltage
IP54
IP Rating

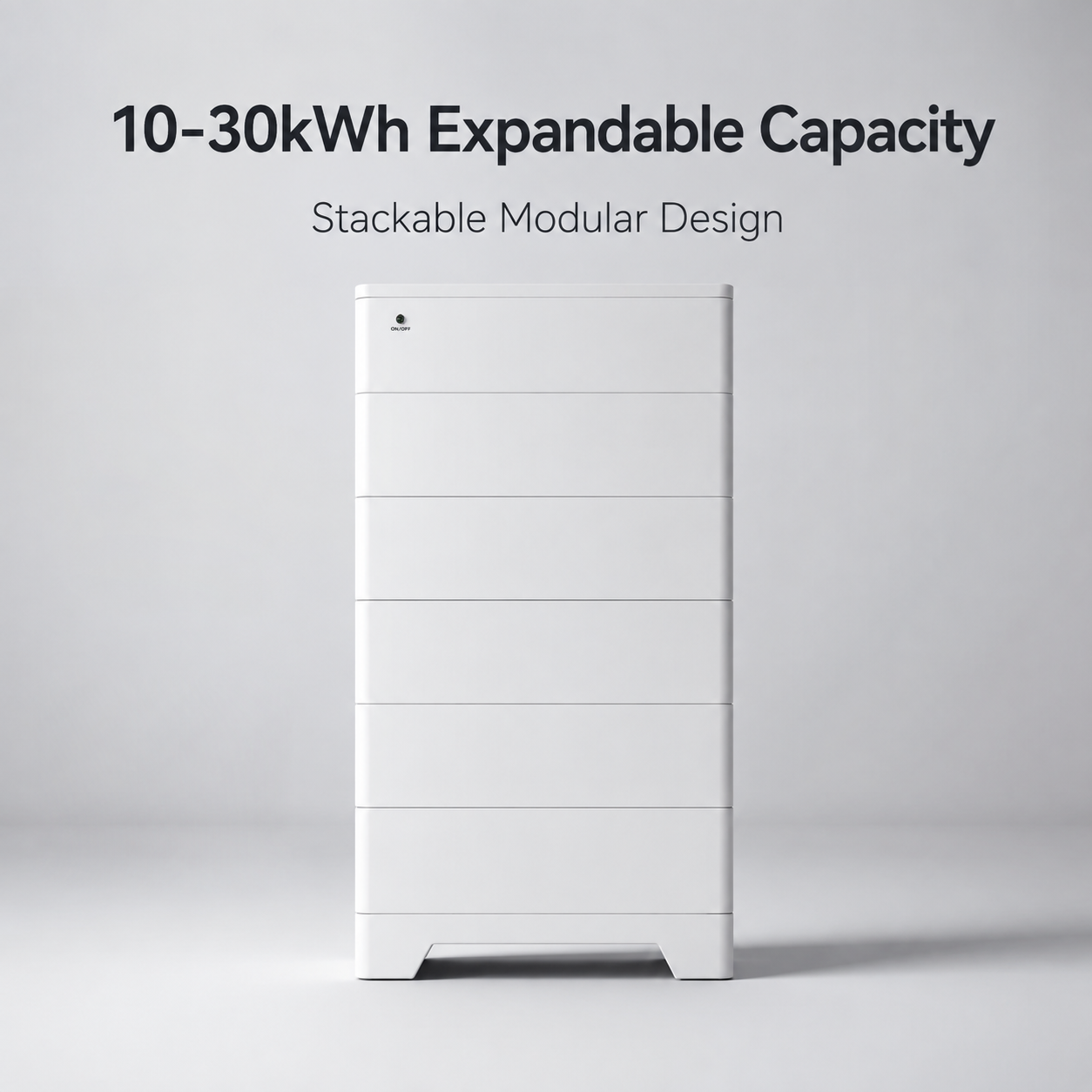

10~30kWh Modular Stackable High Voltage Solar Storage Battery
- IATF 16949
- ISO 9001
- ISO 14001
- ISO 50001
- ISO 45001
- UN38.3
1. Modular HV stackable LiFePO4 storage, 9.98~29.95kWh 2. 52Ah LFP cell with 90% DOD, stable 25A charge/discharge 3. Master CAN-BMS with comprehensive safety protection 4. IP54 dust & splash-proof cabinet 5. Natural cooling, low operation cost 6. ≥8000 cycle life, wide temperature adaptability 7. 10-year warranty, complete global certifications 8. For residential PV & small commercial energy storage
Specifications
MODELIVT5kWh-02-A
Component(2~6)*Modules
Total Energy (kWh)9.98~29.95
Usable Energy (kWh)9.38~28.15
Nominal Voltage (Vdc)192~576
Voltage Range (Vd.c)168～648
Rated Capacity (Ah)52
Recommended Charge Current (A)25
Recommended Discharge Current (A)25
Recommended DOD0.9
Dimensions (Width × Height × Depth) (mm)620*610*360
Weight (kg)103.5~273.5
BMS FunctionOvervoltage/overcurrent protection / Short-circuit protection; Low-voltage protection / Overtemperature protection / Battery balancing
CommunicationCAN
Operating Temperature (Charge)0℃~55℃(32°F～131°F)
Operating Temperature (Discharge)-20℃~55℃(-4°F～131°F)
Storage Temperature-20℃~55℃(-4°F～131°F)
IP RatingIP54
Installation TypeStackable
Cooling TypeNatural
Operating EnvironmentIndoor (5% to 95% relative humidity) non-condensing
Altitude≤2000 m
Warranty10 years
Service LifeMore than 15 years (25℃/77F)
Cycle Life≥8000@25℃
CertificationCE/Cell UL 1973
Transportation CertificationUN38.3/MSDS/IEC62619
OEMSupport
Sample OrderSupport
Minimum Order Quantity20
Delivery Time15 days
Key Features
This is an IP54 modular stackable high voltage LiFePO4 energy storage system, configurable with 2–6 modules, covering capacity from 9.98kWh to 29.95kWh.
Equipped with 52Ah lithium iron phosphate cells supporting 90% DOD and stable 25A charge & discharge to maximize available power for households.

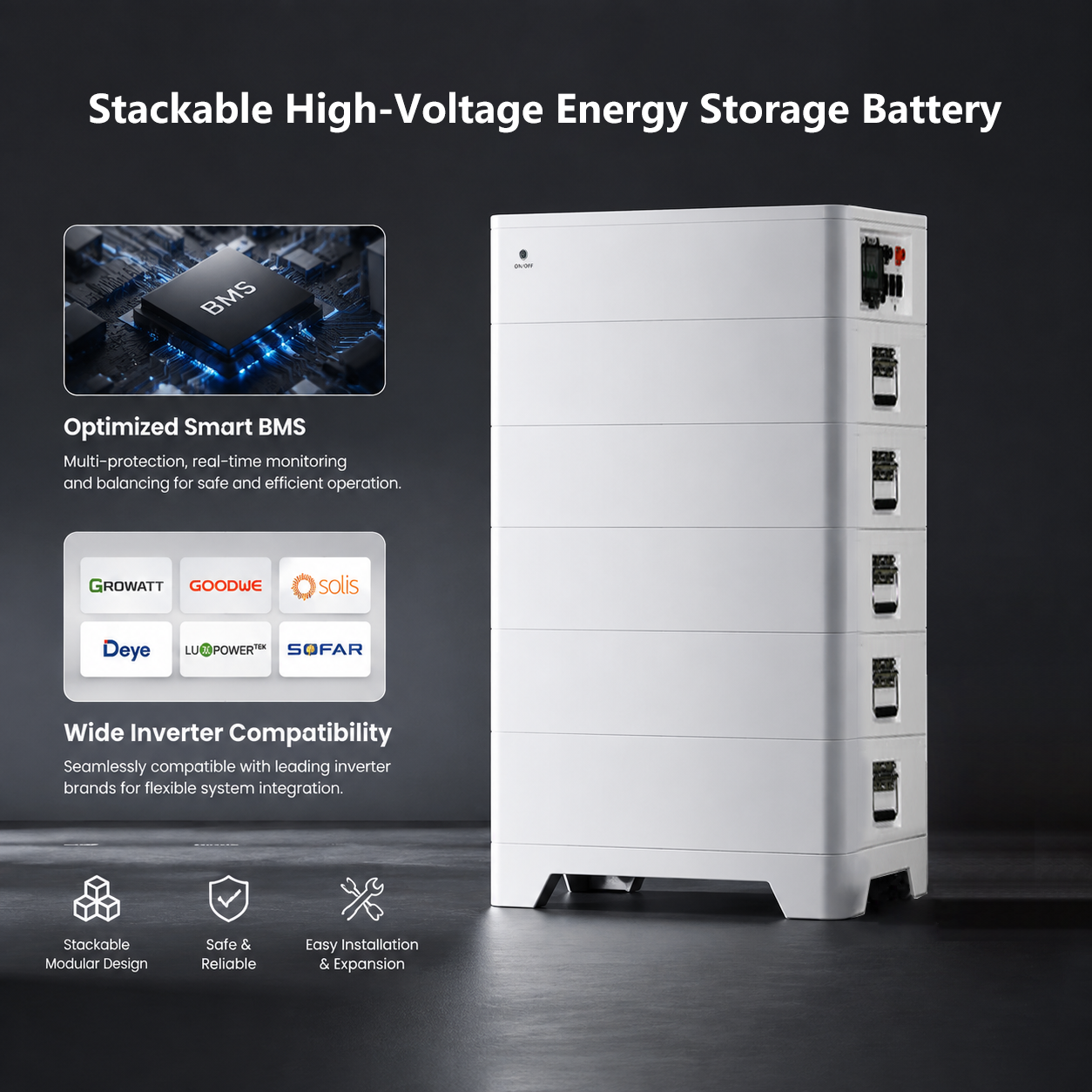

Adopts master CAN-BMS with comprehensive safety protection and cell balancing to realize unified monitoring of all stacked battery modules.

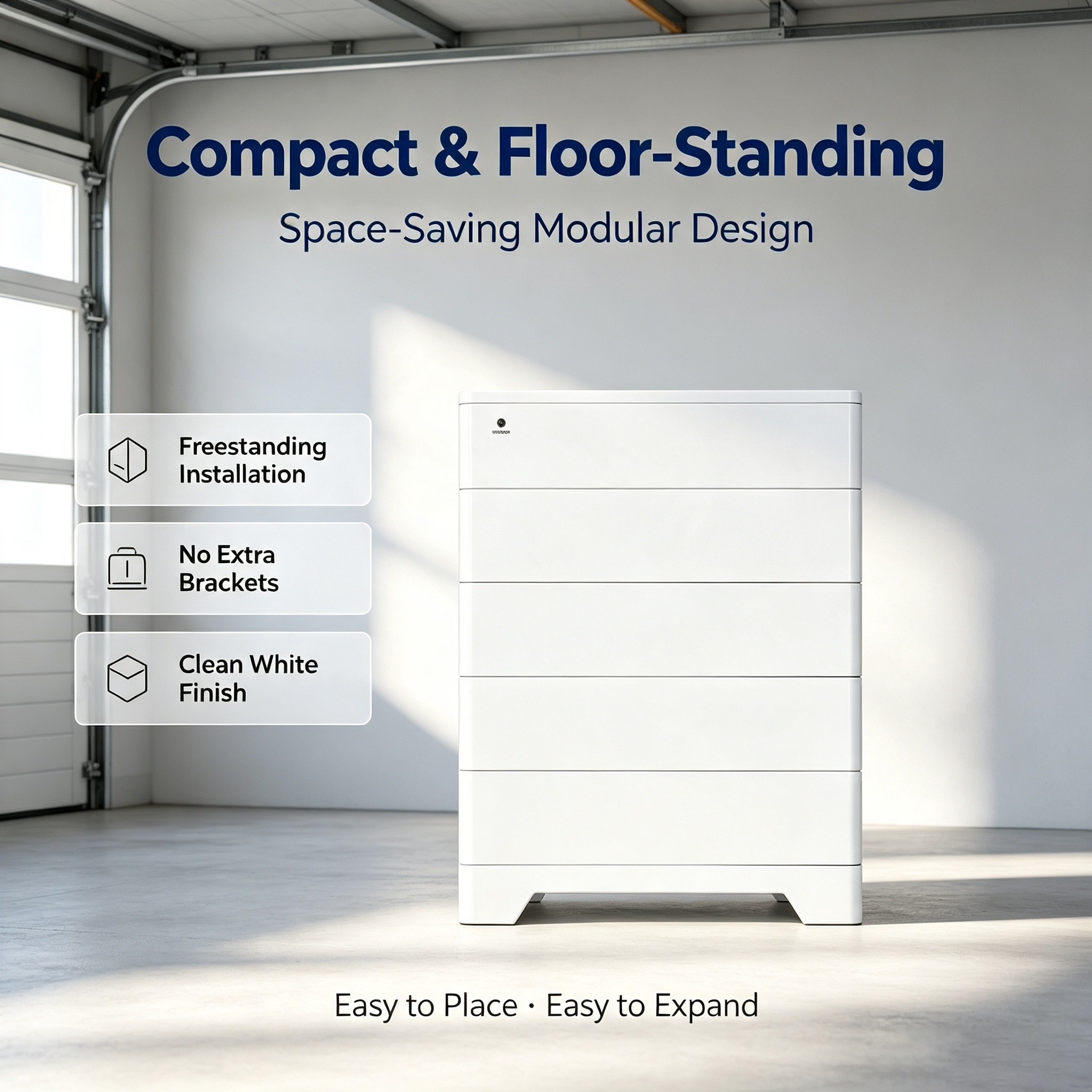

IP54 dust and splash-proof housing allows installation in garages and semi-enclosed rooms for residential and small store energy storage.
Natural cooling design eliminates extra cooling equipment, reducing long-term operation and maintenance investment.
Features ≥8000 cycle life, wide temperature operation, 10-year warranty and complete international safety certifications.

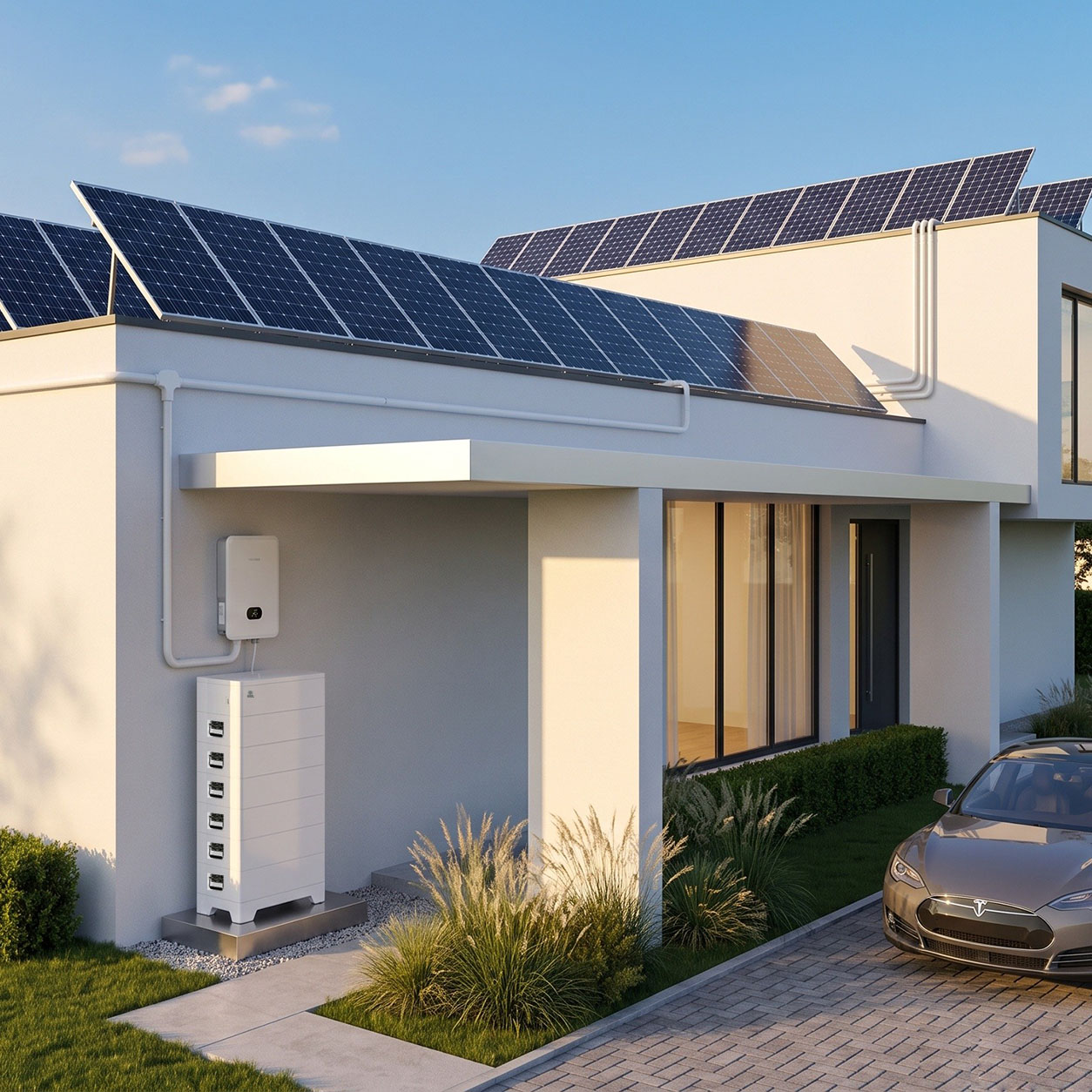

Suitable for residential PV self-consumption, home emergency backup power and light commercial solar storage; OEM and sample orders are available.
Product Description

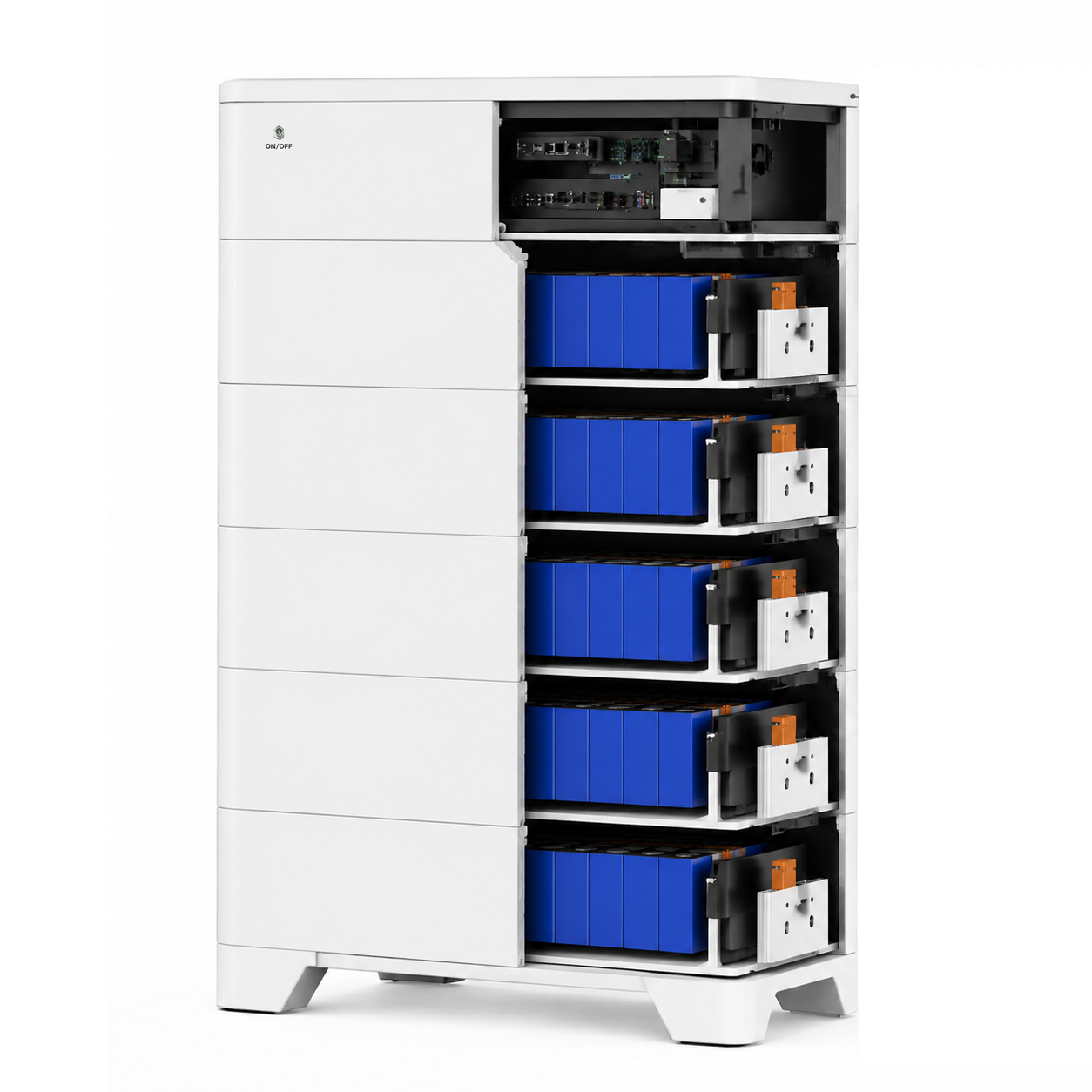

- Modular High-Voltage Stackable Design
Supports 2–6 modules stacked in series, capacity 9.98~29.95kWh, voltage 168V~648V, compatible with mainstream residential HV hybrid inverters - 52Ah LiFePO4 Cells with 90% DOD
Stable 25A charge & discharge current, high usable energy to maximize PV self-consumption and household backup benefits - Master CAN-BMS & Multi-Layer Safety Protection
Built-in overvoltage, overcurrent, short-circuit, undervoltage & overtemperature protection with cell balancing; CAN communication monitors all stacked modules synchronously - IP54 Dust Protection Rating
Dustproof and splash-proof, suitable for garages and semi-enclosed equipment rooms, ideal for homes and small retail shops - Natural Air Cooling, Low O&M Cost
No extra cooling air conditioning required; integrated cabinet enables fast on-site installation - Long Cycle Life & Wide Temperature Adaptability
≥8000 cycles @25℃; charging 0℃~55℃, discharging -20℃~55℃, applicable altitude up to 2000m - Long Warranty & Complete Global Certifications
10-year manufacturer warranty, service life ≥15 years @25℃; certified CE, UL1973, IEC62619, UN38.3, MSDS - Flexible Business & OEM Support
OEM labeling & sample orders supported, stable lead time for solar distributors & residential storage integrators

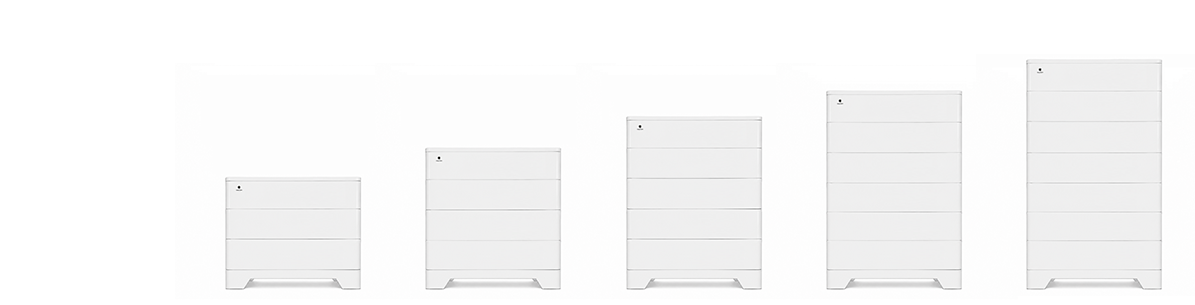

| Component | 2*Modules 1*Control Box 1*Base | 3*Modules 1*Control Box 1*Base | 4*Modules 1*Control Box 1*Base | 5*Modules 1*Control Box 1*Base | 6*Modules 1*Control Box 1*Base |
| Total Energy (kWh) | 9.98 | 14.97 | 19.97 | 24.96 | 29.95 |
| Usable Energy (kWh) | 9.38 | 14.07 | 18.77 | 23.46 | 28.15 |
| Nominal Voltage (Vdc) | 192 | 288 | 384 | 480 | 576 |
| Voltage Range (Vd.c) | 168～216 | 252～324 | 336～432 | 420～540 | 504～648 |
| Rated Capacity (Ah) | 52 | ||||
| Recommended Charge Current (A) | 25 | ||||
| Recommended Discharge Current (A) | 25 | ||||
| Recommended DOD | 90% | ||||
| Dimensions (Width × Height × Depth) (mm) | 620*610*360 | 620*780*360 | 620*950*360 | 620*1120*360 | 620*1290*360 |
| Weight (kg) | 103.5 | 146 | 188.5 | 231 | 273.5 |
