51.2V100Ah*3 Stackable Floor-standing All-in-One Home Energy Storage System,OEM ODM

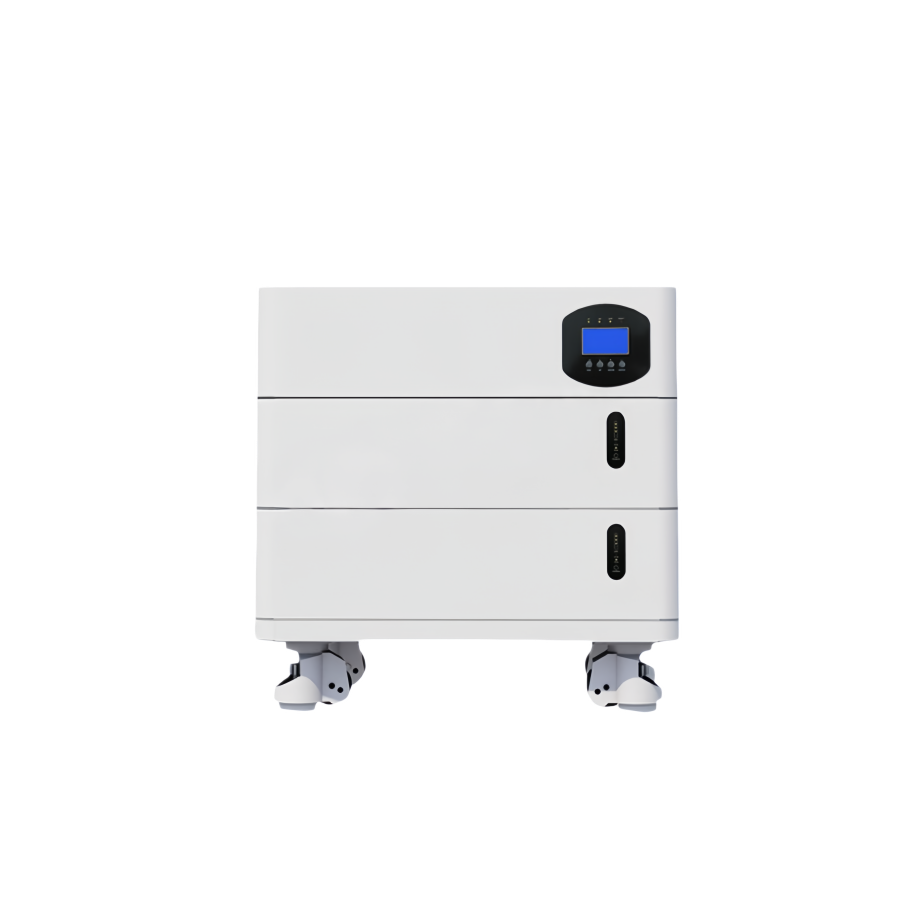

IVT15360WH-01-A Stackable Floor-standing All-in-One Home Energy Storage System

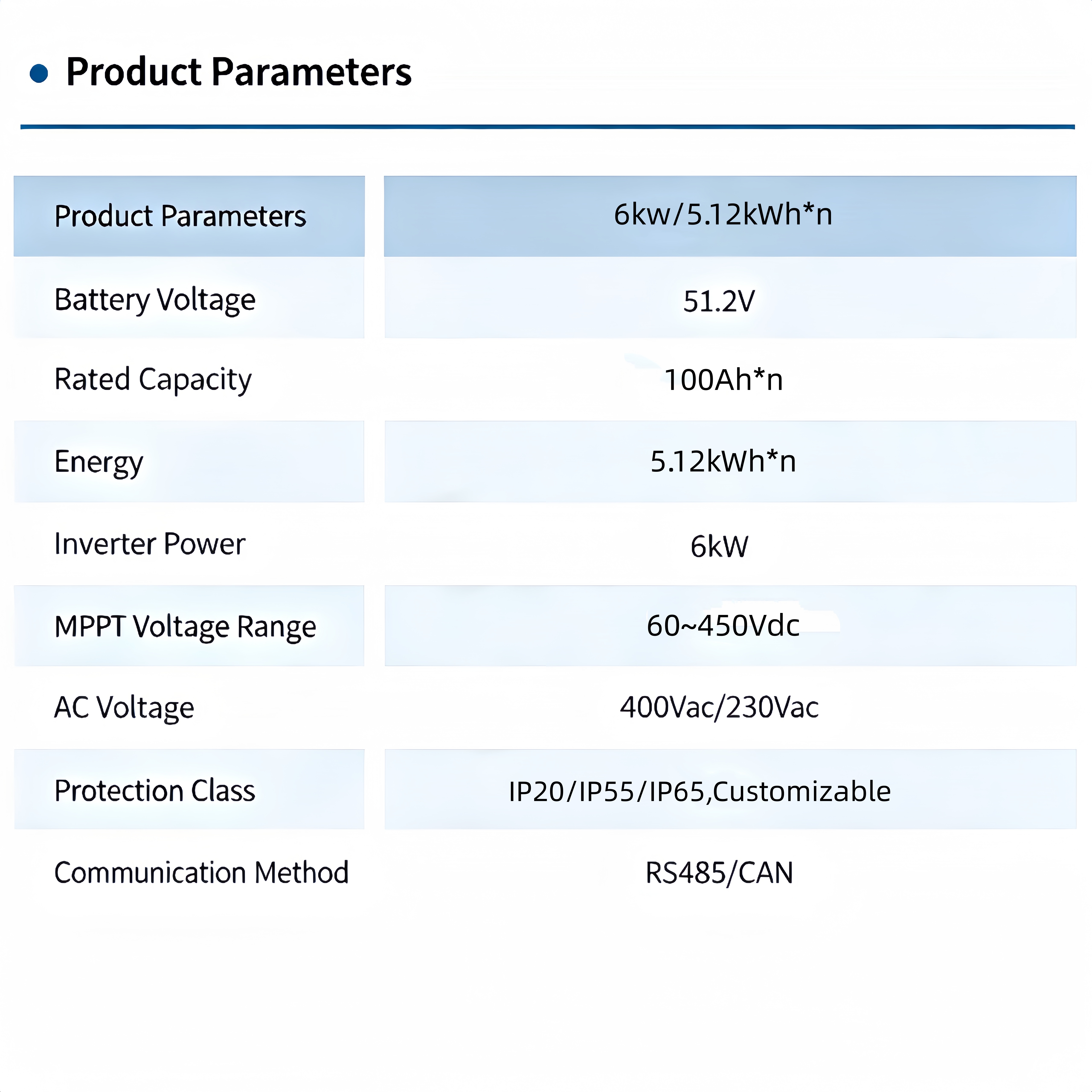

This integrated household energy storage device is made of metal housing and grade A lithium iron phosphate cells, configured as 51.2V 100Ah per module with scalable capacity of 5.12kWh×n via stacking.

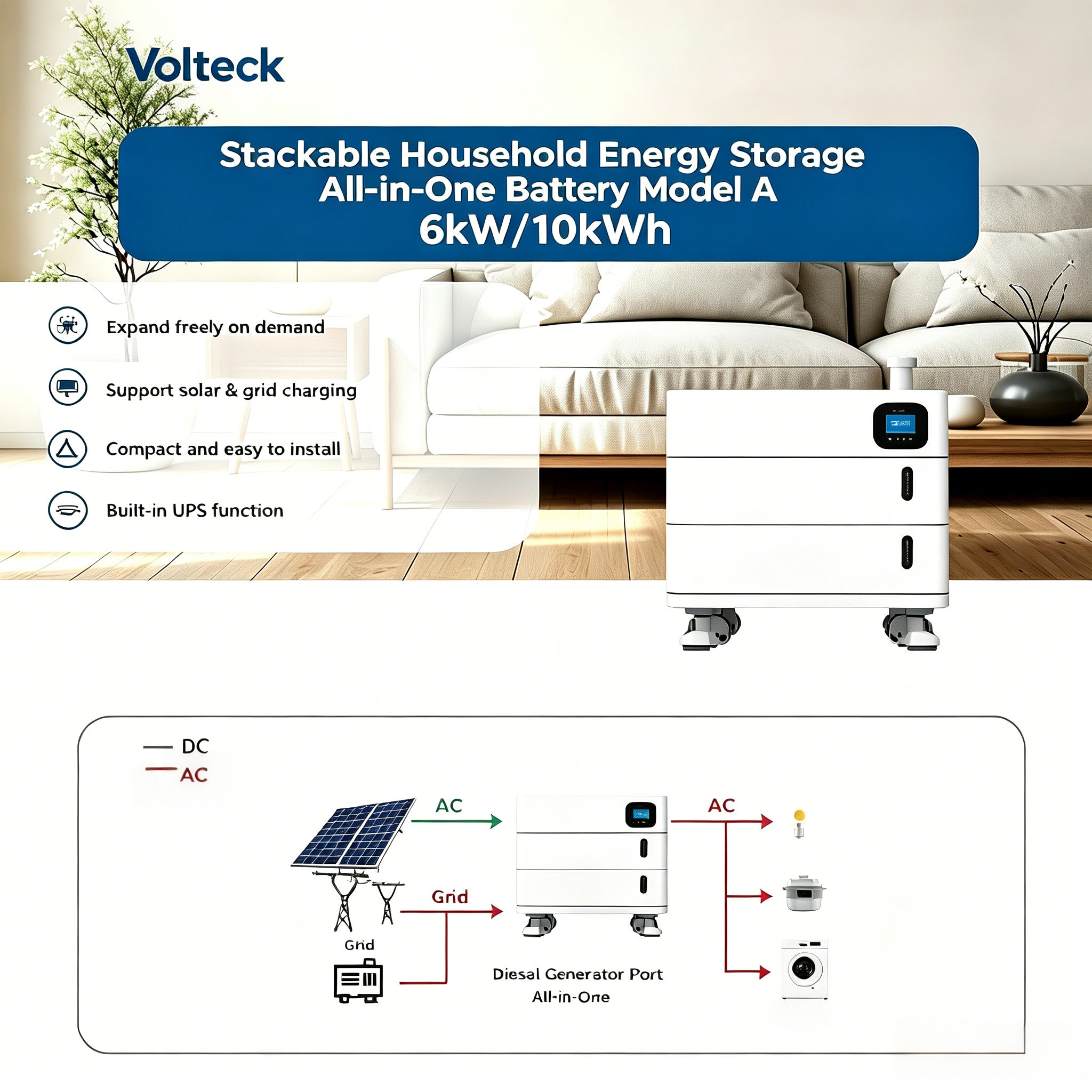

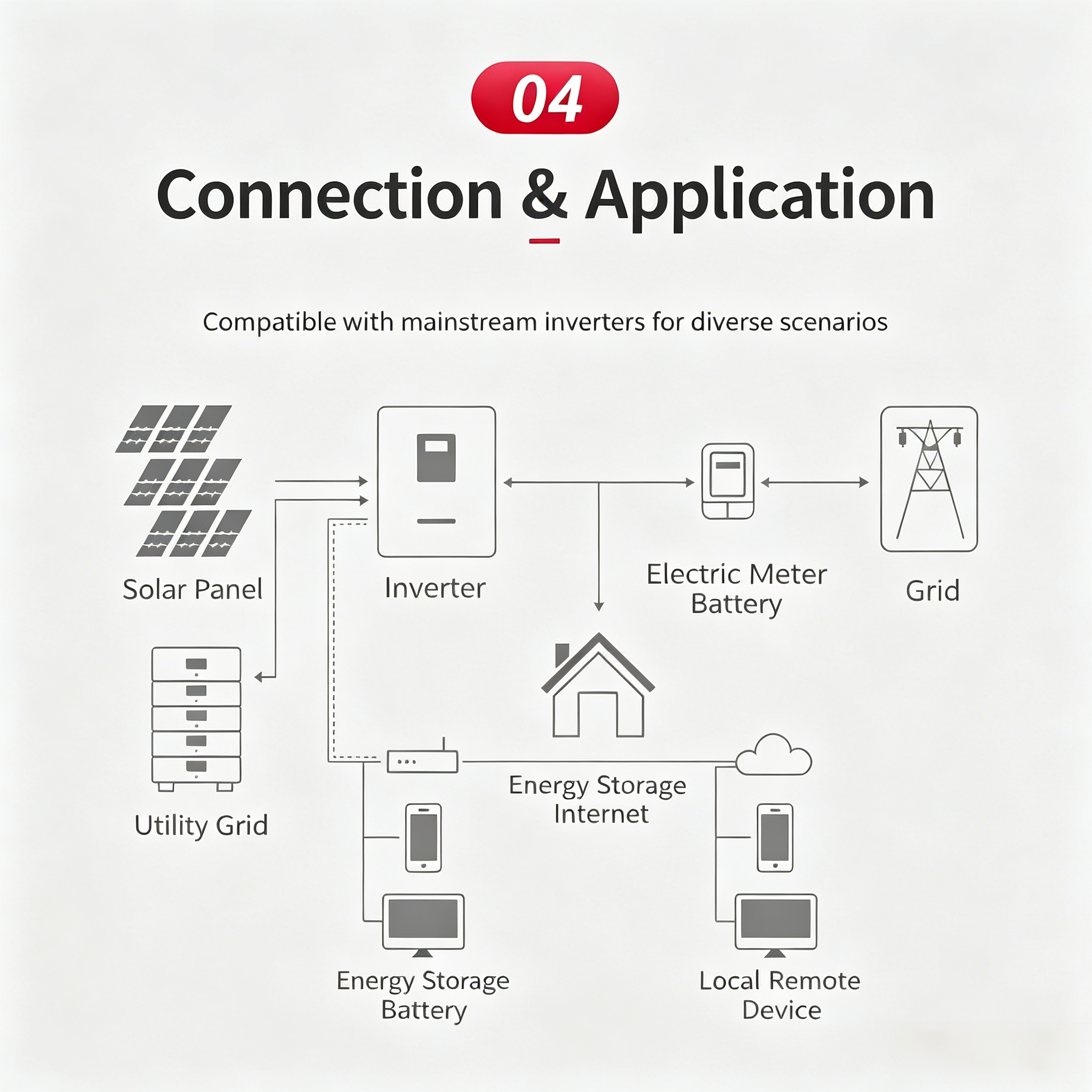

It is integrated with a 6kW hybrid inverter and wide MPPT voltage range 60~450Vdc, compatible with most mainstream solar panels. The unit supports both solar PV and utility grid charging, and comes with UPS uninterrupted power supply for seamless switch during blackouts. Communication ports RS485 and CAN are reserved for intelligent monitoring linkage. Protection class can be customized to IP20 for indoor dry space, IP55 for semi-outdoor sheltered area or IP65 for open-air harsh environment.

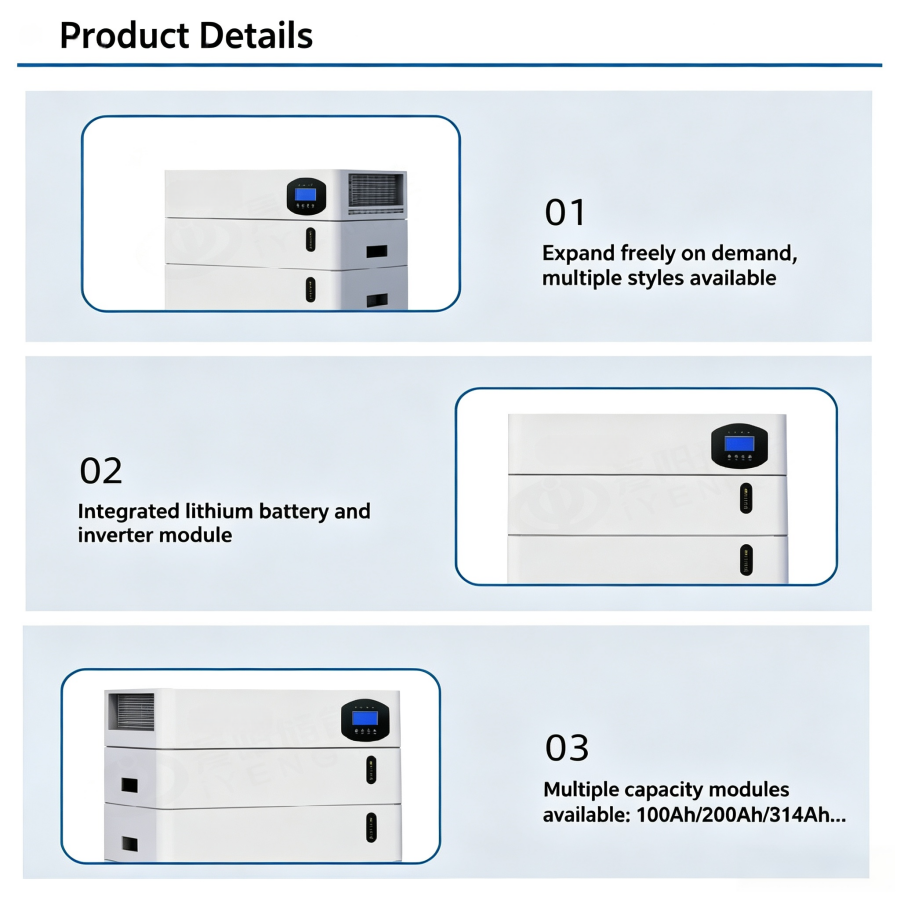

With vertical floor-standing stackable design, the system features simple plug-and-play installation without complicated wiring, easy to maintain and flexible to expand capacity according to household power demand. Built-in complete BMS protection ensures safe and stable long-term operation. Widely applied to residential photovoltaic energy storage, emergency backup power, peak-valley tariff cost reduction, off-grid villa & rural house power supply, RV camping power and small commercial standby power. Our standard lead time is 15 days with complete after-sales technical support.
