Home Products Split-type BESS & Accessories5.12kWh Plug-and-Play Rack Mounted LFP Storage Battery

5.12kWh

Total Energy

4.81kWh

Useable Energy

51.2V

Nominal Voltage

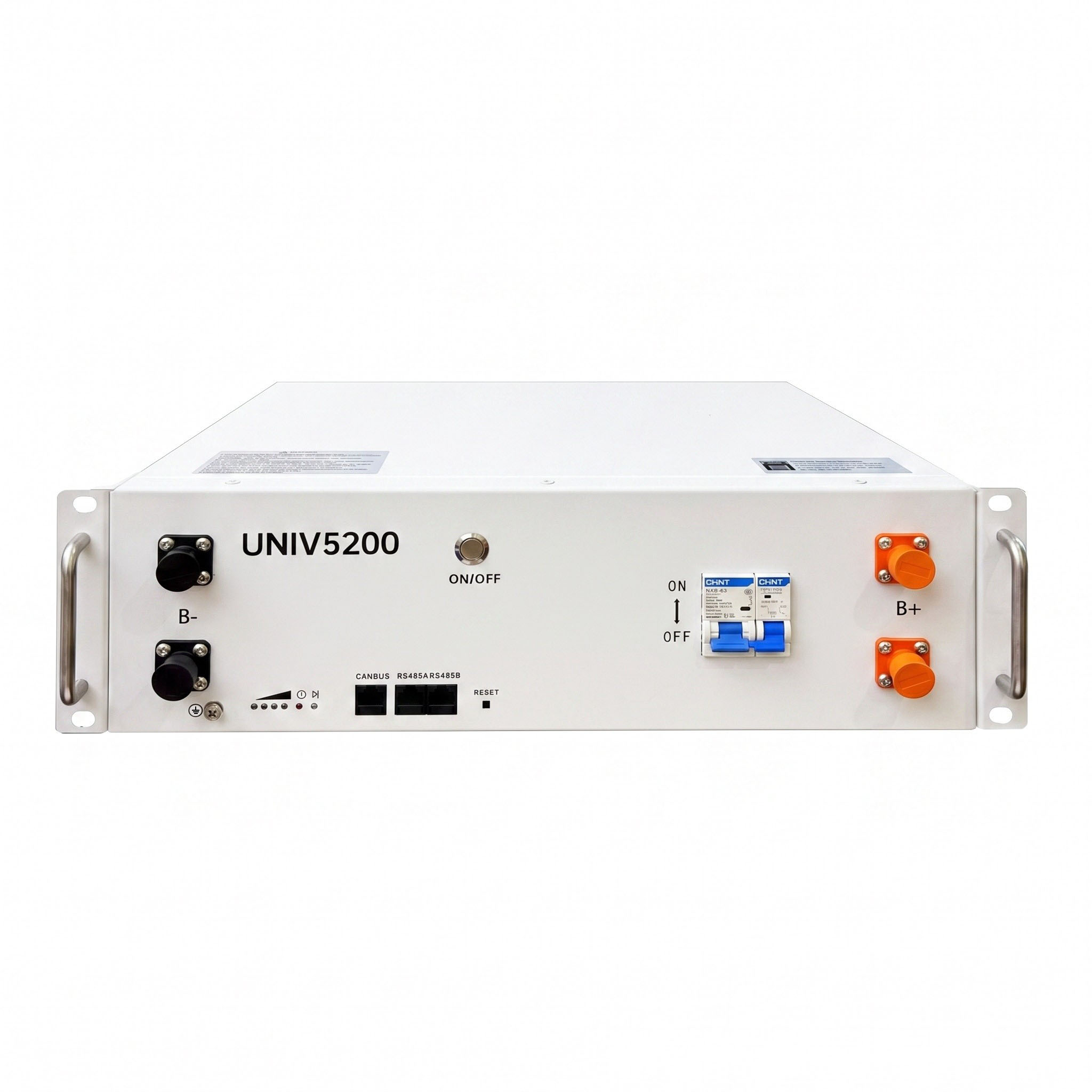

5.12kWh Plug-and-Play Rack Mounted LFP Storage Battery

IATF 16949
ISO 9001
ISO 14001
ISO 50001
ISO 45001
UN38.3

1. 51.2V, 5.12kWh rack-mounted LiFePO4 energy storage battery 2. 90% DOD, max. 20 units parallel connection, built-in aerosol fire protection 3. Plug-and-play design, compatible with mainstream inverters for residential PV & backup power 4. OEM & ODM available for global distributors and system integrators

Specifications

ModelIVT5200Wh-01-A

NameRack-Mounted Energy Storage System

Trade MarkIVOLTECK

OriginChina

Battery TypeLiFePO₄ (LFP)

Total Energy(kWh)5.12

Useable Energy(kWh)4.81

Nominal Voltage (Vdc)51.2

Voltage Range(Vdc)44.8～57.6

Rated Capacity(Ah)100

Recommend Charge Current(A)50

Recommend Discharge Current(A)50

Max. Charge Current(A)80

Max. Discharge Current(A)80

Recommend Using DOD0.9

ScalabilityMax 20 in Parallel

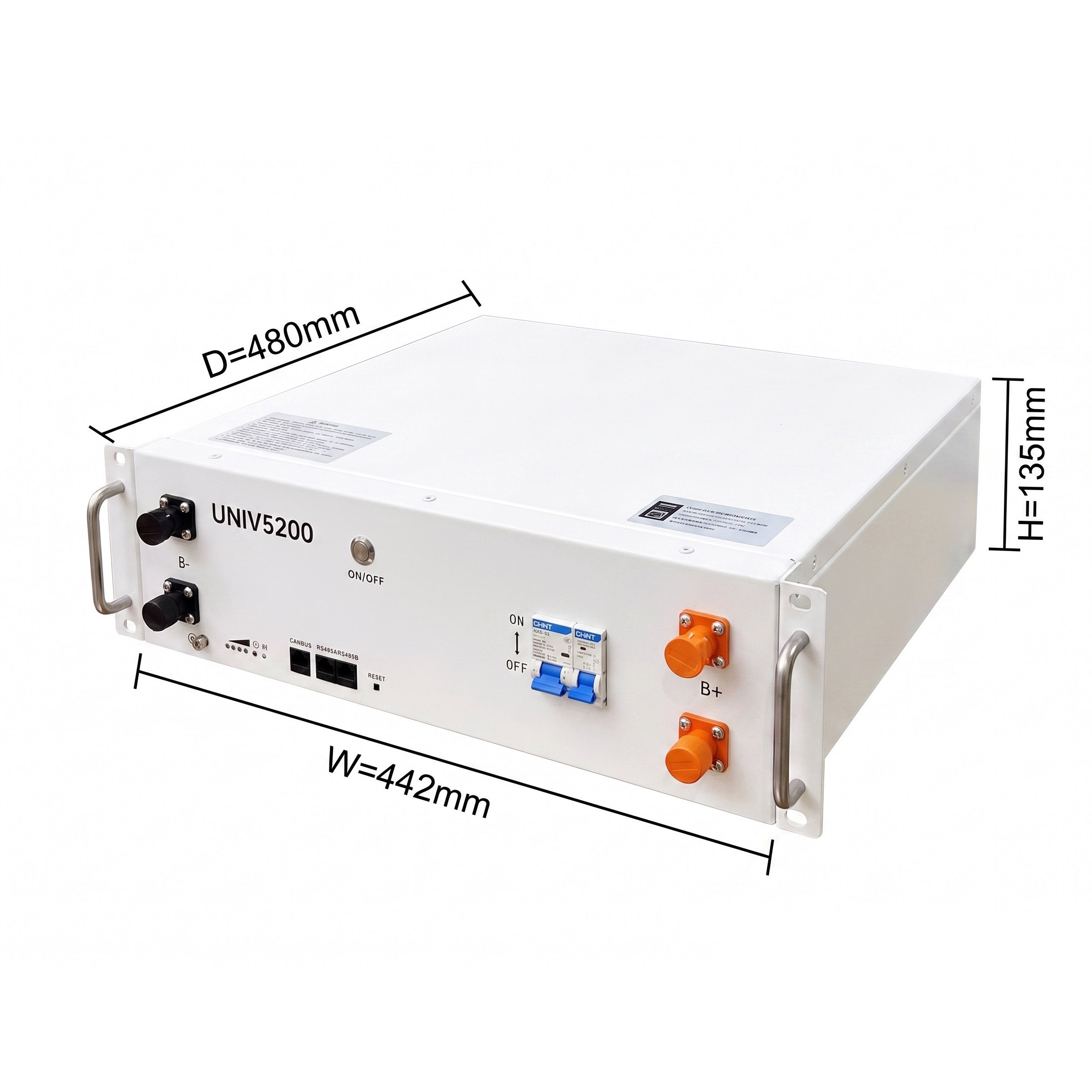

Dimension(W*H*D)(mm)442*135*480

Weight(KG )44

User InterfaceAPP

CommunicationCAN/RS485

BMS FunctionOvervoltage/Overcurrent protection, Short circuit protection, Low voltage protection, Overtemperature protection, Battery balancing

Compatible InvertersSolis/GoodWe/Growatt/Pylontech/SMA/LuxpowerTek/Deye/etc.

Cycle life≥6000 Cycles

Operating Temperature (Charge)0℃~55℃

Operating Temperature (Discharge)-20℃~55℃

Storage Temperature-20℃~55℃

IP RatingIP20

Installation TypeRack-Mounted+Plug and Play

Cooling TypeNatural

Fire Protection SystemBuilt-in aerosol fire extinguisher

Altitude≤2000 m

Warranty10 years

Service LifeMore than 15 years (25℃/77°F)

CertificationUN38.3/MSDS/IEC 62619/CE-EMC

OEMAvailable

Order of SampleAvailable

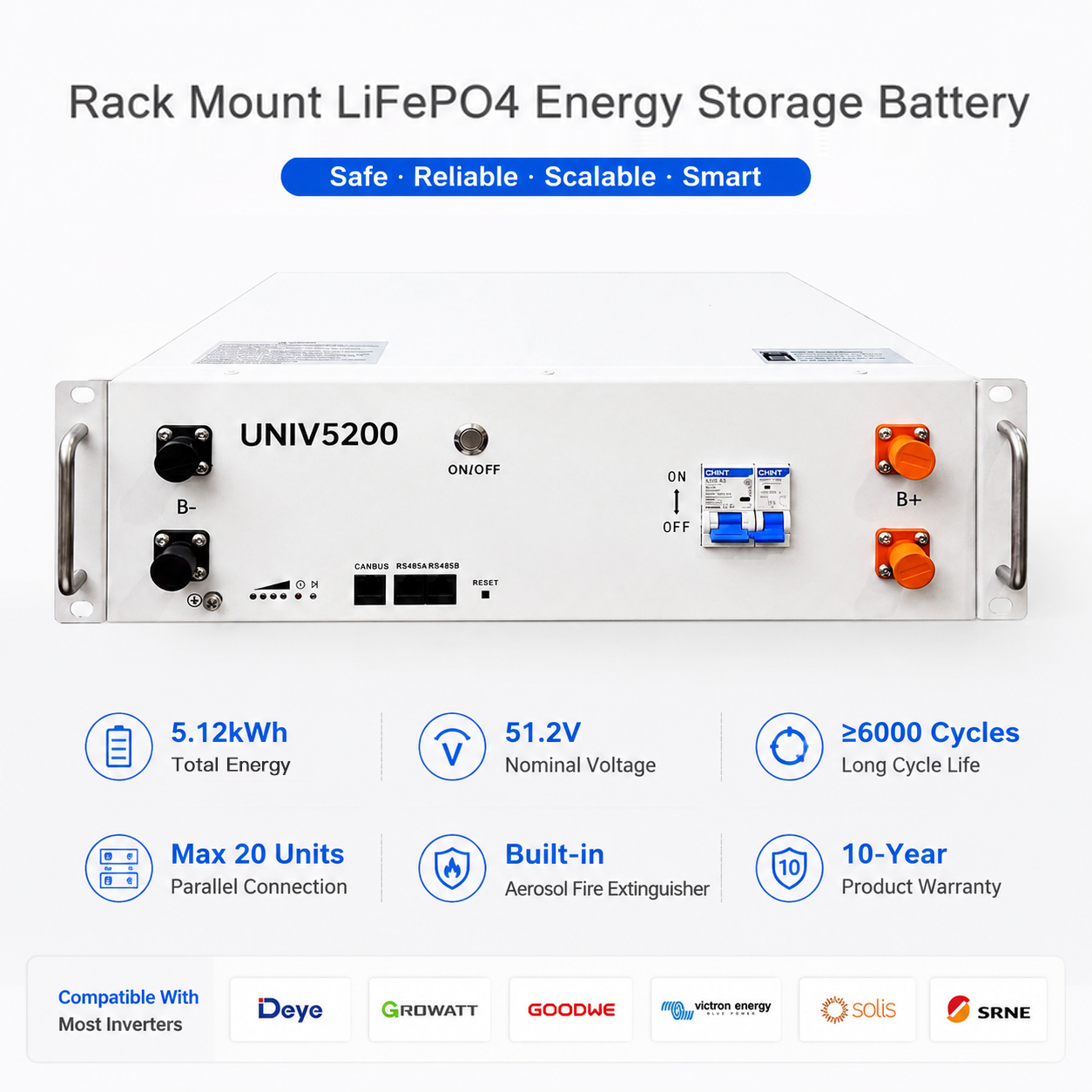

Key Features

5.12kWh | 51.2V LiFePO4, 90% DOD, ≥6000 charge cycles

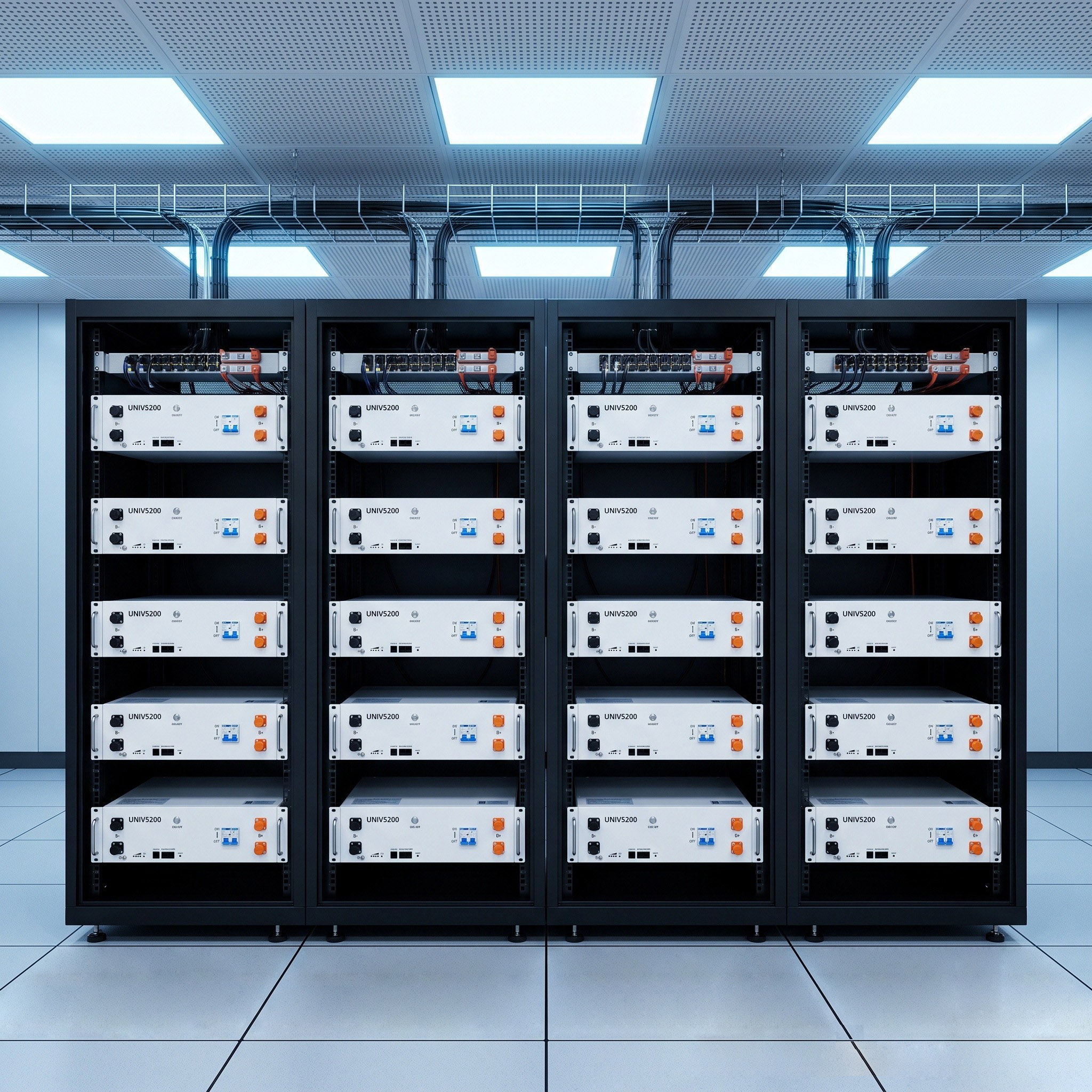

Support up to 20 units parallel for capacity expansion

Rack-mounted plug & play, lightweight 44kg, easy installation

Natural cooling, no extra cooling equipment required

Built-in aerosol fire suppression, comprehensive BMS protection

CAN & RS485 communication, APP remote monitoring

Compatible with GoodWe, Deye, SMA and other mainstream inverters

Product Description

Performance

5.12kWh total capacity, 51.2V LiFePO4 battery with 90% high DOD. Supports up to 20 units parallel expansion, ≥6000 cycles, service life over 15 years

Application Value

Rack-mounted plug-and-play design, suitable for residential solar storage and emergency backup power. Compatible with mainstream inverters: GoodWe, Deye, SMA

Appearance & Craft

Compact unit weighing only 44kg. Natural cooling design requires no additional cooling accessories, enabling simple rack installation

Safety & Intelligence

Full-featured BMS with multi-layer protection, built-in aerosol fire suppression device. Supports APP remote monitoring, CAN/RS485 communication interfaces. 10-year manufacturer warranty with complete international safety certifications
