16kWh rack-mounted LFP battery module equipped with a complete BMS protection system
- IATF 16949
- ISO 9001
- ISO 14001
- ISO 50001
- ISO 45001
- UN38.3
1. 16kWh rack-mounted LiFePO4 battery module, 15.11kWh usable energy at 90% DOD. Adopts 51.2V 314Ah LFP cells with 157A charge/discharge current. 2. Comprehensive protection BMS with cell balancing and CAN communication. 3. Standard rack design, air cooling, IP20 for indoor installation. 4. 10-year warranty, over 15 years service life at 25℃, full international certifications. 5. OEM labeling and sample orders available for global distributors and system integrators.
Specifications
Key Features
Product Description
1. 16kWh High-Capacity Rack-Mount Energy Storage

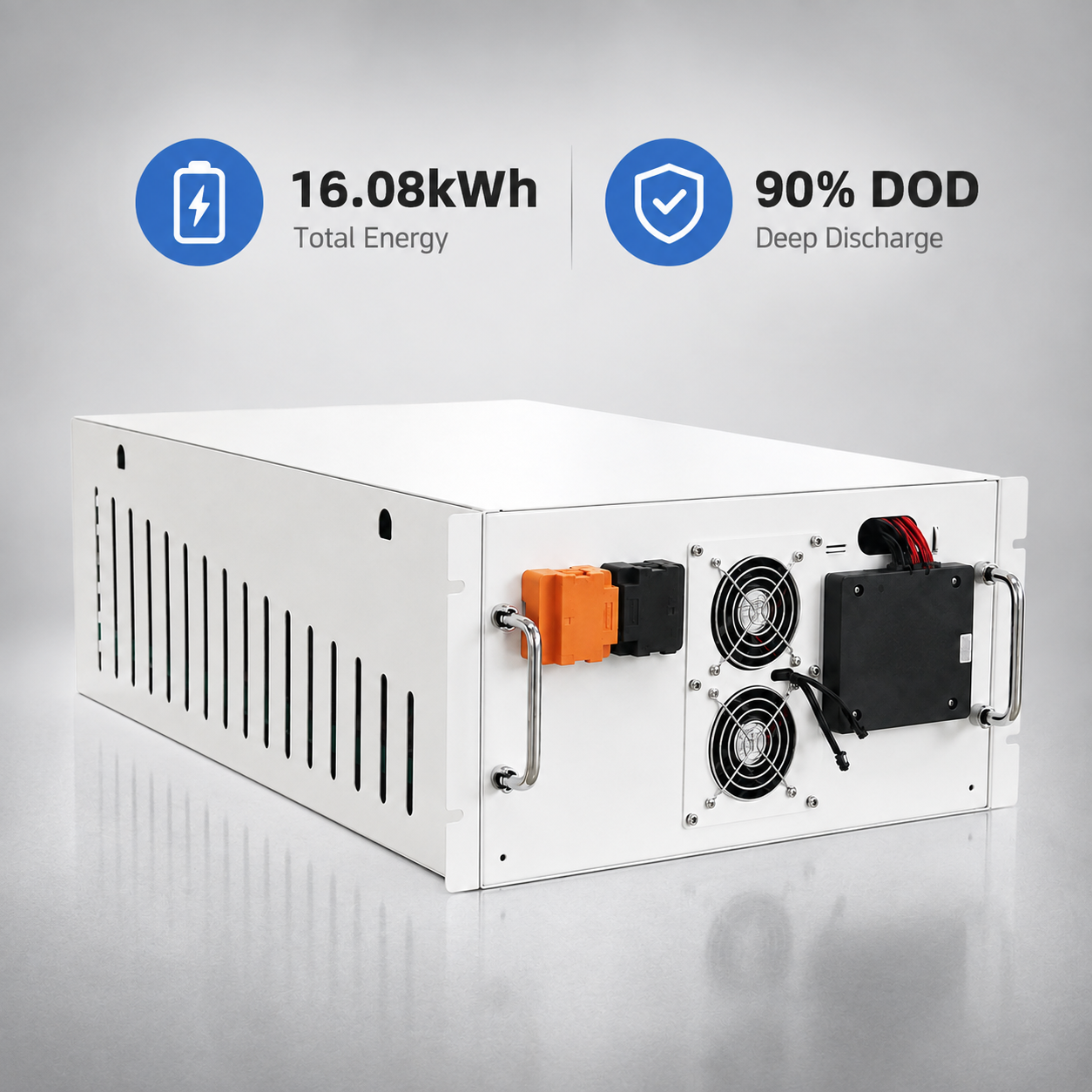

Rack-mounted single battery module with 16.08kWh total energy and 15.11kWh usable energy. Built with 51.2V 314Ah high-capacity LiFePO4 cells, 90% recommended DOD and 157A charge/discharge current for efficient stable output.
2. Full-Featured BMS with Multi-Layer Safety Protection
Built-in comprehensive intelligent BMS with overvoltage, overcurrent, short-circuit, undervoltage, over-temperature protection and cell balancing. CAN communication interface enables real-time battery status monitoring for safe system operation.
3. Standard Rack Design with Air Cooling

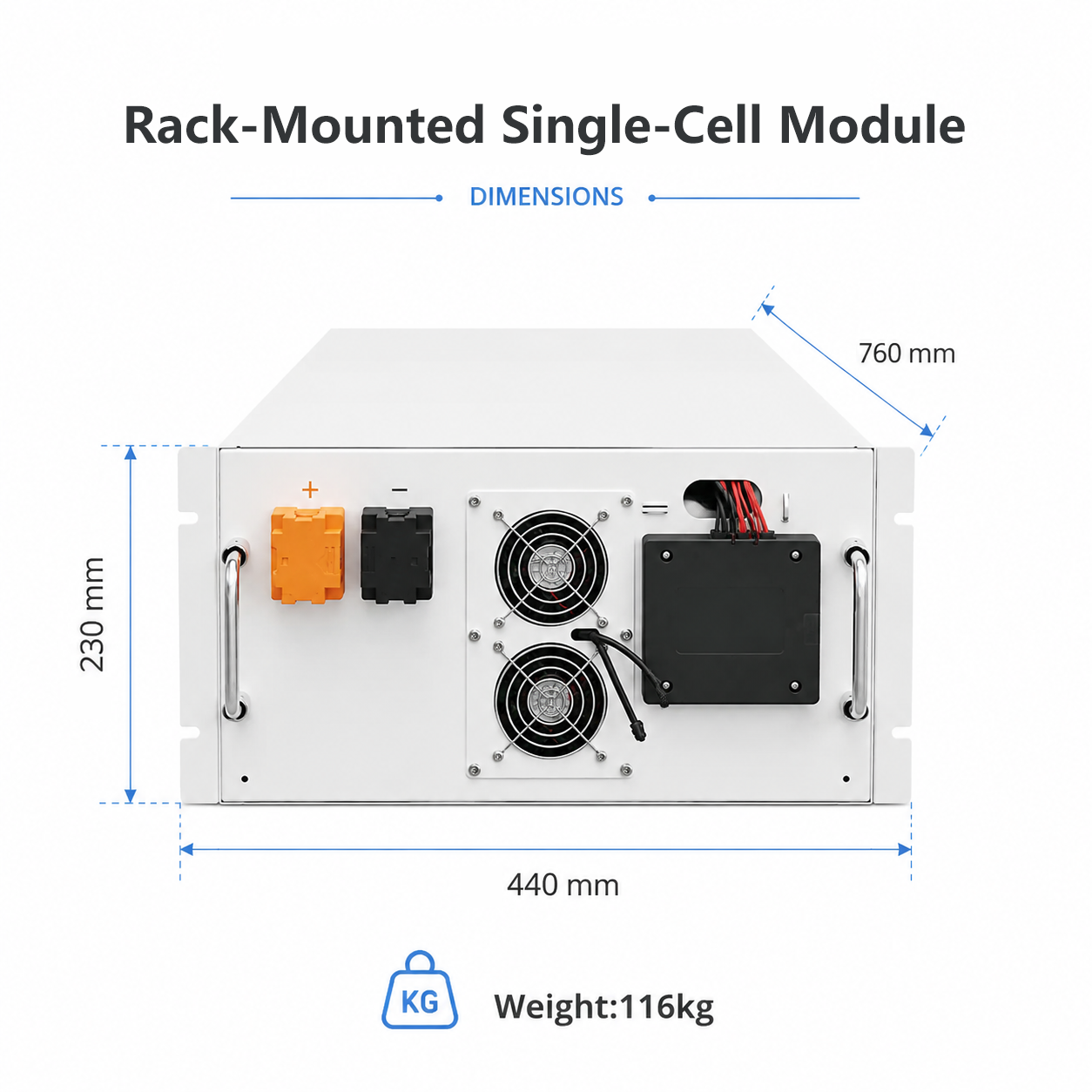

Standard rack-mounted installation structure, dimensions 440×230×760mm, weight 116kg. Adopts air cooling solution without extra heat dissipation equipment for easy cabinet integration.
4. Wide Temperature Range & Long Service Life
Charging temperature 0℃~55℃, discharging temperature -20℃~55℃. Operates indoors under 5%~95% relative humidity non-condensing environment, suitable for altitude up to 2000m. Service life exceeds 15 years at 25℃.
5. Complete Global Certifications & 10-Year Warranty
Safety certifications including CE, Cell UL1973, IEC62619, plus UN38.3 and MSDS transport certifications. Backed by 10-year official warranty, meeting overseas market access and project compliance requirements.
Customer Reviews (1)
Wide temperature range and 2000m altitude adaptability fits various site conditions. Full certifications plus 10‑year warranty is competitive for overseas projects.
