14.3kWh Home Energy Storage Vertical Cabinet With Lockable Casters Floor Mount No Wall Modification Garage Basement Solar Storage OEM ODM

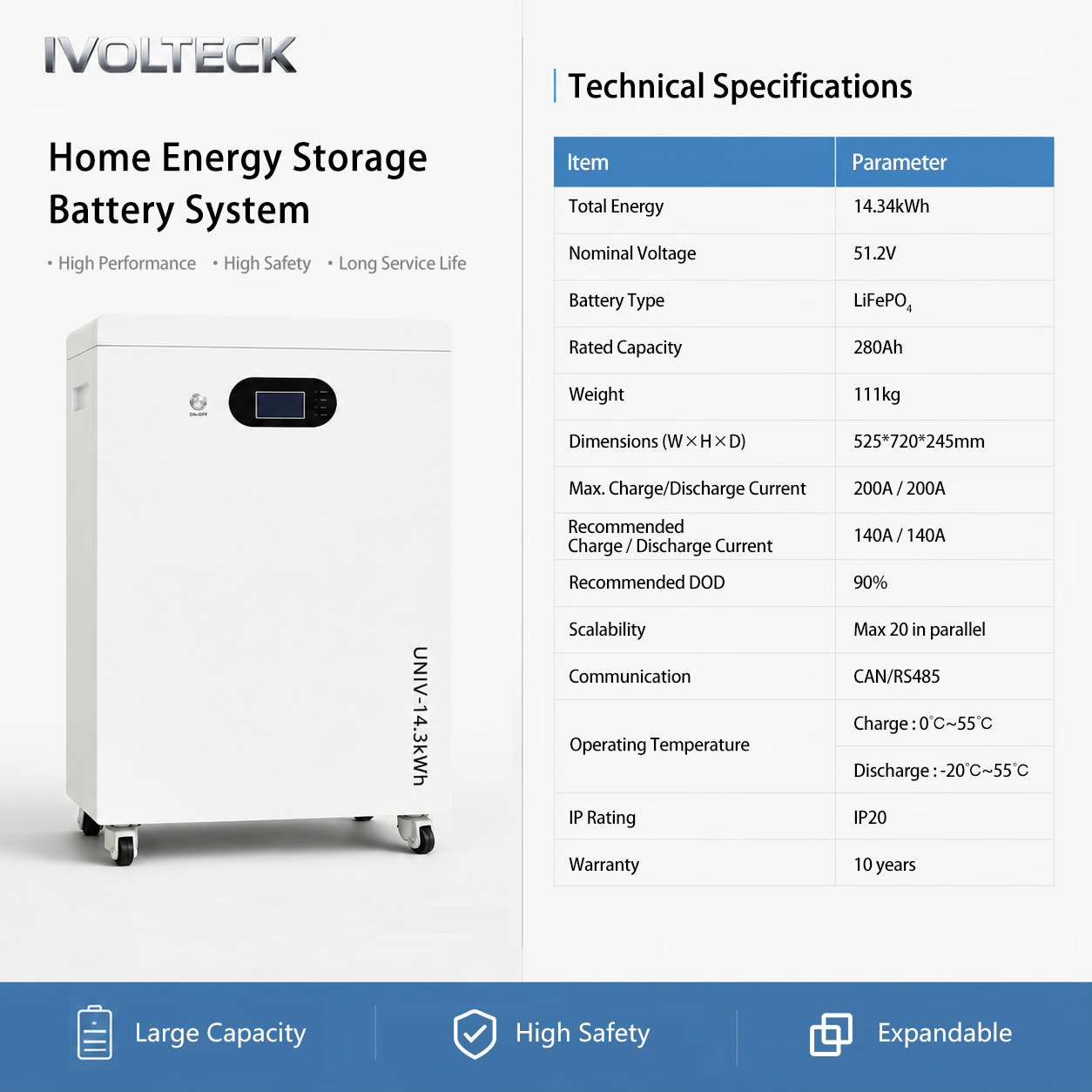

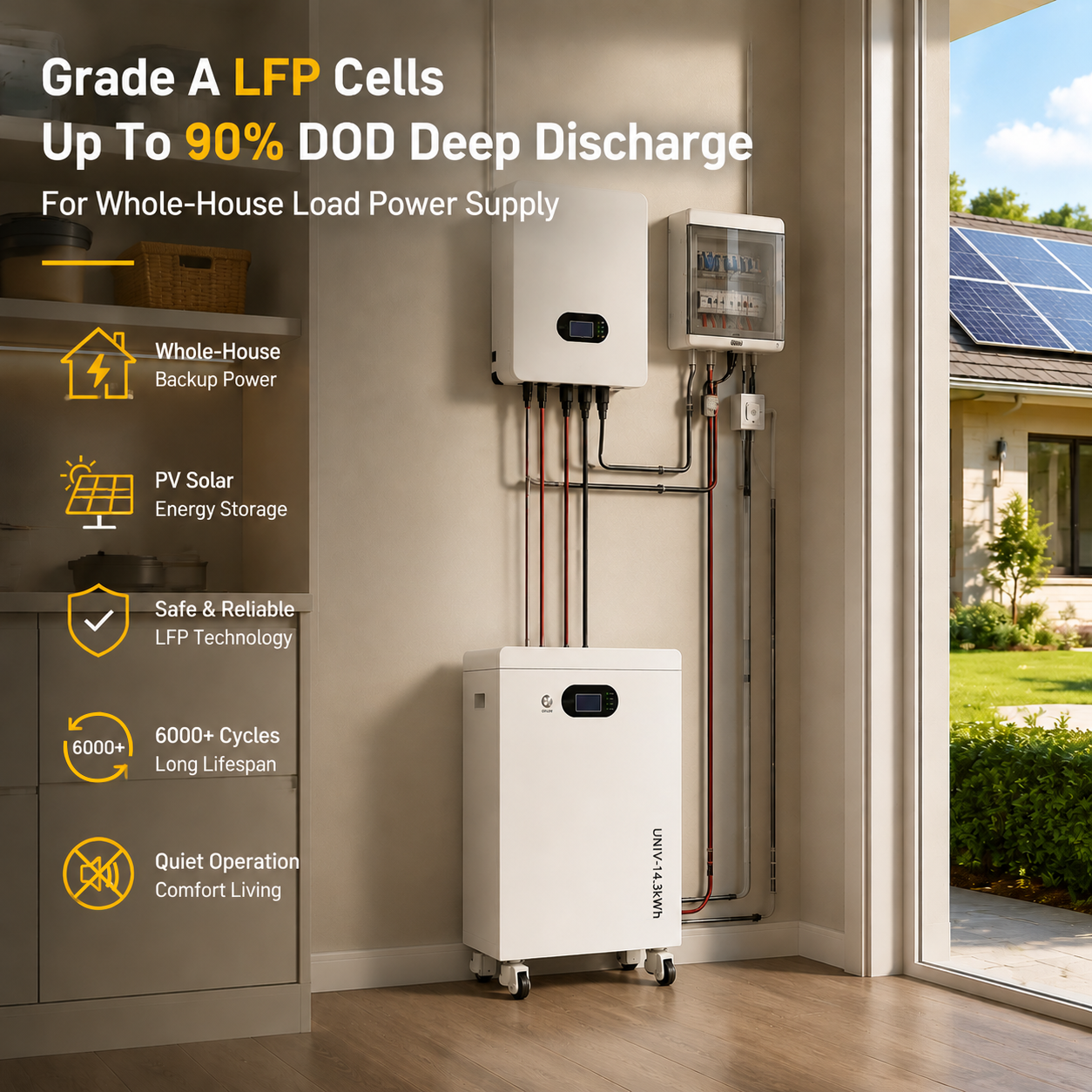

1. 14.34kWh Large Capacity Energy Storage, High Usable Capacity for Whole-House PV Power Supply

Adopting automotive-grade LiFePO4 cells, the battery reaches 14.34kWh total energy and 13.48kWh usable energy with 90% DOD deep discharge. It fully stores surplus solar power to reduce grid electricity expenses and provides long-duration emergency power supply for the whole house during power outages.

2. Max 200A High Current Charge & Discharge, Flexible Expansion with Up To 20 Units in Parallel

The maximum charge and discharge current hits 200A to maintain stable high-power output. The expandable design supports up to 20 units connected in parallel. Users can freely combine capacities to meet energy storage demands of large villas and small commercial solar systems.

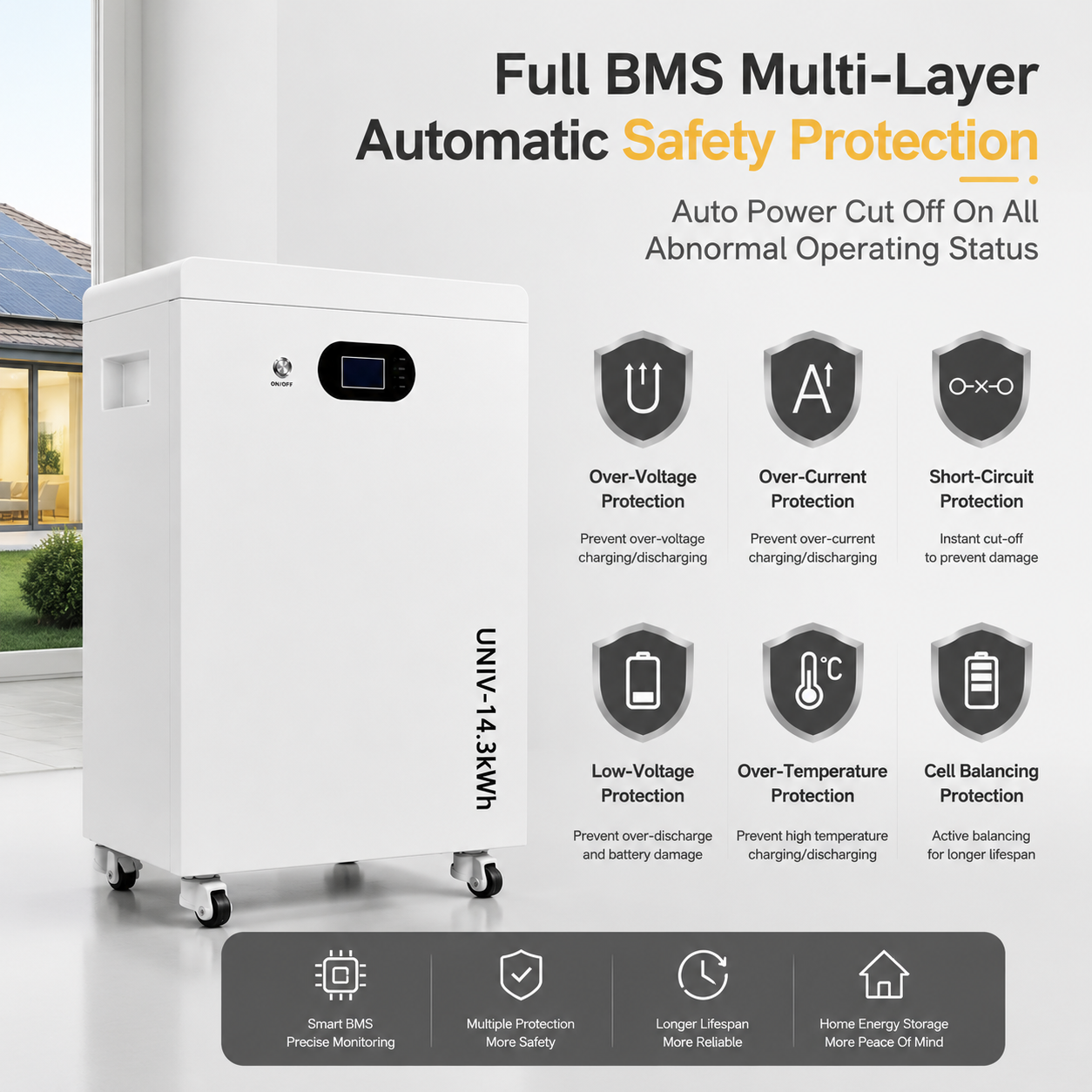

3. Full-Protection Intelligent BMS System, 15+ Years Lifespan with 10-Year Warranty

Built-in comprehensive BMS battery management system provides overvoltage, overcurrent, short-circuit, undervoltage, over-temperature protection and cell balance function. The service life exceeds 15 years under 25℃ working environment, backed by 10-year official warranty.

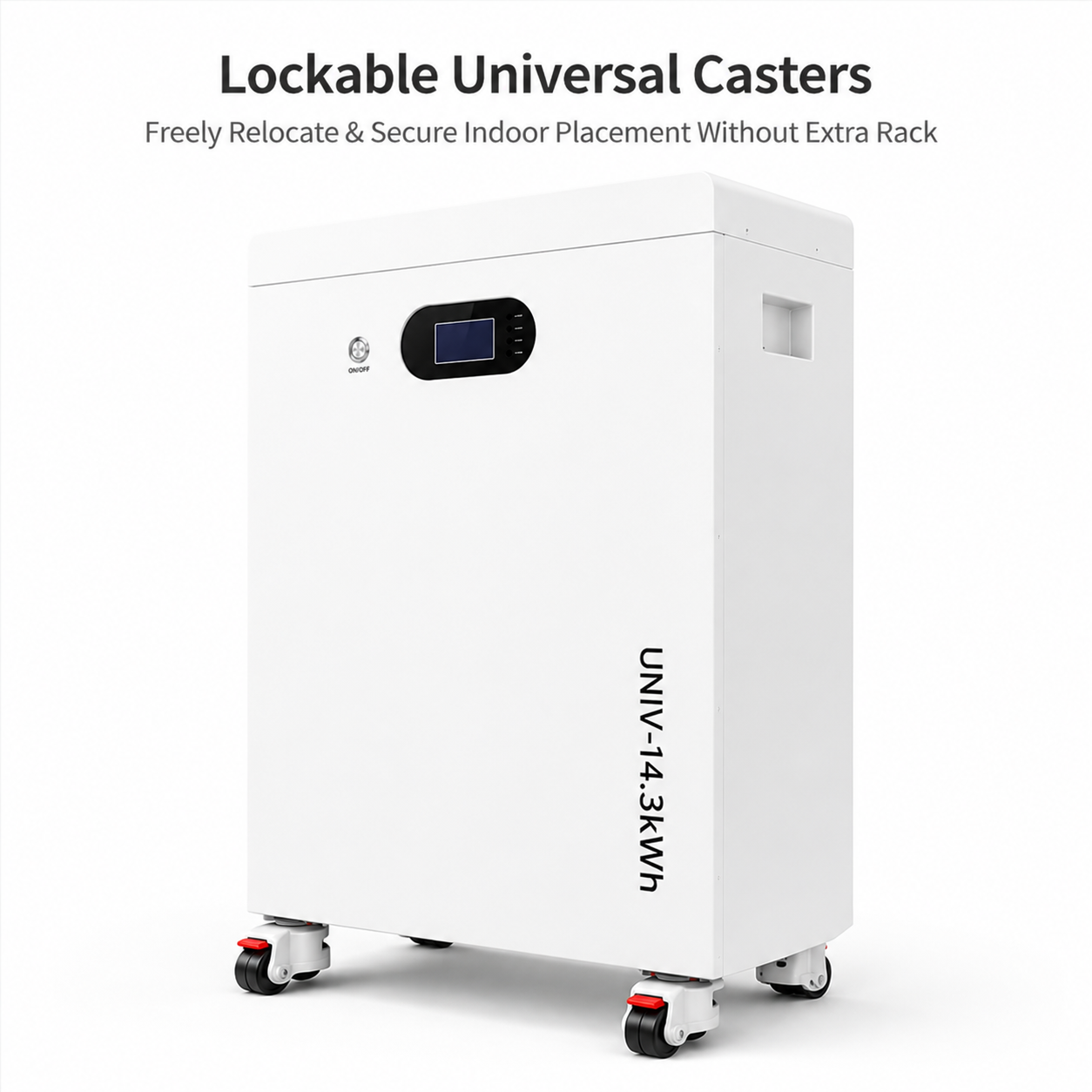

4. Vertical Cabinet with Lockable Universal Casters, Convenient Movement for Floor Placement

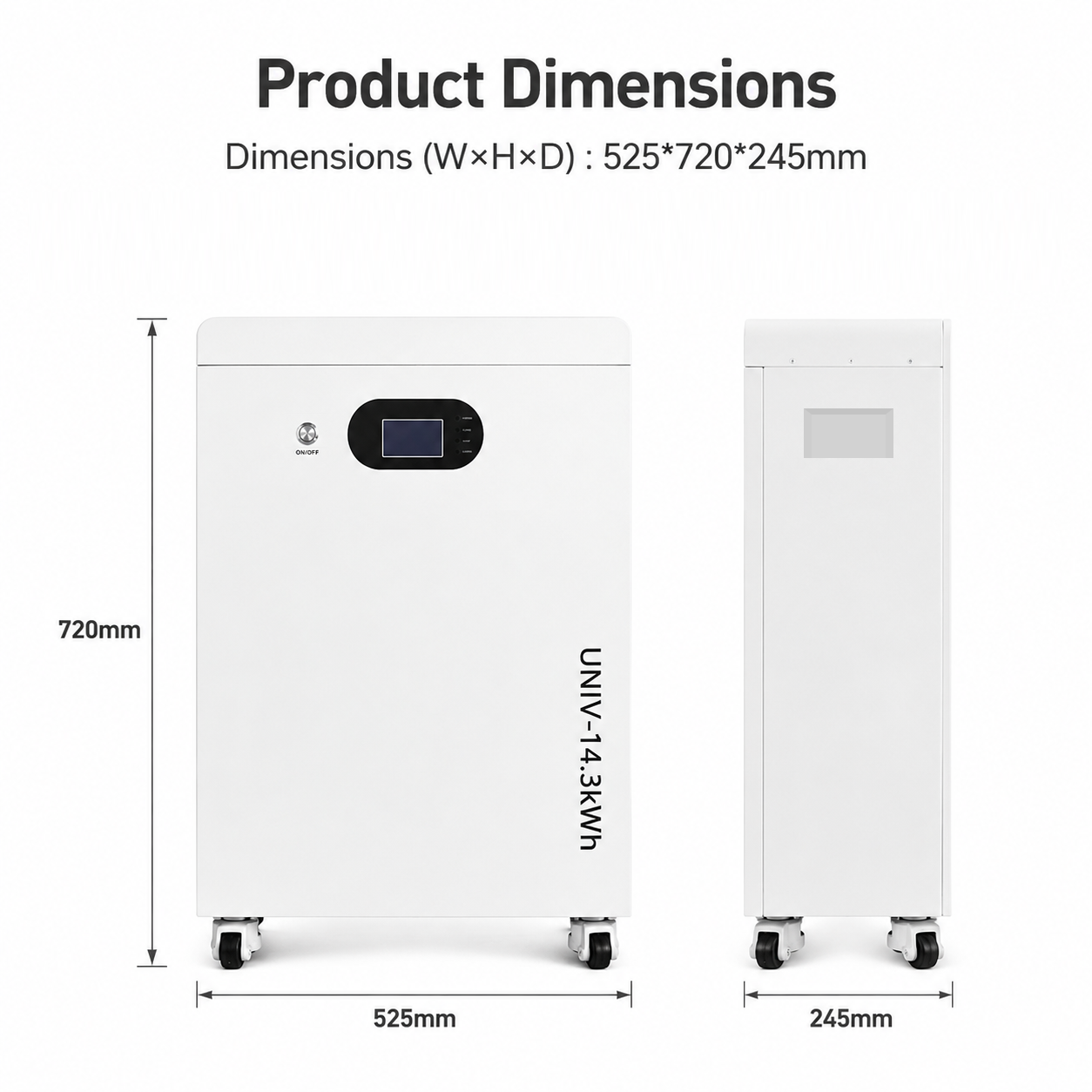

Vertical integrated cabinet fitted with lockable universal casters. Dimensions: 525720245mm, net weight 111kg. Floor-standing installation requires no wall modification. The unit can be moved freely and placed in garages, basements and equipment rooms.

5. Bluetooth LCD Touch Screen + Dual Communication Ports, Real-Time Remote Battery Monitoring

Equipped with button control LCD screen, travel protection and Bluetooth function. Matched with CAN/RS485 dual communication ports, it supports real-time check of battery voltage, power and remaining capacity, and connects smoothly with mainstream solar inverters to realize intelligent energy management.

6. Stable Operation in Wide Temperature Range, Complete International Safety & Shipping Certifications

Wide operating temperature range: 0℃~55℃ for charging, -20℃~55℃ for discharging. Certified with CE, UL1973, IEC62619, UN38.3 and MSDS. It operates reliably indoors within 5%~95% non-condensing humidity and altitude ≤2000m.
