Home Products Home Energy Storage SystemAll-in-one 10kWh LFP Solar Battery Storage With DC/DC Converter

10.55kWh

Total Energy

CAN

Communication

Max 8 in parallel

Scalability

All-in-one 10kWh LFP Solar Battery Storage With DC/DC Converter

IATF 16949
ISO 9001
ISO 14001
ISO 50001
ISO 45001
UN38.3

1.IVOLTECK 10.55kWh all-in-one LFP battery system with DC-DC converter, 9.91kWh usable energy at 90% DOD. 51.2V 206Ah LFP, supports up to 8 units parallel connection. 2.Wall-mounted or free-standing installation, IP65 rating with natural cooling. 3.Built-in full-protection BMS with CAN communication. 4.10-year warranty and complete global certifications. 5.OEM and sample orders available for residential PV backup projects.

Specifications

ModelIVT10kWh-04-A

NameDC/DC converters & battery systems

Trade MarkIVOLTECK

OriginChina

Battery TypeLiFePO₄ (LFP)

Grid nominal output power (kVA)5

Nominal input power (kVA)2.5

Grid Rated Output Current (A)12.5

Rated Voltage (Vd.c)400

Operating Voltage Range (Vd.c)330～445

Total Energy (kWh)10.55

Usable Energy (kWh)9.91

Rated Voltage (Vd.c)51.2

Voltage Range (Vd.c)44.8～57.6

Rated Capacity (Ah)206

Recommended DOD0.9

ScalabilityMax 8 in parallel

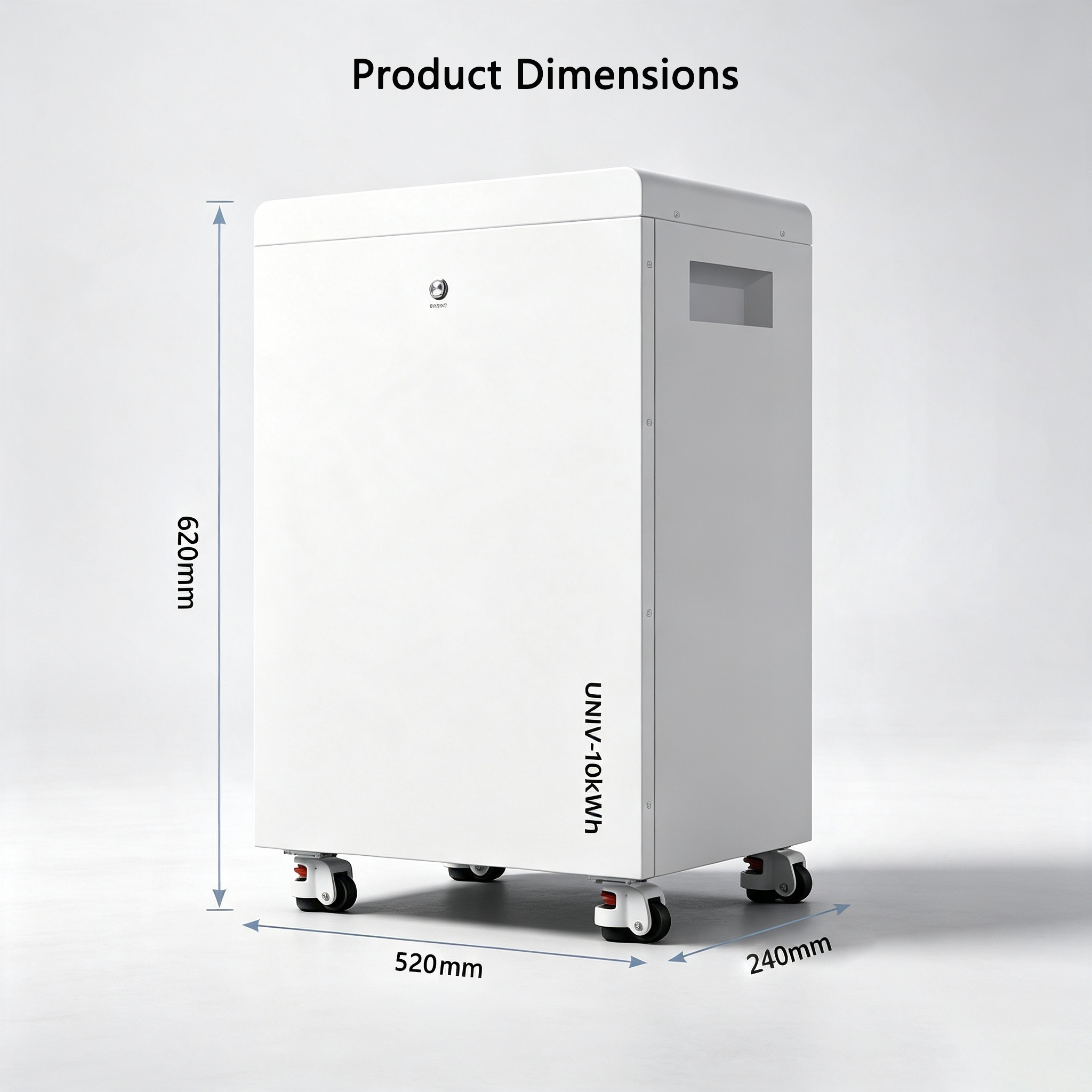

Dimensions (W×H×D) (mm)520*620*240

Weight (kg)94

BMS FunctionsOvervoltage/Overcurrent Protection/Short Circuit Protection/ Under Voltage Protection/Over Temperature Protection/Battery Balancing

CommunicationCAN

Operating Temperature (Charging)0℃~55℃(32°F～131°F)

Operating Temperature (Discharging)-20℃~55℃(-4°F～131°F)

Storage Temperature-20℃~55℃(-4°F～131°F)

IP RatingIP65

Installation TypeWall-mounted/Standalone

Cooling TypeSelf-cooling

Operating EnvironmentIndoor(5%～95%(Relative Humidity) Non-condensing)

Altitude≤2000 m

Warranty10 years

Service LifeMore than 15 years(25℃/77F)

CertificationsCE/Cell UL 1973/IEC62619

Transport CertificationUN38.3/MSDS

OEMAvailable

Order of SampleAvailable

MOQ20

Lead Time15 days

Key Features

10.55kWh total energy, 9.91kWh usable energy, 51.2V 206Ah, 90% DOD, up to 8 units parallel expansion

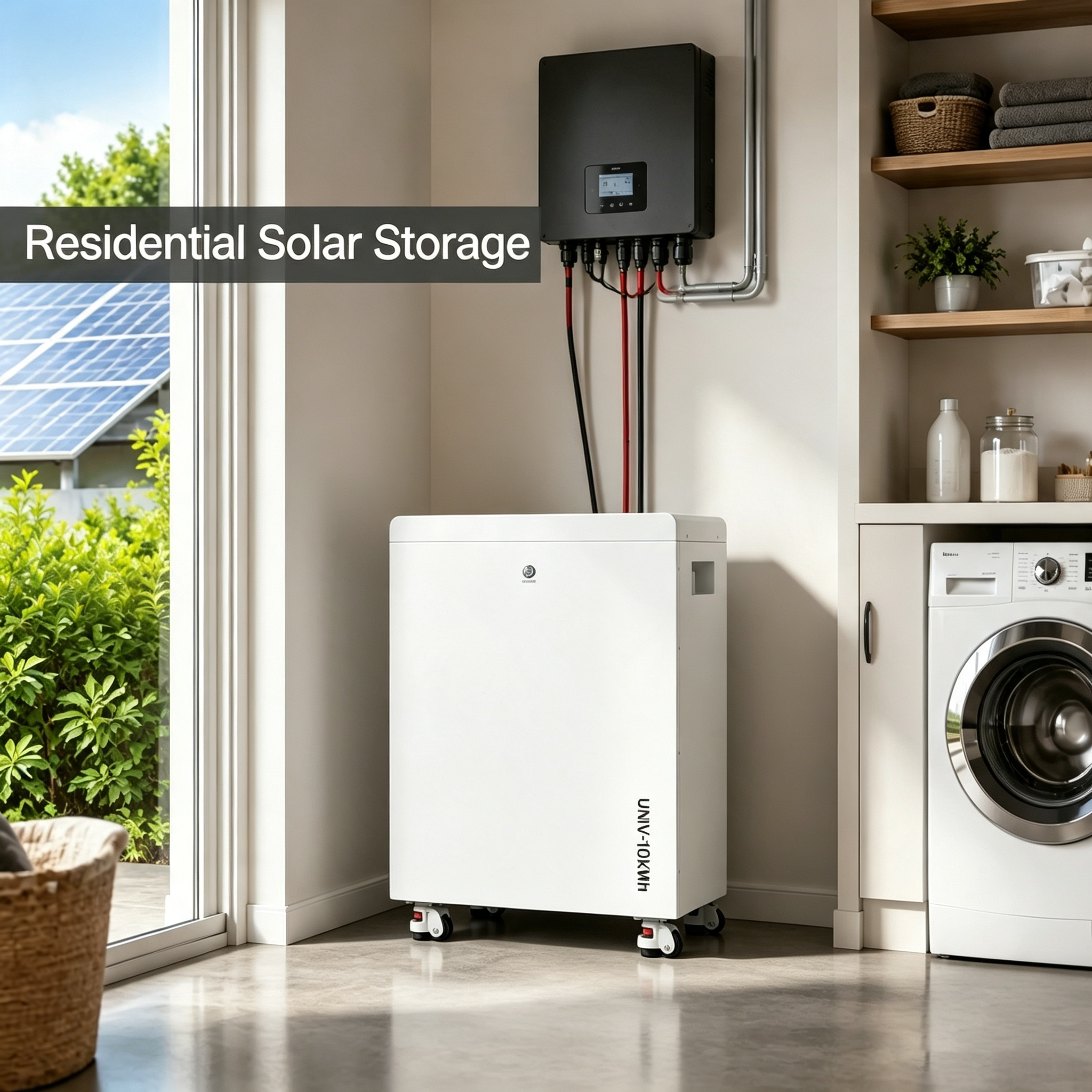

Built‑in 5kVA DC‑DC converter, compatible with residential PV system for solar storage and blackout backup

Wall‑mount / Free‑standing optional, IP65 rating, natural cooling, wide‑range temperature operation, max 2000 m altitude adaption

Over‑voltage, over‑current, short‑circuit, low‑voltage, over‑temperature protection & cell balance, CAN communication for secure battery operation

Over 15‑year service life @25℃, 10‑year warranty; Full certifications: CE, UL1973, IEC62619, UN38.3, MSDS

Product Description

1. High‑Performance LFP Energy Storage

10.55kWh total energy, 9.91kWh usable energy, 51.2V 206Ah, 90% recommended DOD, up to 8 units parallel for flexible capacity expansion

2. Integrated DC‑DC Converter Solution

Integrated 5kVA DC‑DC converter, 5kVA grid nominal output power, compatible with residential PV systems for solar energy storage and grid‑outage backup power

3. Flexible Installation & Reliable Protection

Wall‑mounted & free‑standing dual installation, IP65 rating, natural cooling without liquid cooling. Wide operating temperature ‑20℃~55℃, suitable for altitude up to 2000 m

4. Intelligent BMS Safety Management

Built‑in comprehensive BMS with over‑voltage, over‑current, short‑circuit, low‑voltage, over‑temperature protection and cell balance, CAN communication interface to ensure long‑term stable battery operation

5. Long Service Life & Complete Certifications

Over 15‑year service life at 25℃, 10‑year product warranty. Certified by CE, UL1973, IEC62619, UN38.3 and MSDS, meets overseas project access requirements

Customer Reviews (1)

4.7

1 review

Product Quality

4.8

Response Speed

4.7

Problem Solving

4.7

Q***vyt

Natural cooling design reduces maintenance work. 10‑year warranty and full certifications make it very competitive for home storage market.
