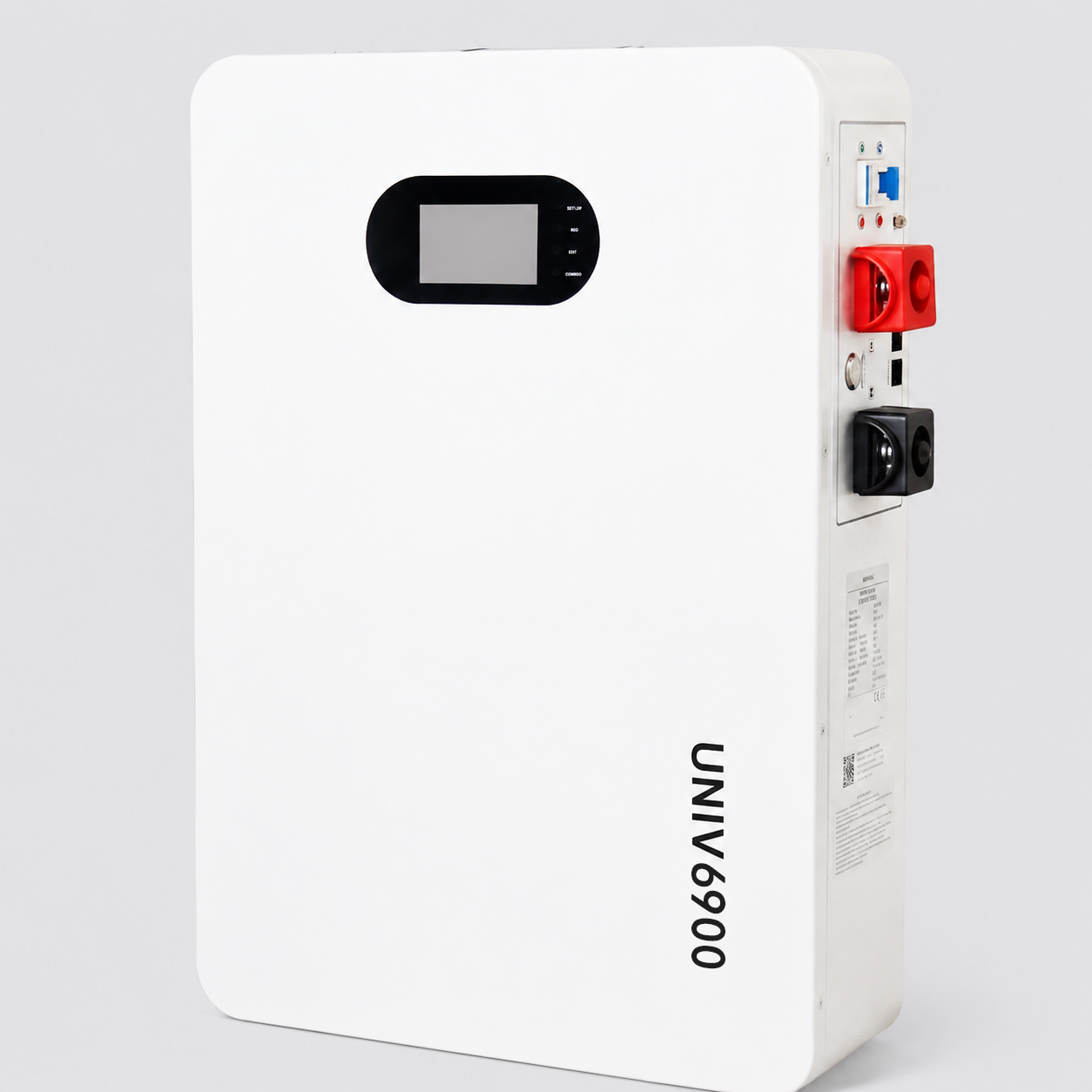

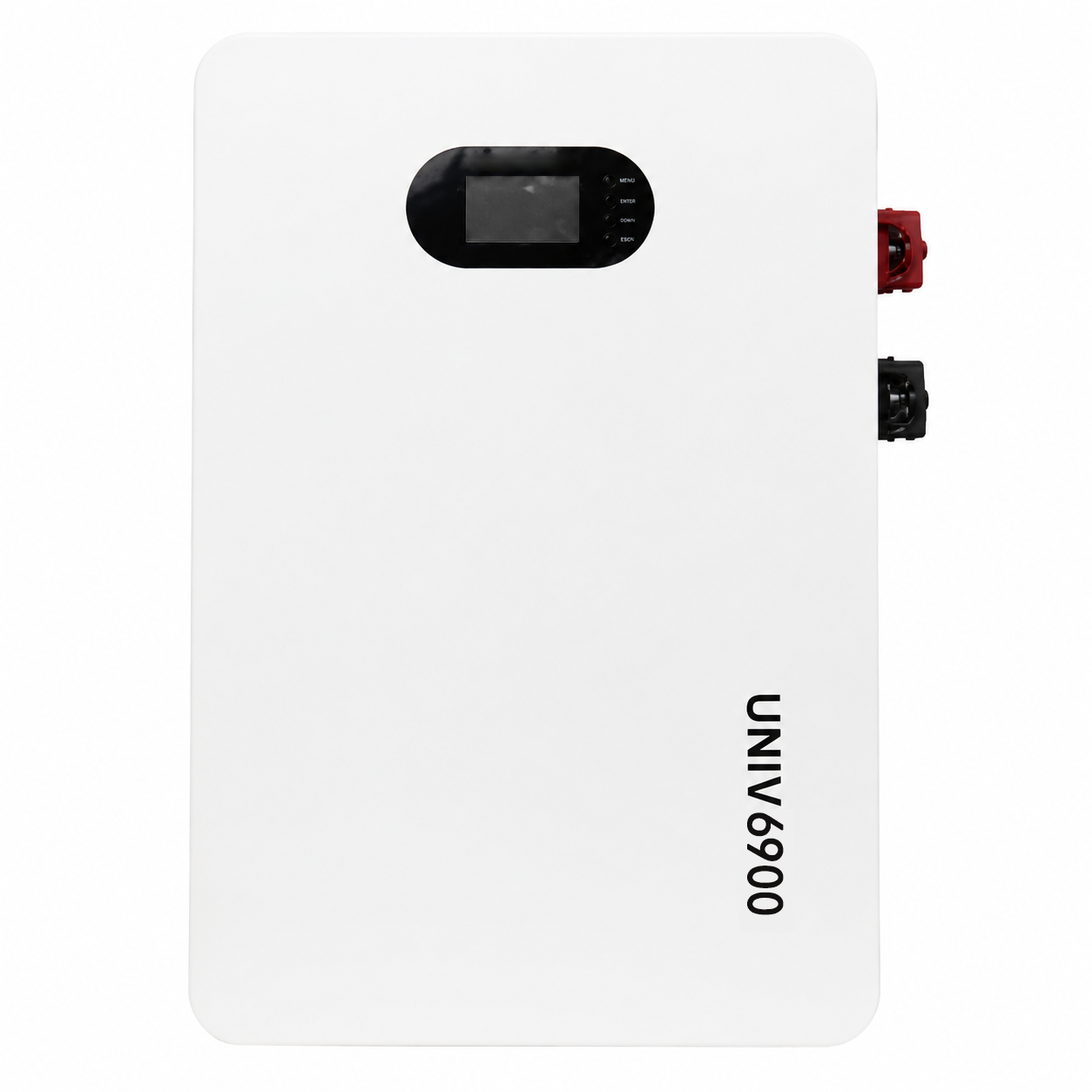

51.2V Stackable Wall-mounted LiFePO4 Home Energy Storage Battery
- IATF 16949
- ISO 9001
- ISO 14001
- ISO 50001
- ISO 45001
- UN38.3
1. Flexible Installation & Capacity Expansion: Adopts advanced modular design, supports both wall-mounted and stackable installation for flexible capacity expansion. 2. Smart BMS & Compatibility: Built-in intelligent BMS, Bluetooth real-time monitoring and CAN/RS485 communication, compatible with mainstream solar inverters. 3. Reliable Performance & Safety: 90% DOD, natural cooling, full international certifications and 10-year warranty, ideal for residential PV and light commercial backup power. 4. Custom Service: OEM & ODM available for global distributors and energy system integrators.

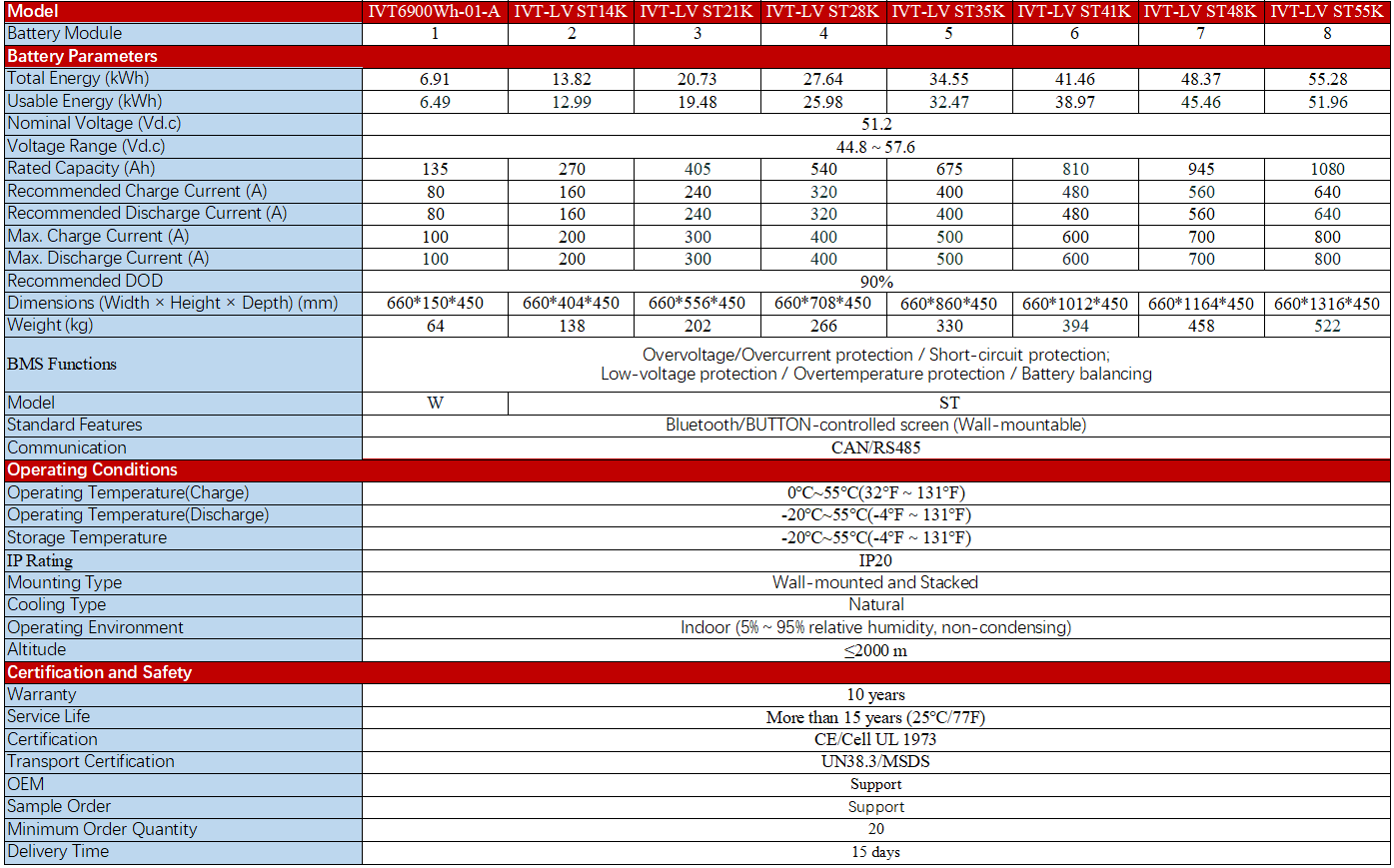

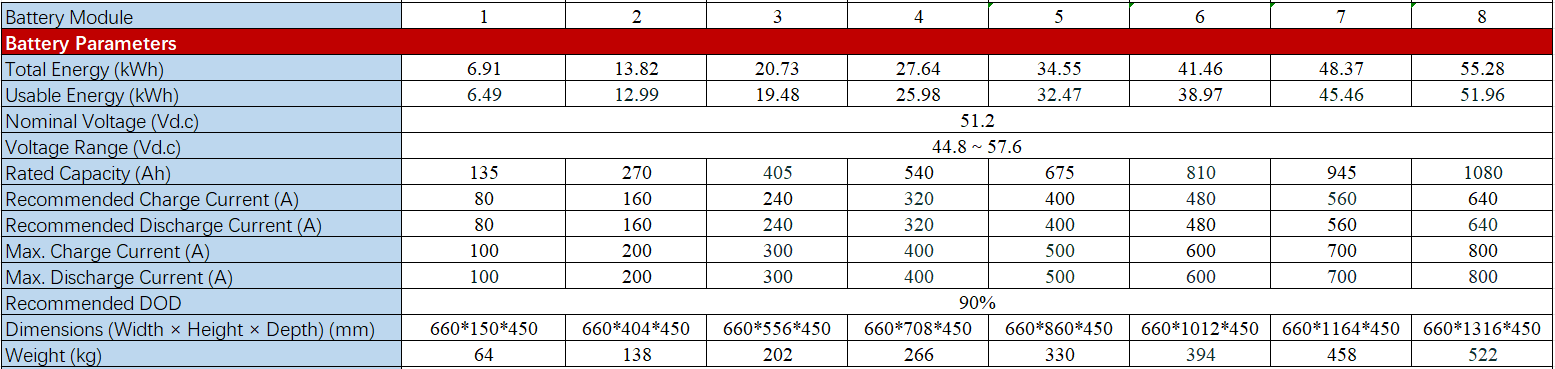

Specifications
Key Features
Product Description
Modular Flexible Capacity Expansion

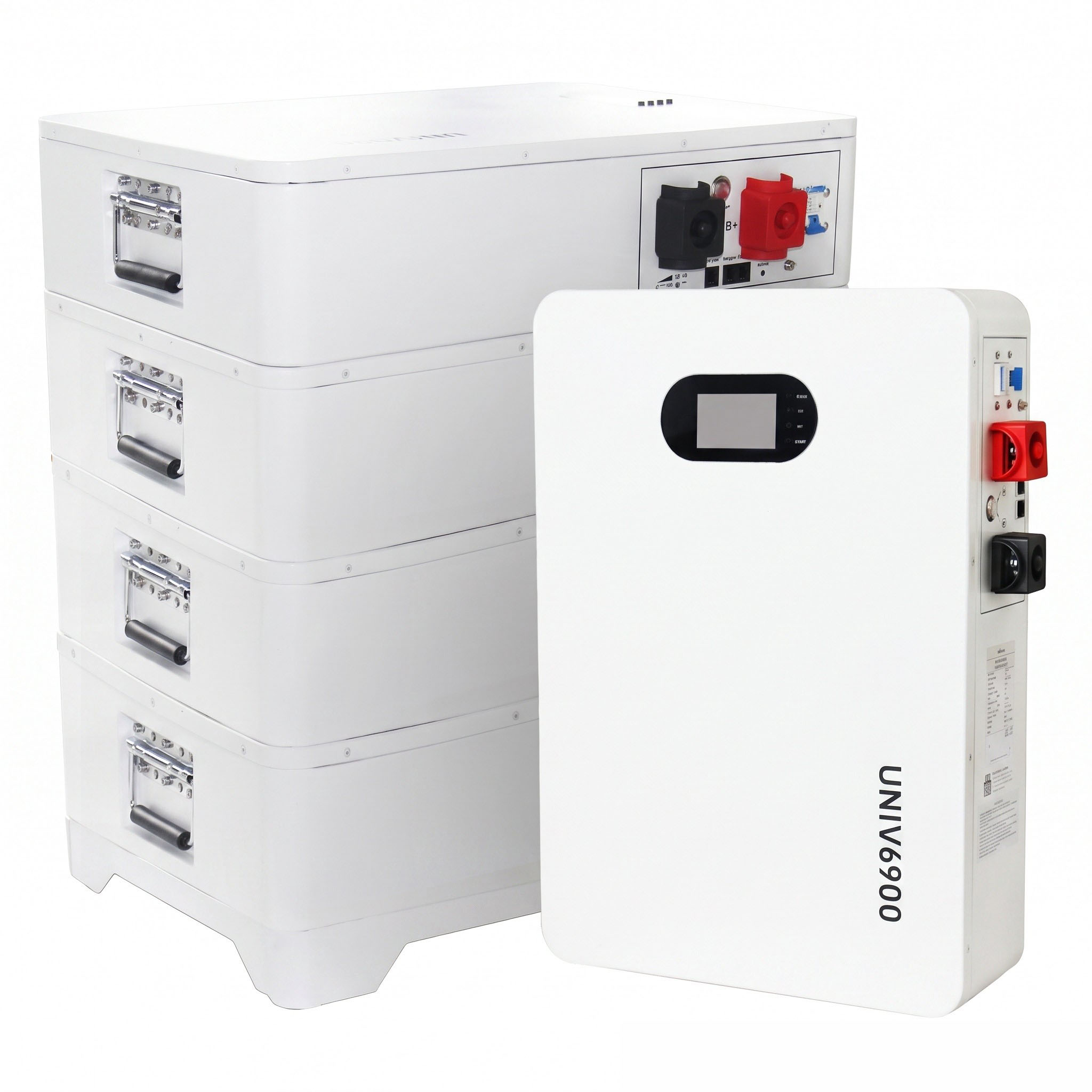

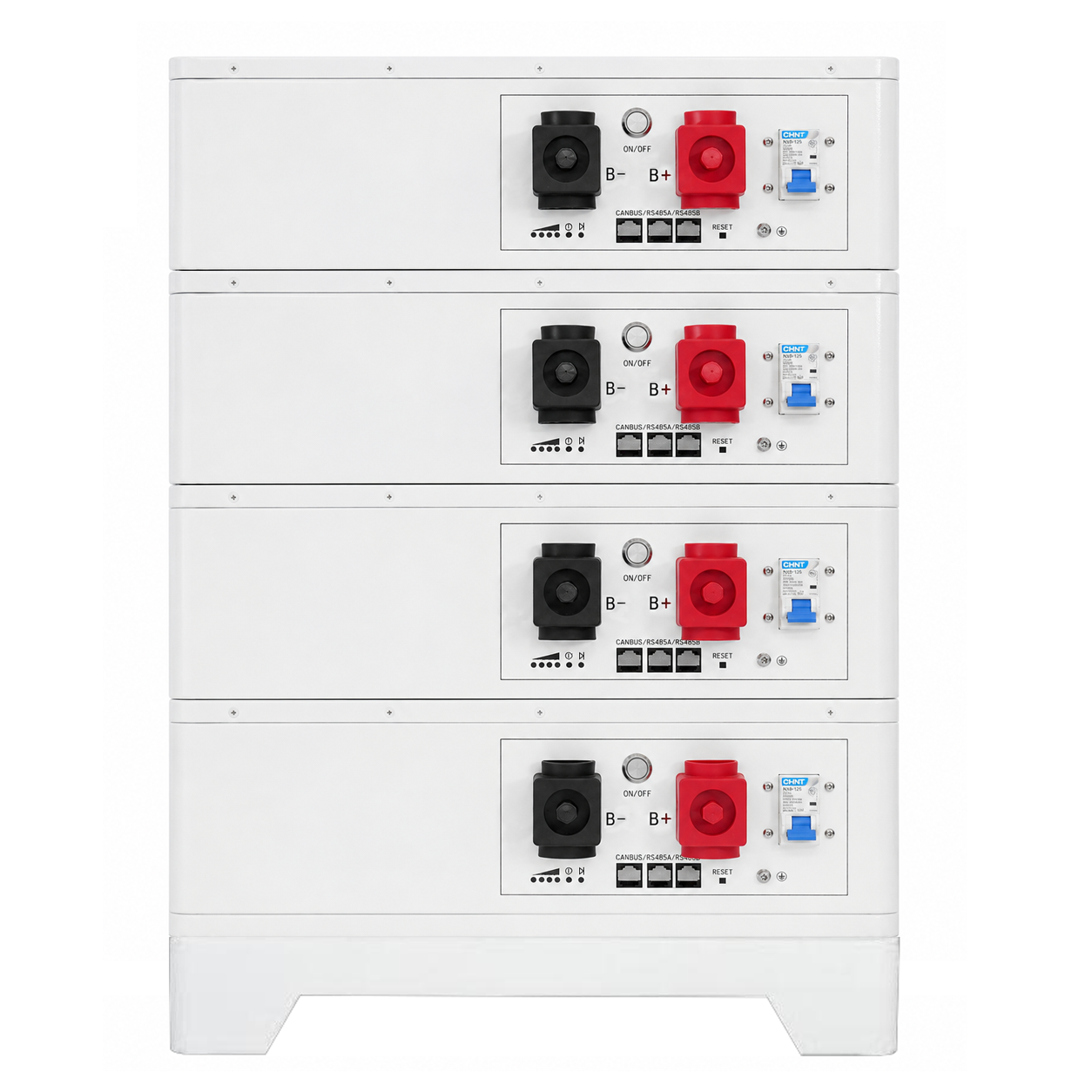

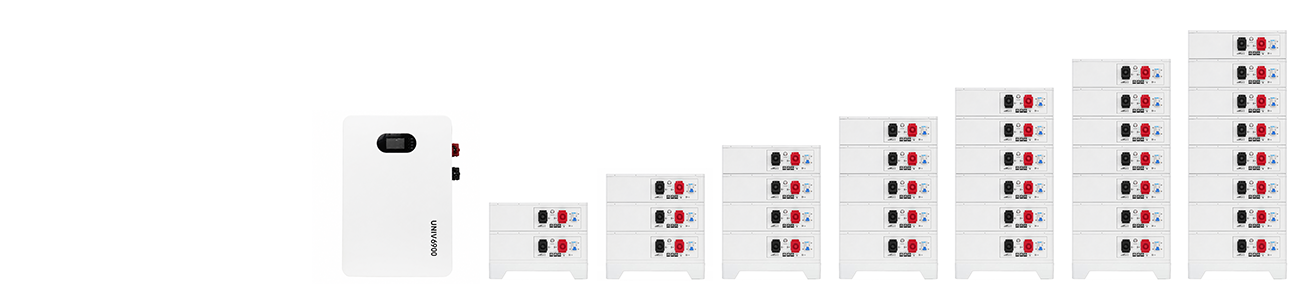

FlexiStack series features modular design, supporting both wall-mounted and stackable installation. Users can freely combine modules to expand total capacity ranging from 6.91kWh to 55.28kWh, meeting diversified energy demands of residential and light commercial projects.
Intelligent Monitoring & Communication
Built-in optimized BMS system supports real-time monitoring via Bluetooth. Equipped with CAN/RS485 communication and touch control screen for easy device monitoring, compatible with mainstream energy storage inverters.
Stable & Reliable Performance
51.2V low-voltage LiFePO4 system with 90% recommended DOD. Adopts natural cooling without extra heat dissipation equipment. Service life exceeds 15 years for consistent stable power supply.
Safety Assurance & Global Certifications
Multi-protection BMS covers overvoltage, overcurrent, short-circuit, over-temperature and cell balance. Fully certified with CE, UL1973, UN38.3 and MSDS. Backed by 10-year official warranty with IP20 indoor protection rating.
Wide Operating Conditions
Designed for indoor operation. Charging temperature: 0°C ~ 55°C; Discharging temperature: -20°C ~ 55°C. Suitable for altitude up to 2000 meters, easy installation and maintenance.
