Stackable High Voltage LFP Battery Energy Storage System
- IATF 16949
- ISO 9001
- ISO 14001
- ISO 50001
- ISO 45001
- UN38.3
1. Modular stackable expansion: 1–8 modules optional in one cabinet, capacity from 14.34 to 114.69kWh, system voltage 51.2V–409.6V, compatible with mainstream high-voltage PCS. 2. High-performance LFP cells: 280Ah LiFePO4 cells, 90% DOD, 140A steady charge & discharge to maximize energy storage benefits. 3. Centralized intelligent BMS: Equipped with master control box, multi-layer safety protection & cell balancing; CAN communication for real-time cabinet monitoring. 4. Natural air cooling: No extra air conditioning required to reduce O&M cost; IP20 indoor cabinet for simple deployment. 5. Wide environmental adaptability: Charge:0℃~55℃, Discharge:-20℃~55℃, applicable for altitude up to 2000m. 6. Long warranty & complete certifications: 10-year warranty, service life over 15 years @25℃. Full global certifications for commercial & industrial energy storage projects.
Specifications
Key Features
Product Description

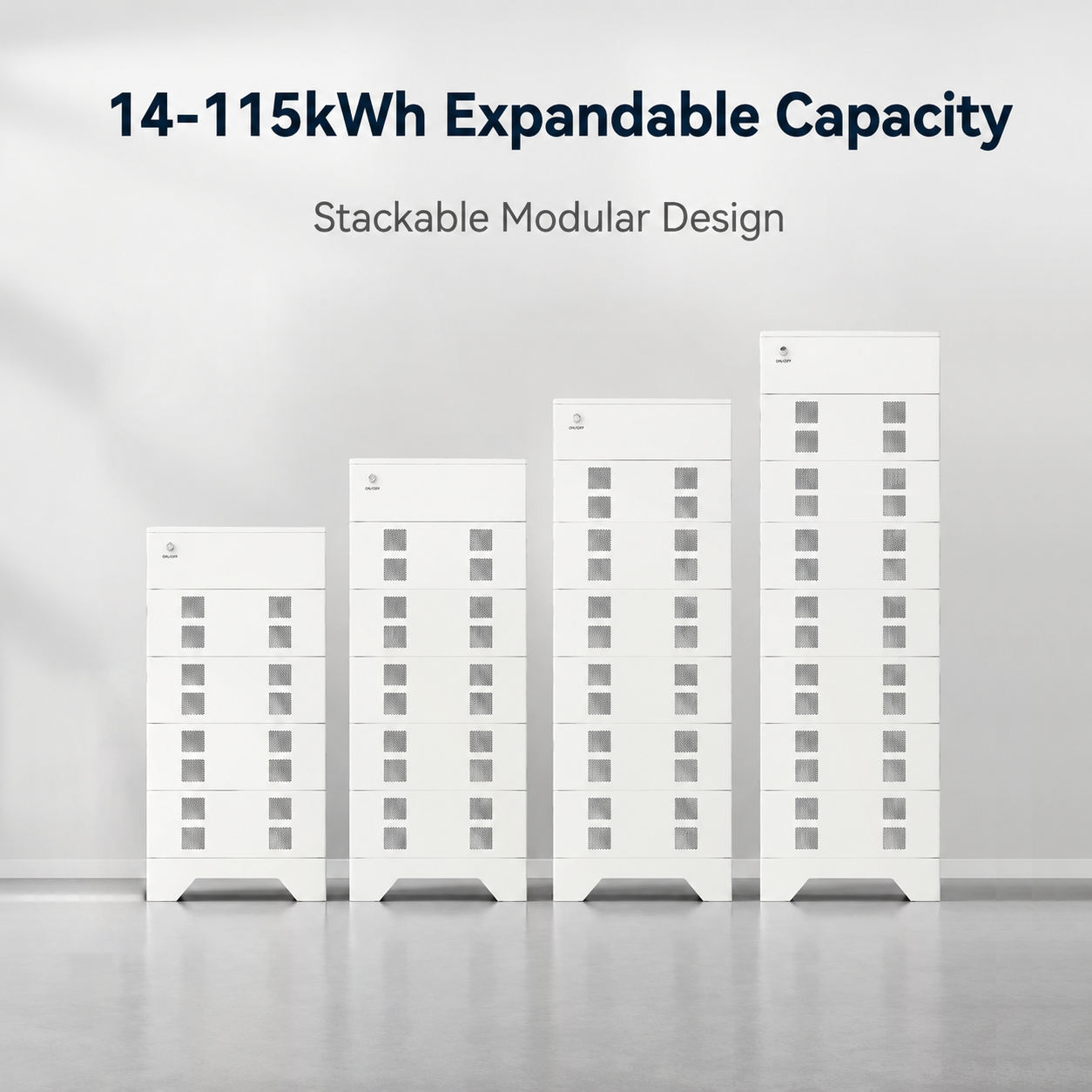

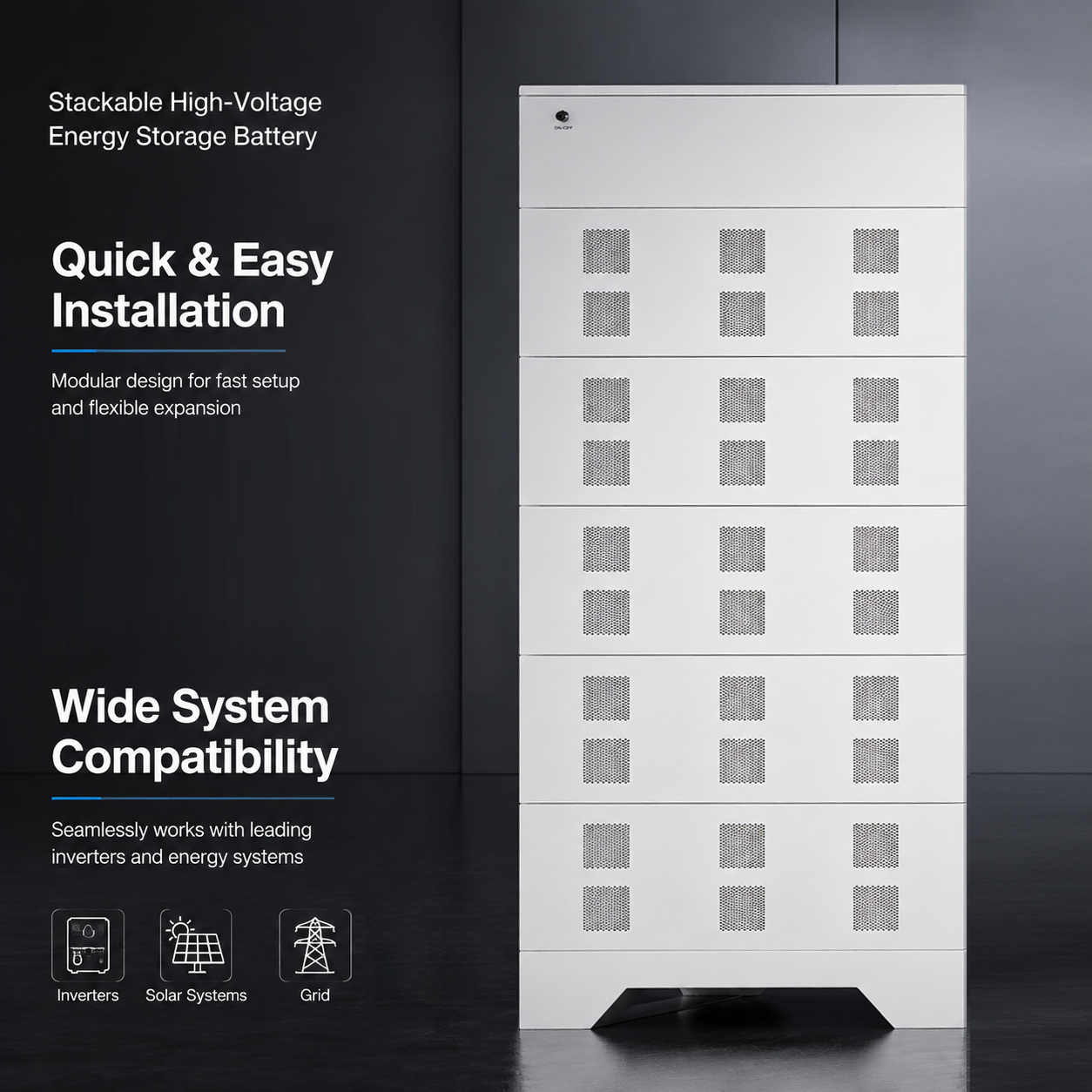

Modular HV Scalable Design

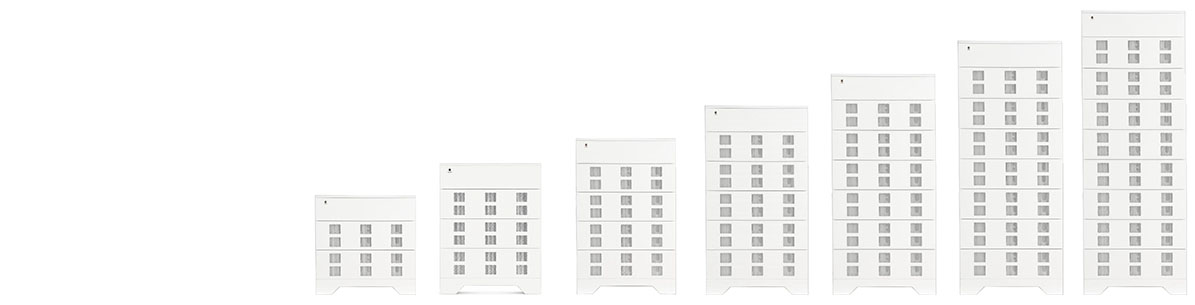

Standard stackable architecture, single module 14.34kWh, freely combine 1~8 modules within one cabinet, capacity range 14.34~114.69kWh. System voltage 51.2V~409.6V, compatible with mainstream high voltage PCS.
High-Performance LFP Cells
280Ah LiFePO4 cells with 90% recommended DOD, 140A charge/discharge current. High usable energy to maximize benefits for self-consumption and peak-shaving.
Integrated Intelligent BMS Safety Control
Independent control cabinet with master BMS. Built-in overvoltage, overcurrent, short-circuit, undervoltage, overtemperature protection and cell balancing. CAN communication to monitor all modules in real time.

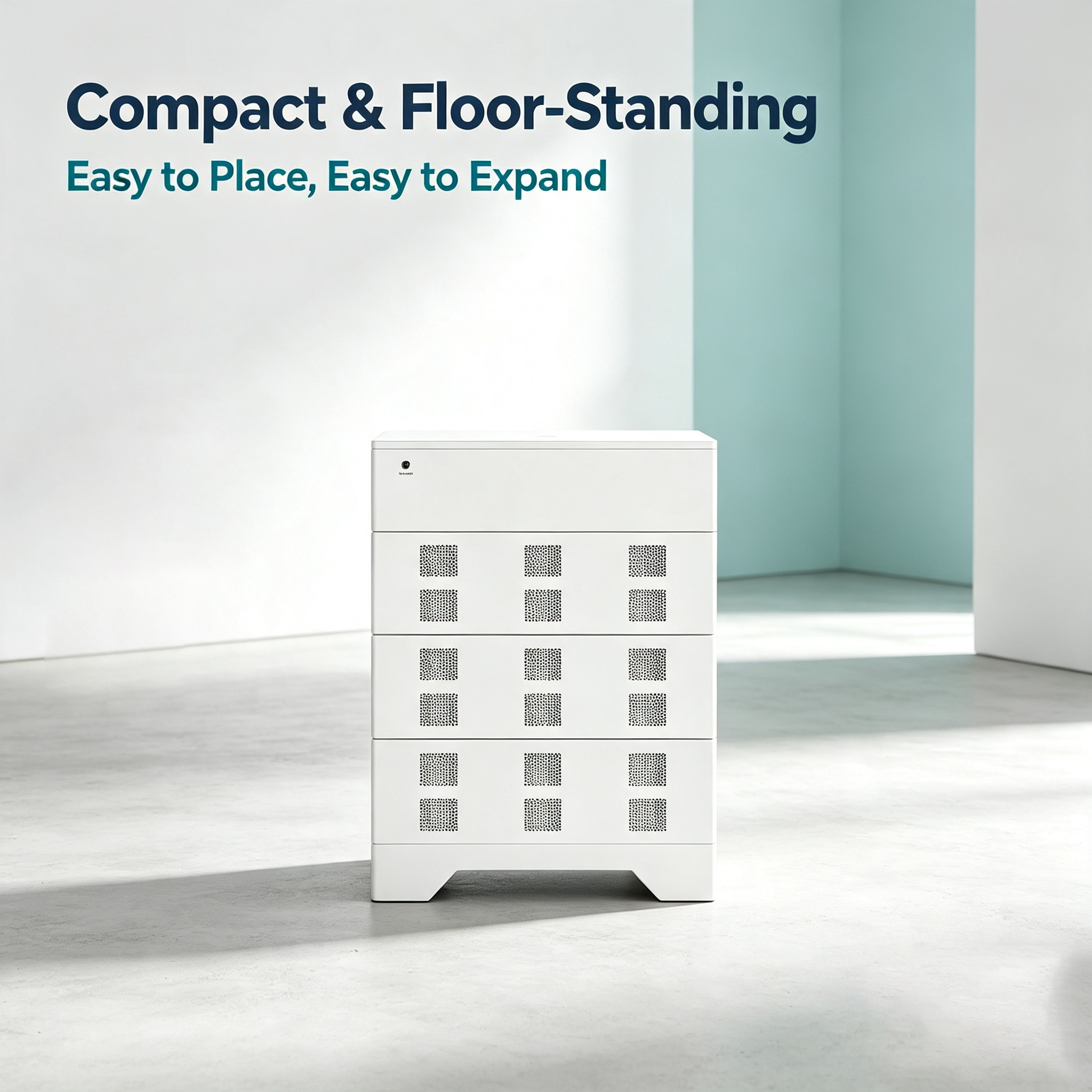

Natural Cooling & Easy Deployment
Natural cooling without extra air conditioning to cut O&M cost. IP20 indoor protection, complete cabinet design for fast on-site installation, adapt to altitude up to 2000m.
Stable Operation In Wide Temperature Range
Charging:0℃~55℃, Discharging:-20℃~55℃, adapt to seasonal temperature variations and meet all-day C&I energy storage demand.
Long Warranty & Complete Certifications
10-year manufacturer warranty, service life ≥15 years at 25℃. Certified CE, UL1973, IEC62619, UN38.3, MSDS to meet global C&I project compliance requirements.
B-End Project Customization
OEM labeling supported. Flexible module configuration based on project capacity demand, supply for EPC contractors and energy storage system integrators.
| Component | 1*Module | 2*Modules 1*Control Box 1*Base | 3*Modules 1*Control Box 1*Base | 4*Modules 1*Control Box 1*Base | 5*Modules 1*Control Box 1*Base | 6*Modules 1*Control Box 1*Base | 7*Modules 1*Control Box 1*Base | 8*Modules 1*Control Box 1*Base |
| Total Energy(kWh) | 14.34 | 28.66 | 42.996 | 57.33 | 71.68 | 86.02 | 100.35 | 114.69 |
| Useable Energy(kWh) | 13.48 | 26.94 | 40.42 | 53.89 | 67.38 | 80.86 | 94.33 | 107.81 |
| Nominal Voltage (Vd.c) | 51.2 | 102.4 | 153.6 | 204.8 | 256 | 307.2 | 358.4 | 409.6 |
| Voltage Range (Vd.c) | 44.8～57.6 | 89.6～115.2 | 134.4～172.8 | 179.2～230.4 | 224～288 | 268.8~345.6 | 313.6～403.2 | 358.4～460.8 |
| Roted Capacity (Ah) | 280 | |||||||
| Recommend Charge Current(A) | 140 | |||||||
| Recommend Discharge Current(A) | 140 | |||||||
| Depth of Discharge(DOD) | 90% | |||||||
| Dimension (W*H*D)(mm) | 770*420*230 | 770*420*780 | 770*420*1010 | 770*420*1240 | 770*420*1470 | 770*420*1700 | 770*420*1930 | 770*420*2160 |
| Weight (KG) | 110 | 268 | 378 | 488 | 598 | 708 | 818 | 928 |
