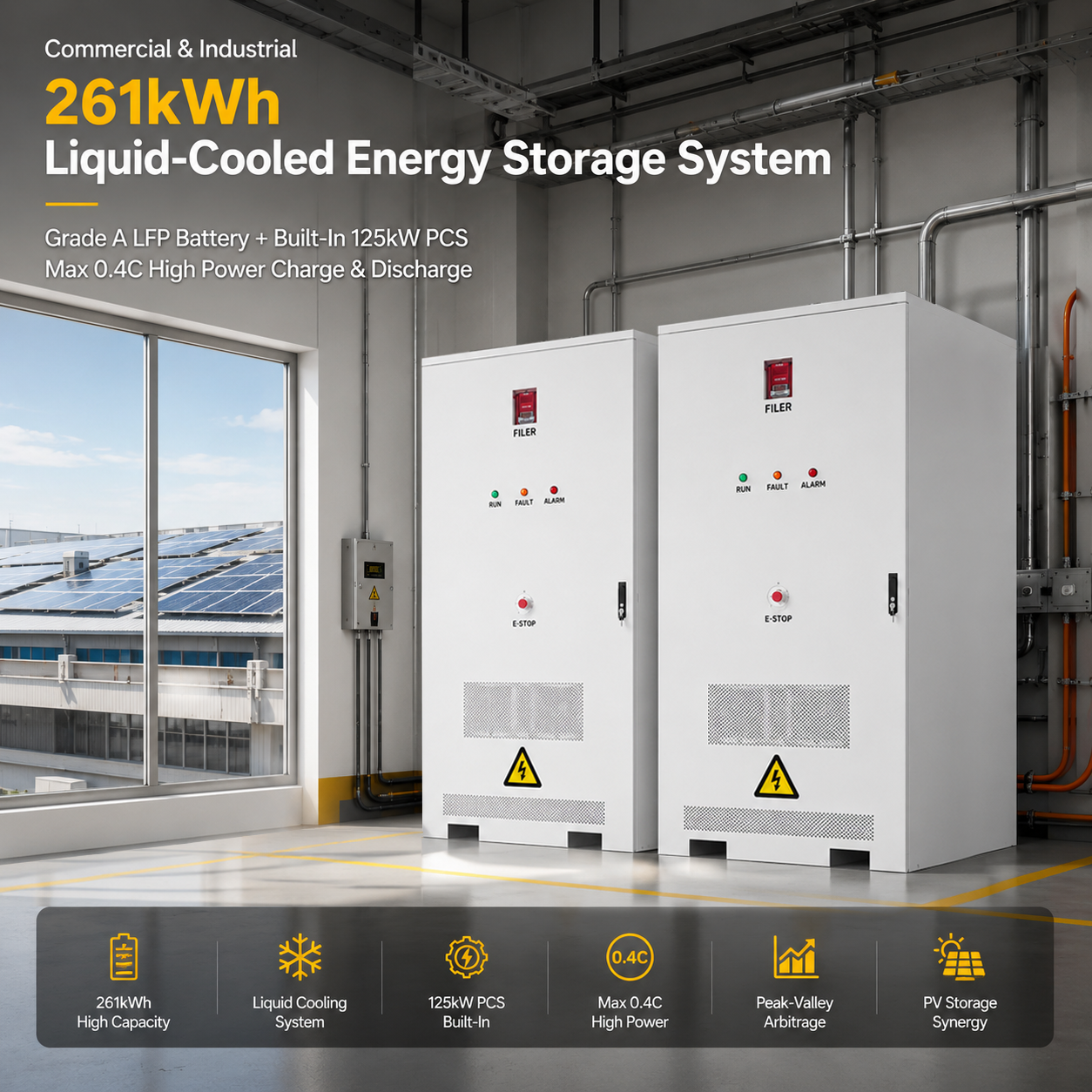

261kWh 125kW Liquid Cooling Battery Energy Storage Cabinet with Built-in PCS, Max 137kW Output for Commercial Rooftop PV & Emergency Power Supply
- IATF 16949
- ISO 9001
- ISO 14001
- ISO 50001
- ISO 45001
- UN38.3
✅ Integrated all-in-one PCS design for high efficiency & high power output ✅ Liquid cooling constant temperature heat dissipation, ultra-long cycle service life ✅ Outdoor heavy-duty protection grade, perfluorohexanone safe fire suppression system ✅ Standardized complete machine design, fast & easy project deployment ✅ Full set of international transportation safety certifications
Specifications
Key Features
Product Description
Integrated all-in-one PCS design for high efficiency & high power output
Integrated built-in PCS, 261kWh capacity, 125kW rated / 137kW max output with 99% peak efficiency; supports 50/60Hz dual grid frequency and 3-phase 400V commercial voltage.

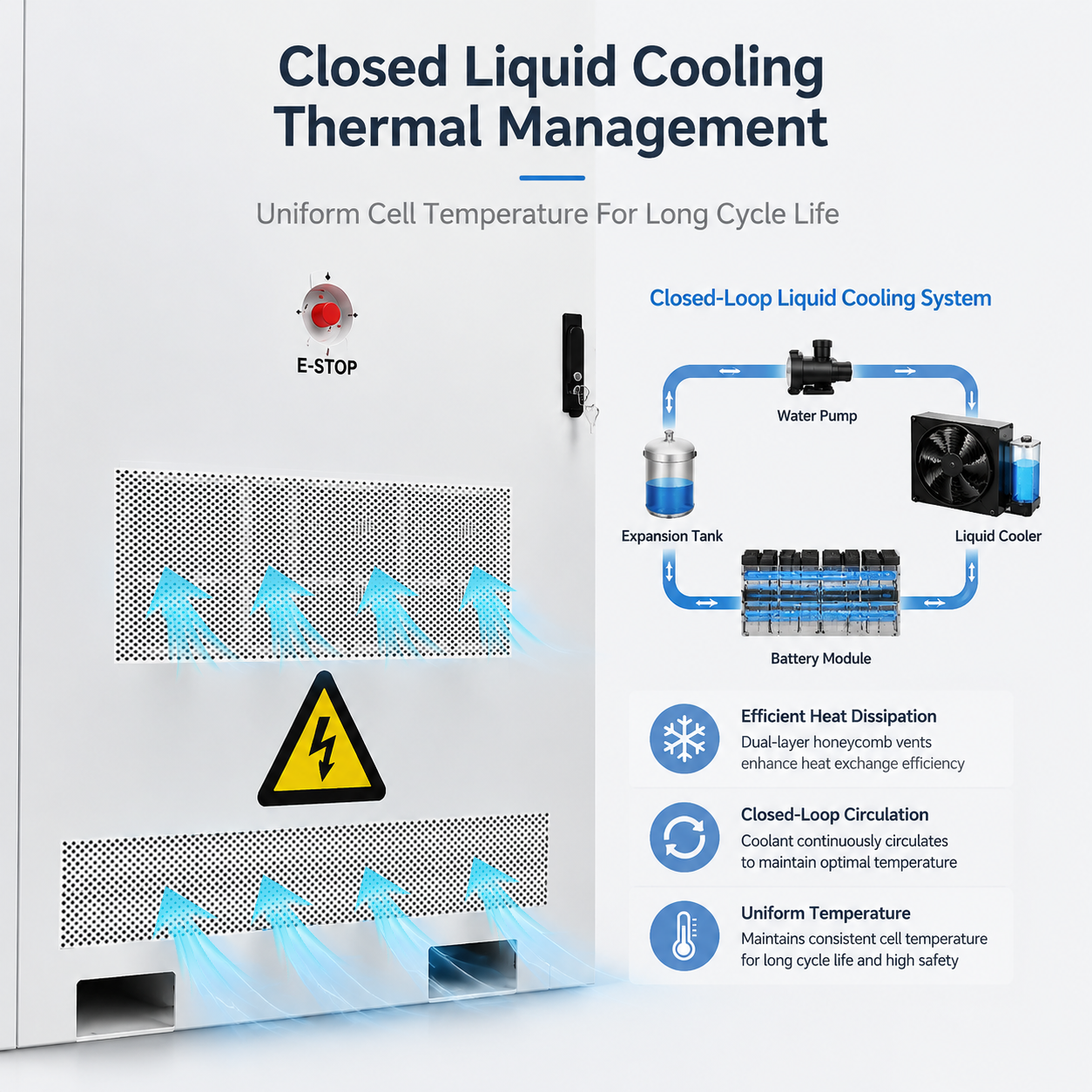

Liquid cooling constant temperature heat dissipation, ultra-long cycle service life
Liquid cooling thermal management, wide operating temperature (0~55℃ charging /-20~55℃ discharging); ≥8000 cycles, 15+ years service life, 5-year warranty for PCS & 10-year warranty for batteries.

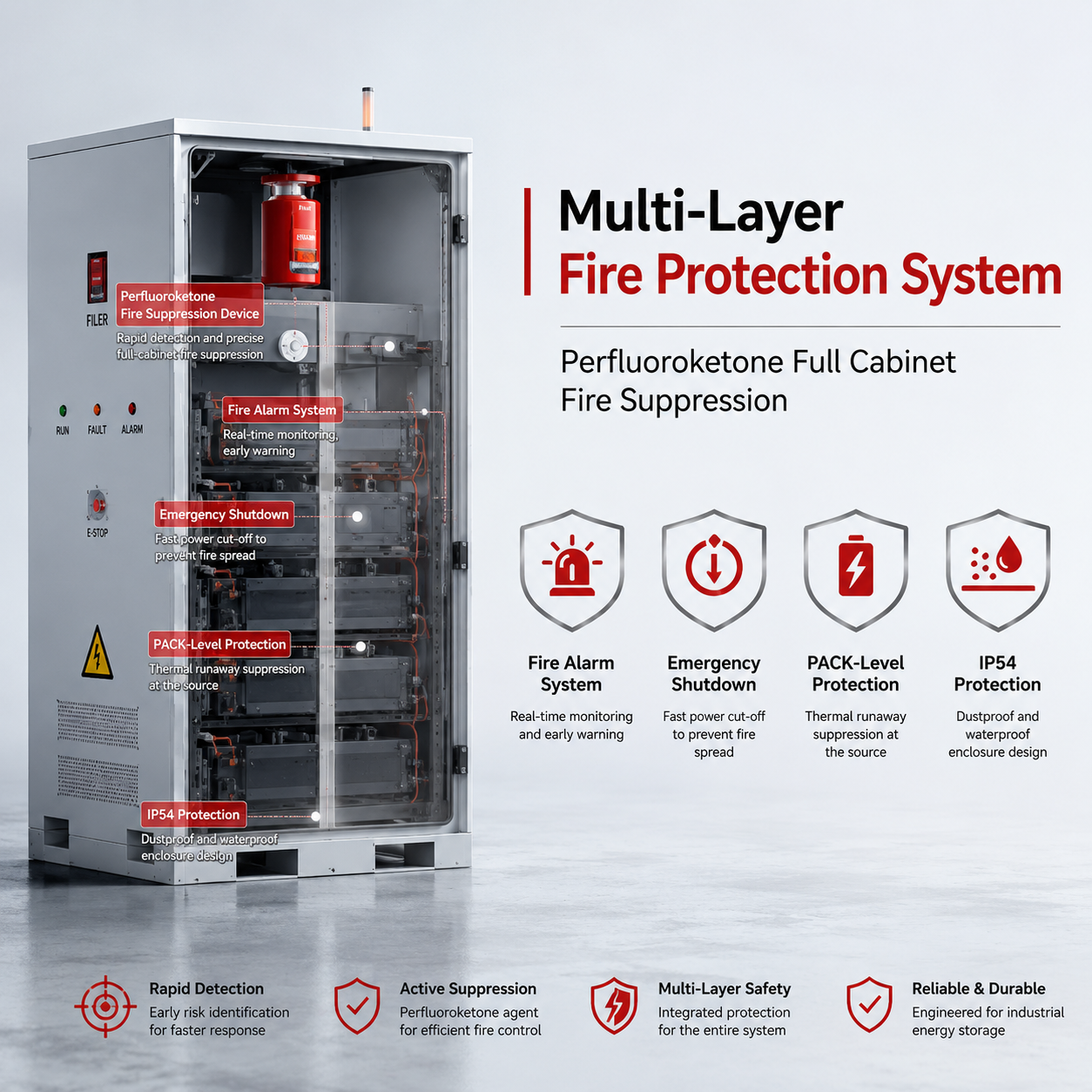

Outdoor heavy-duty protection grade, perfluorohexanone safe fire suppression system
IP54 protection & C4 anti-corrosion grade, works indoor and outdoor under 10%~95% humidity; equipped with fluoroketone fire suppression to prevent thermal runaway.
Standardized complete machine design, fast & easy project deployment
Compact all-in-one cabinet for altitude ≤2000m; supports OEM customization and sample order, MOQ=1, delivery within 15 days, ideal for PV storage, peak shaving and industrial backup power.
Full set of international transportation safety certifications
Full certifications of CE, UN38.3 and MSDS, compliant with overseas tender and global shipping standards.
