HomeProductsC&I energy storage cabinetsHigh Energy Density 5MWh Commercial Industrial Liquid Cooled Battery Storage System
5.015MWh
Capacity
-30℃~+55°℃(>45℃ derating)
Operation Ambient Temperature Range
High-efficiency liquid cooling
Temperature Control Method

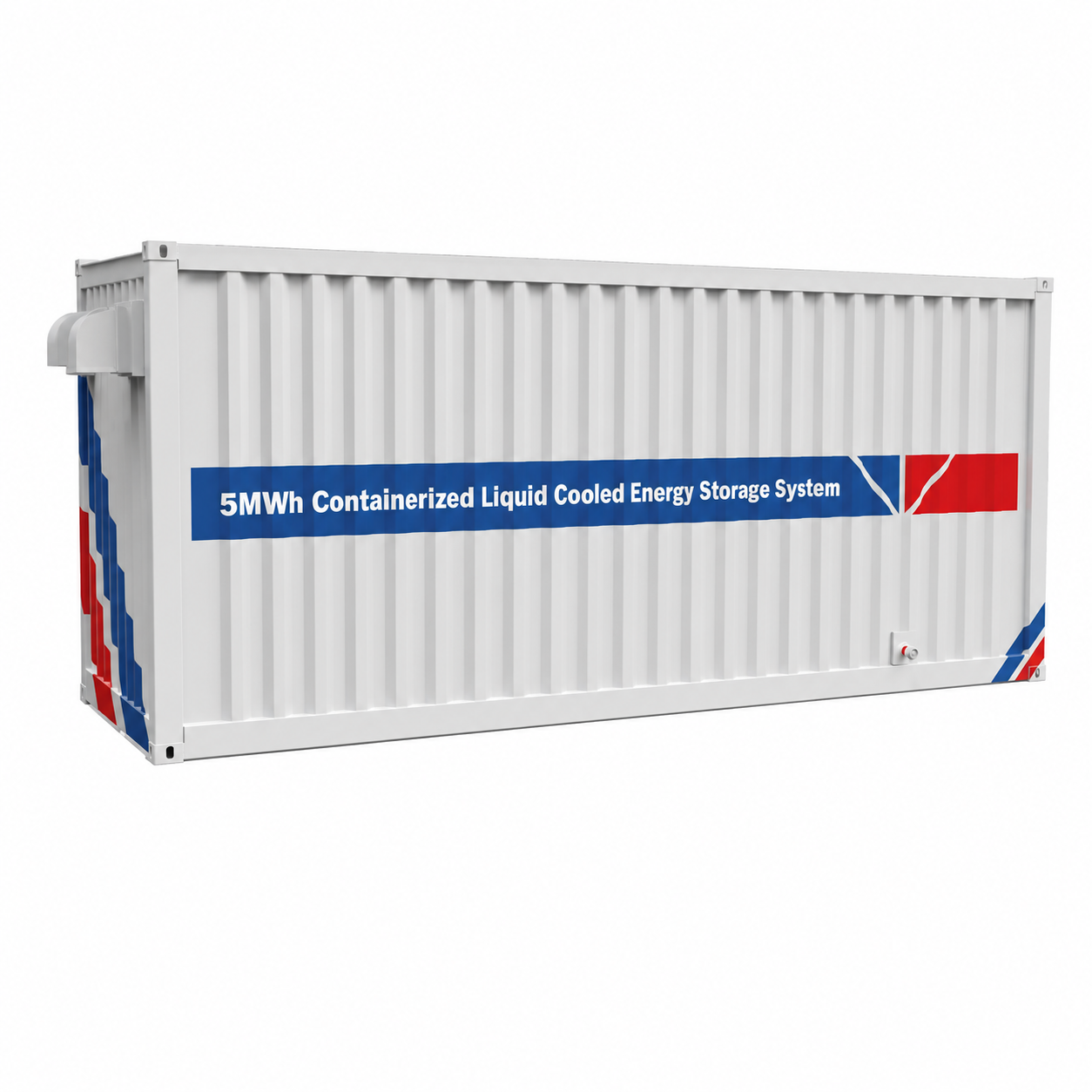

High Energy Density 5MWh Commercial Industrial Liquid Cooled Battery Storage System
- IATF 16949
- ISO 9001
- ISO 14001
- ISO 50001
- ISO 45001
- UN38.3
✅Full-lifecycle cost reduction & efficiency improvement ✅Simple operation and maintenance with minimal failure losses ✅Superior adaptability to extreme environments, stable high-quality power output ✅Multi-layer safety protection to eliminate thermal runaway risks ✅Large-capacity standardized system, compliant and easy to integrate
Specifications
ModelIVT5MWh-01-A
NameLiquid Cooled Energy Storage System
Trade MarkIVOLTECK
OriginChina
Cell Type3.2V/314Ah LFP
Battery Configuration416S12P
Weight (Kg)Approx. 42t
Product Size(W*H*D) (mm)2438mm*2896mm*6058mm
ColorGray(custom is available)
Nominal Capacity (Ah)5.015MWh
Nominal Voltage Range1164.8~1500V
Nominal AC Power5000kVA
Max.THD Of Current<3%(Nominal Power)
DC Component<0.5%
Nominal AC Voltage690V
AC Voltage Range621V~759V
Power Factor>0.99(Nominal Power)
Adjustable Range Of Reactive Power1.0 lagging~1.0 leading
Nominal Frequency50Hz/60Hz
Degree Of ProtectionIP55
Anti-corrosion DegreeC4/C5(optional)
Operation Ambient Temperature Range-30℃~+55°℃(>45°℃ derating)
Operation Humidity Range0~95%
Maximum Operation Altitude5000m
Temperature Control MethodHigh-efficiency liquid cooling
Fire Suppression SystemCombustible gas detector,smoke sensor,
temperature sensor,pack
aerosol/perfluorohexanone,water fire protection,
gas extinguishing controller
CommunicationCAN、RS485、RJ45
StandardIEC 62619,IEC 63056,IEC 62477-1,IEC 62040-1,
IEC/UL 60730-1,UL 9540A,UN38.3,UN3536
OEMAvailable
Order of SampleAvailable
MOQ1
Lead Time15 days
Key Features
Intelligent liquid cooling extends cell life by 15%. Integrated design cuts kWh cost by 10% and installation cost by 40%. It raises energy density by 20% and equipment utilization by 60%.
All-in-one unit simplifies delivery, installation and commissioning. EMS enables flexible operation settings. Modular design minimizes downtime and failure losses.
It works stably from -30℃ to +55℃ up to 5000m altitude with IP55 and optional C4/C5 anti-corrosion. THD＜3%, high power factor, compatible with 50/60Hz global grids.

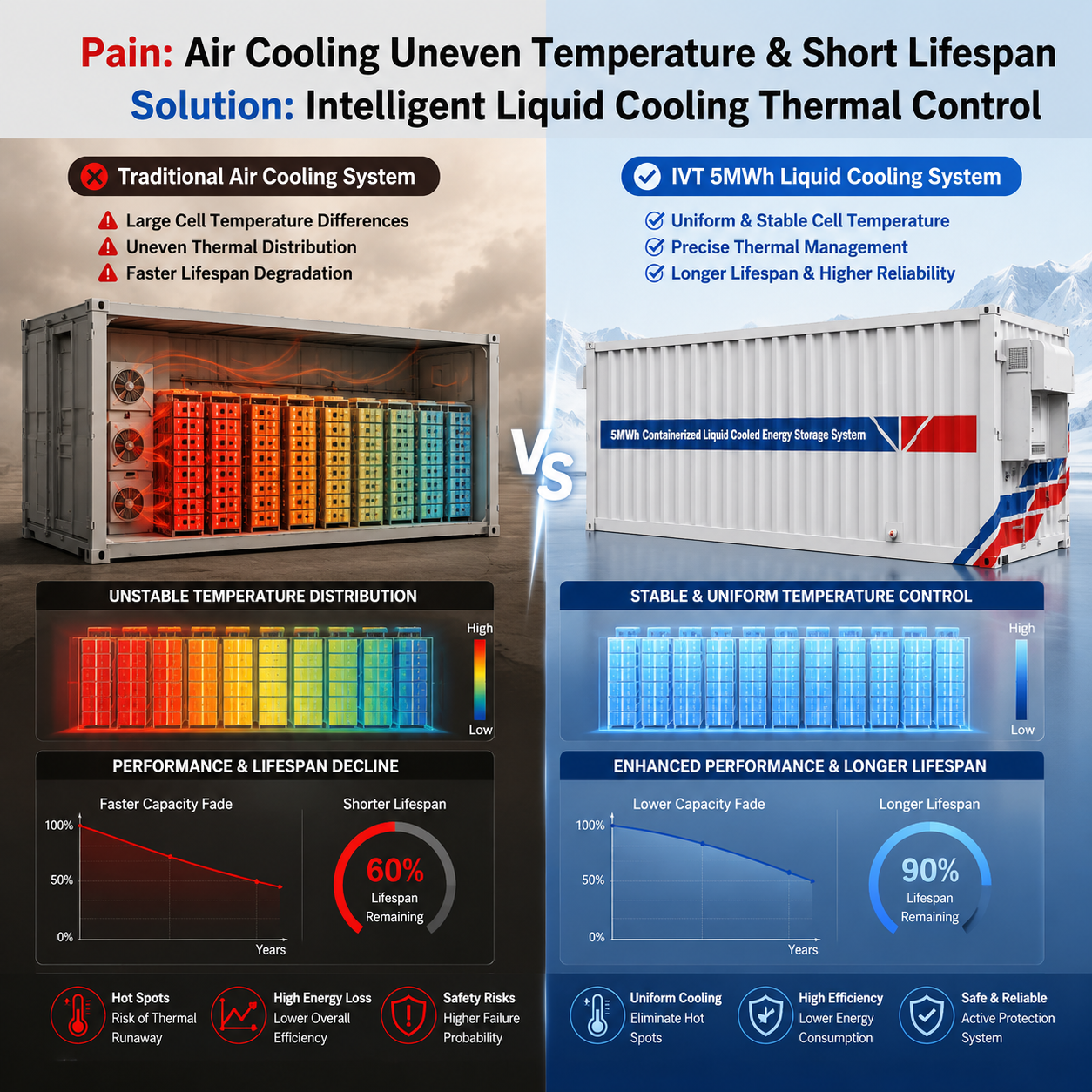

Liquid cooling keeps temperature difference under 3℃. Multi-layer fire protection including pack-level aerosol fire suppression prevents thermal runaway.
5.015MWh 5000kVA LFP energy storage cabinet with multiple communication ports. Full IEC, UL and UN certifications fit global large industrial energy projects.
Product Description
COST REDUCTION
- Intelligent temperature control extends cell life by 15%
- Efficient integration technology reduces cost per kwh by approximately 10%.
- Optimized integrated design cuts installation costs by 40%.
CONVENIENT O&M

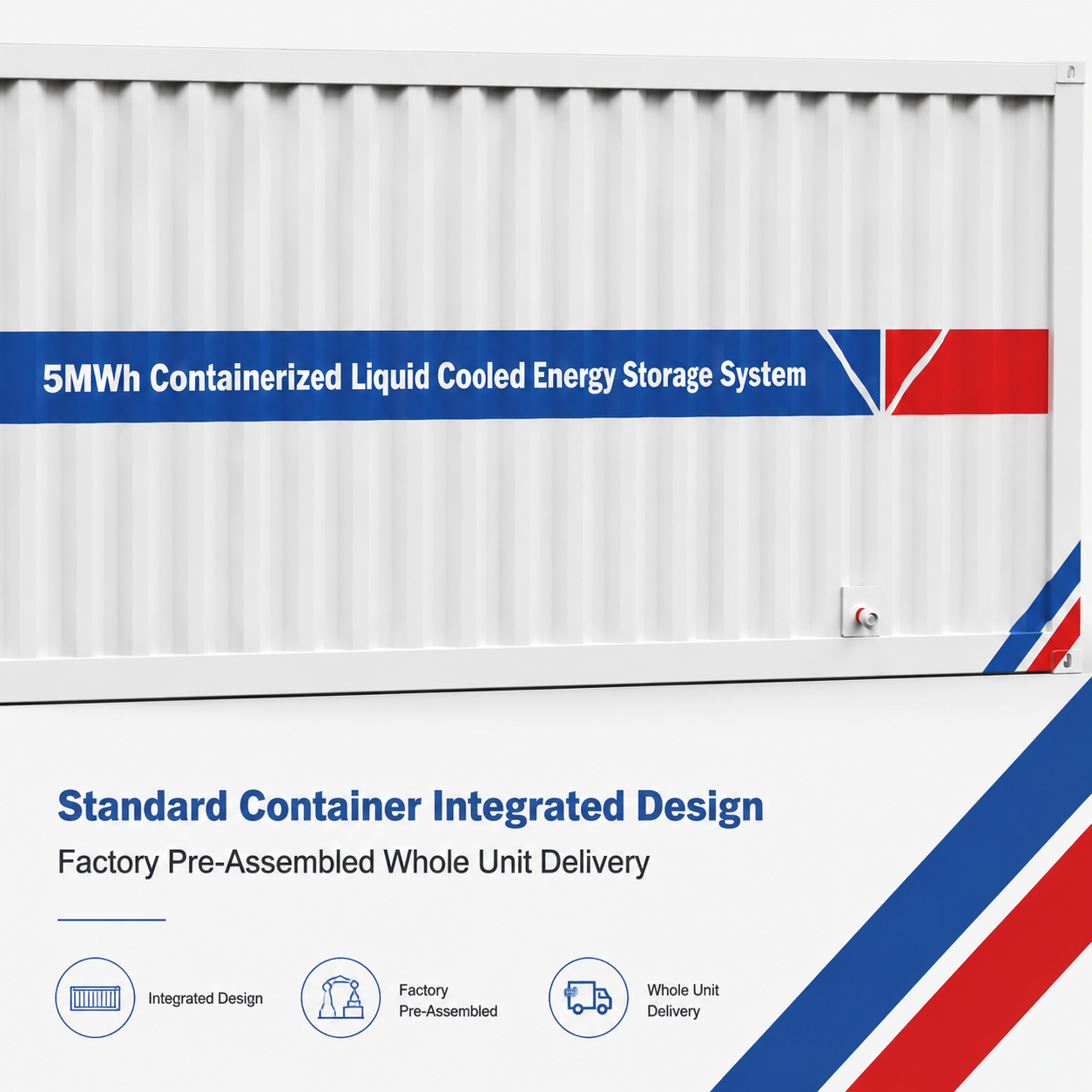

- Integrated system solution simplifies transportation, installation,and commissioning.
- EMS intelligent control allows flexible system operation settings.
- Modular design minimizes downtime and reduces loss from failures.
EFFICIENT AND FLEXIBLE
- Strong environmental adaptability supports various extreme applications.Equipped with a high-capacity battery pack increasing eneray density.by 20%.
- Optimized heat dissipation and space layout boost equipment utilization by 60%.
SAFE AND RELIABLE
- Intelligent temperature control maintains a temperature difference of less than 3℃ .
- Multiple fire protection measures ensure system safety.
- Pack-level fire protection prevents thermal runaway incidents.
Customer Reviews (1)
4.8
1 review
Product Quality
4.8
Response Speed
4.9
Problem Solving
4.8
V
V***jn
All‑in‑one solution simplifies logistics & commissioning.
