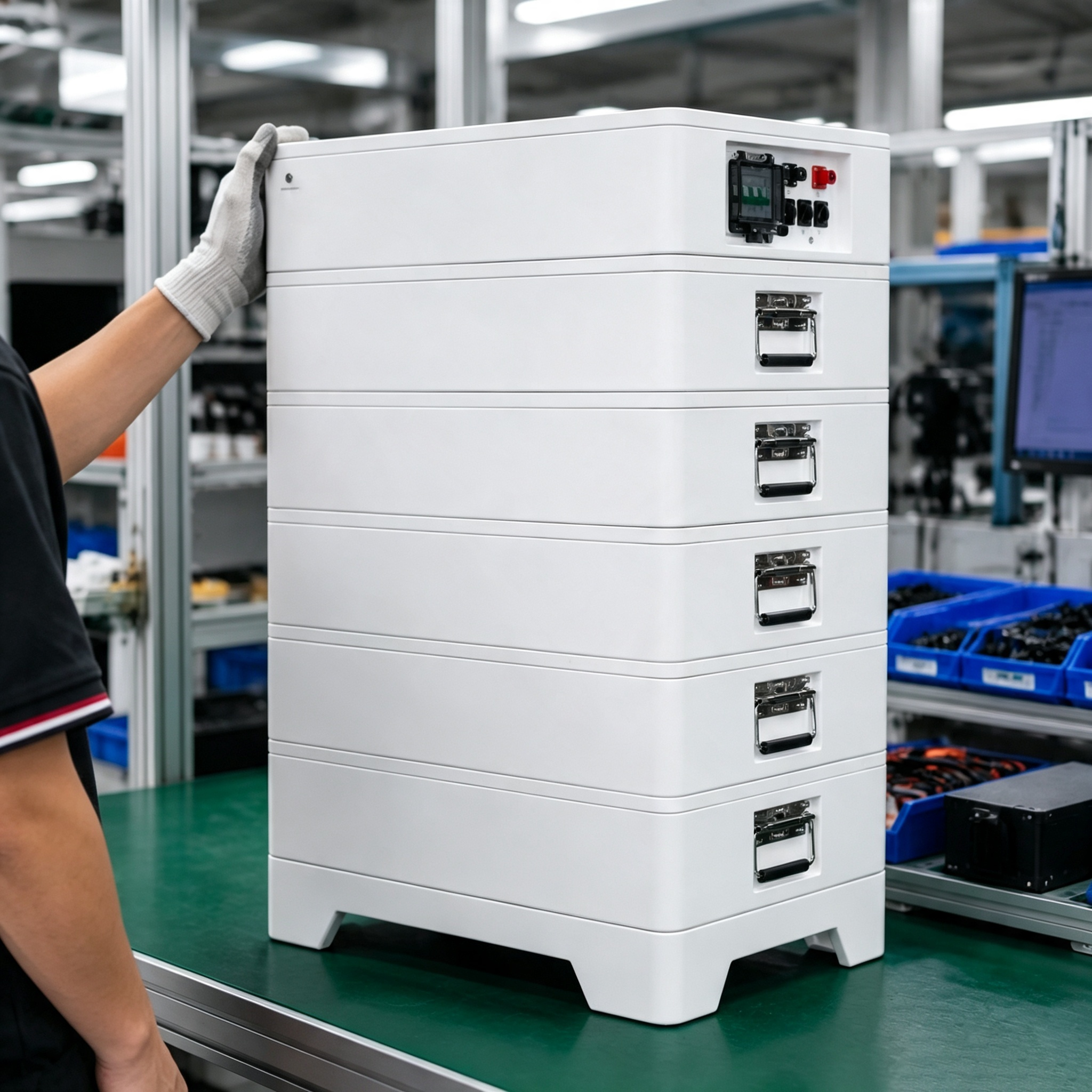

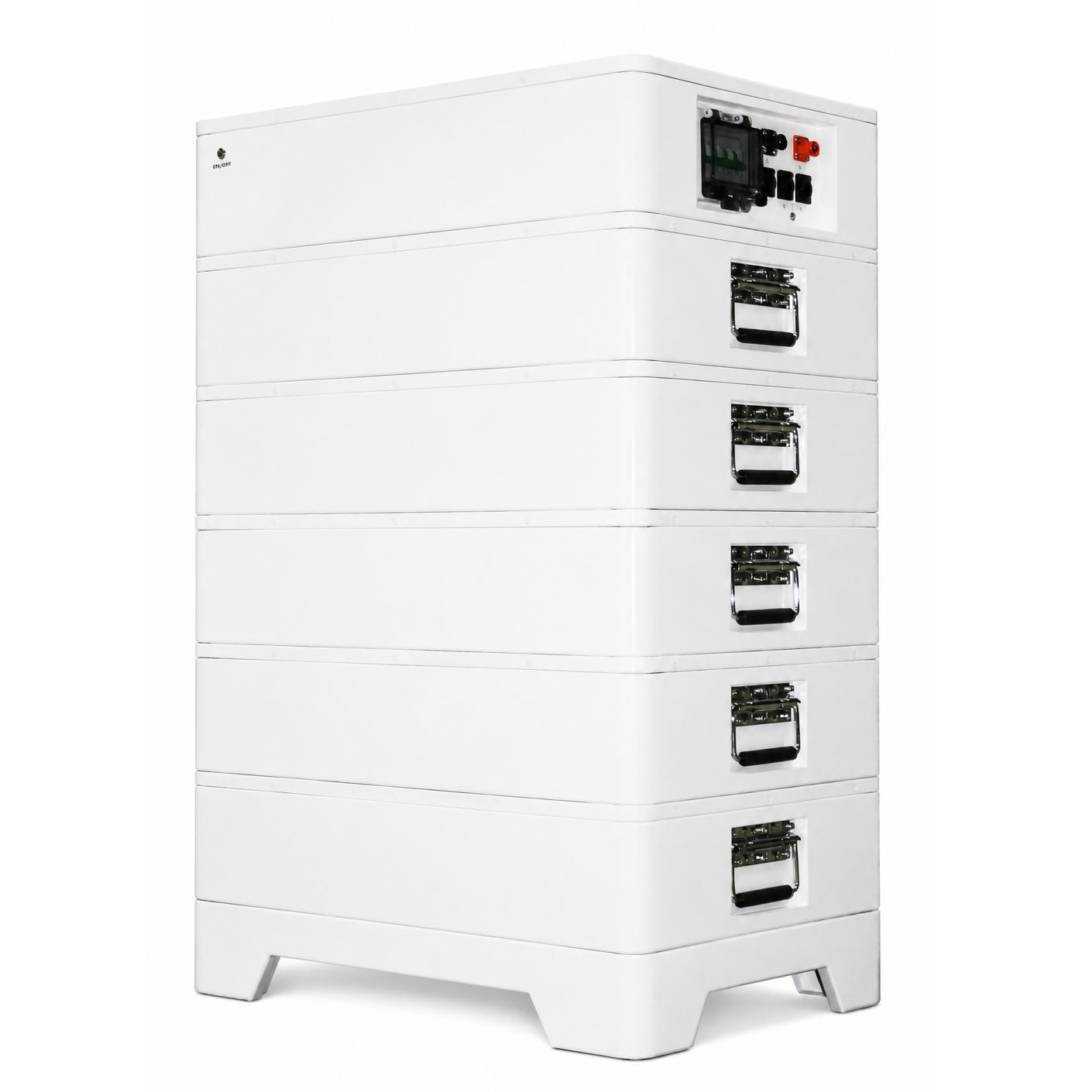

15~62kWh Modular Stackable High Voltage Solar Storage Battery
- IATF 16949
- ISO 9001
- ISO 14001
- ISO 50001
- ISO 45001
- UN38.3

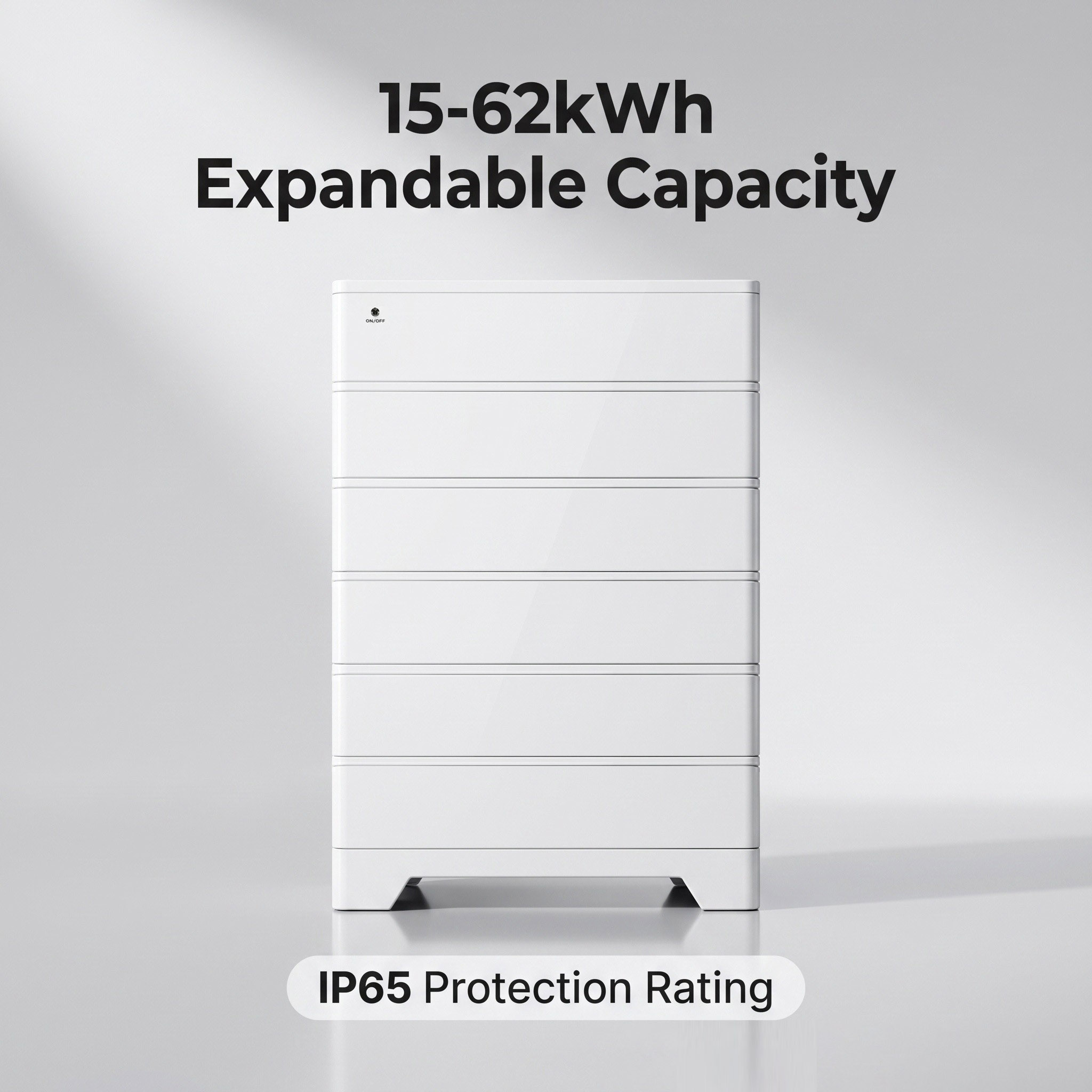

1. IVT-HV is an IP65 modular stackable high voltage LiFePO4 energy storage system, supporting 2–8 modules combination with scalable capacity from 15.36kWh to 61.44kWh. 2. Adopts 100Ah lithium iron phosphate cells with 90% DOD and stable 50A charge & discharge current to maximize available energy output. 3. Equipped with master CAN BMS, featuring comprehensive safety protection and cell balancing for synchronized monitoring of all stacked modules. 4. IP65 dustproof and waterproof enclosure supports semi-outdoor and humid environment deployment, wider than ordinary IP20 indoor battery systems. 5. Adopts natural air cooling design without extra cooling equipment, lowering long-term operation and maintenance costs. 6. Works stably under wide temperature conditions and comes with a 10-year warranty together with complete international safety certifications. 7. Perfectly applicable to large residential energy storage, light commercial PV storage, off-grid power supply and emergency backup power projects.
Specifications
Key Features
Product Description

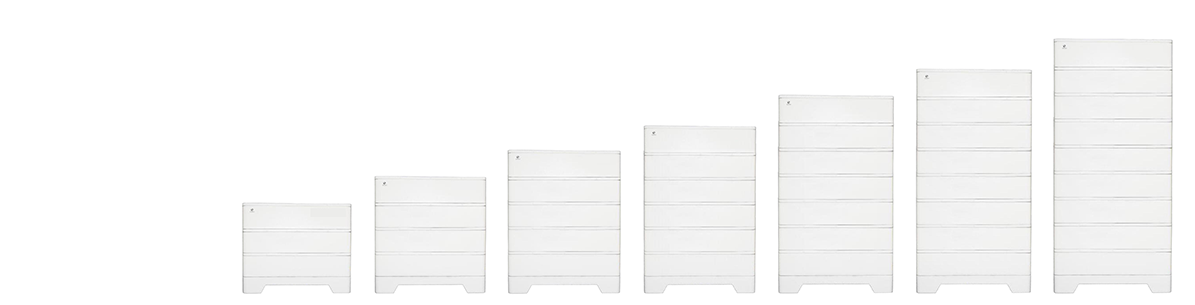

- Modular High-Voltage Stackable Design
Flexible combination of 2–8 modules per cabinet, capacity from 15.36 to 61.44kWh, voltage range 134.4V~691.2V, compatible with mainstream HV PCS inverters - 100Ah LiFePO4 Cells with 90% DOD
Steady 50A charge & discharge current, sufficient usable energy to maximize benefits of PV self-consumption and backup power - Master BMS & Multi-Layer Safety Protection
Overvoltage, overcurrent, short-circuit, undervoltage & overtemperature protection plus cell balancing. CAN communication monitors all stacked modules synchronously - IP65 Dustproof & Waterproof Rating

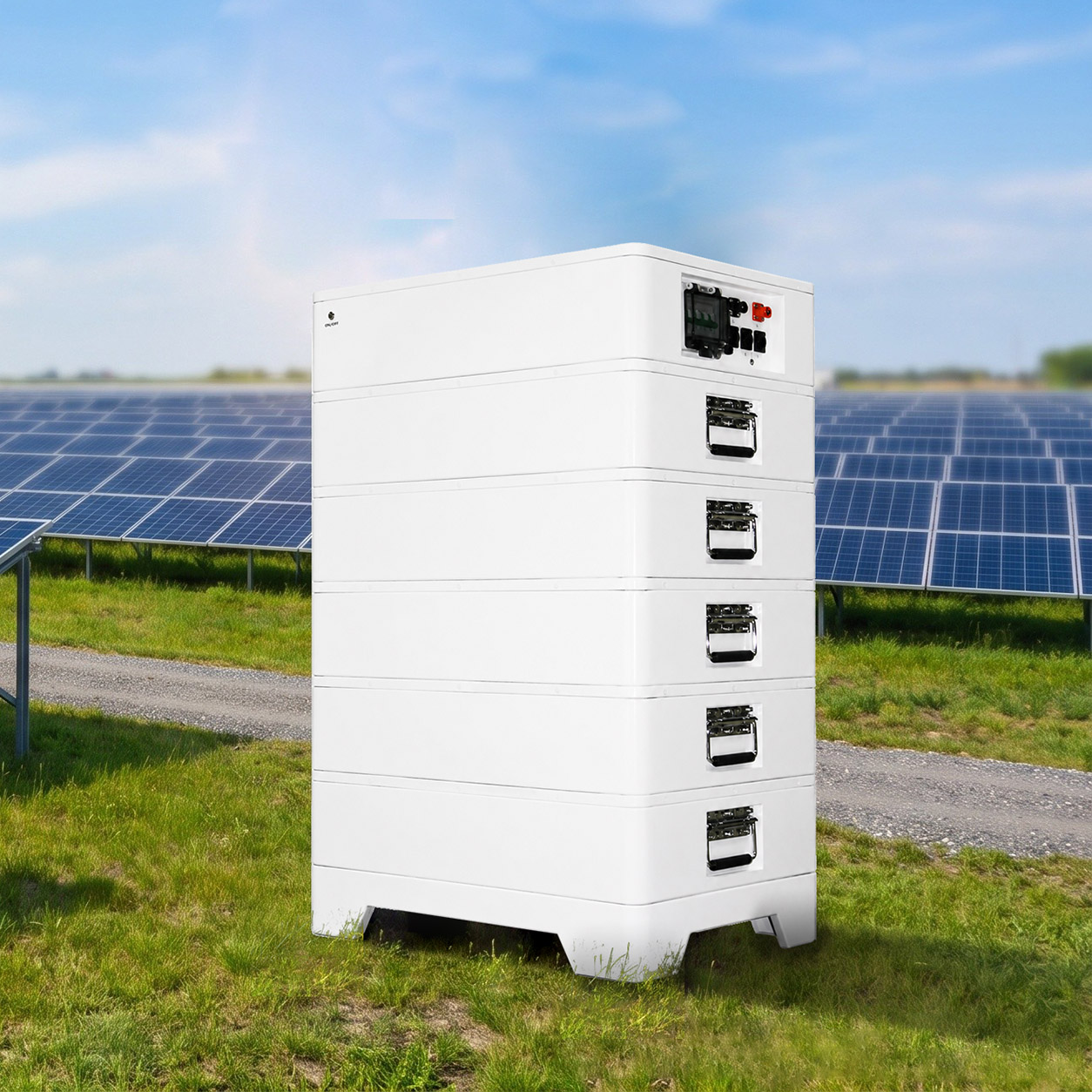

Outdoor-grade protection standard, supports semi-outdoor & humid equipment room installation for wider application scenarios - Natural Air Cooling, Low O&M Cost

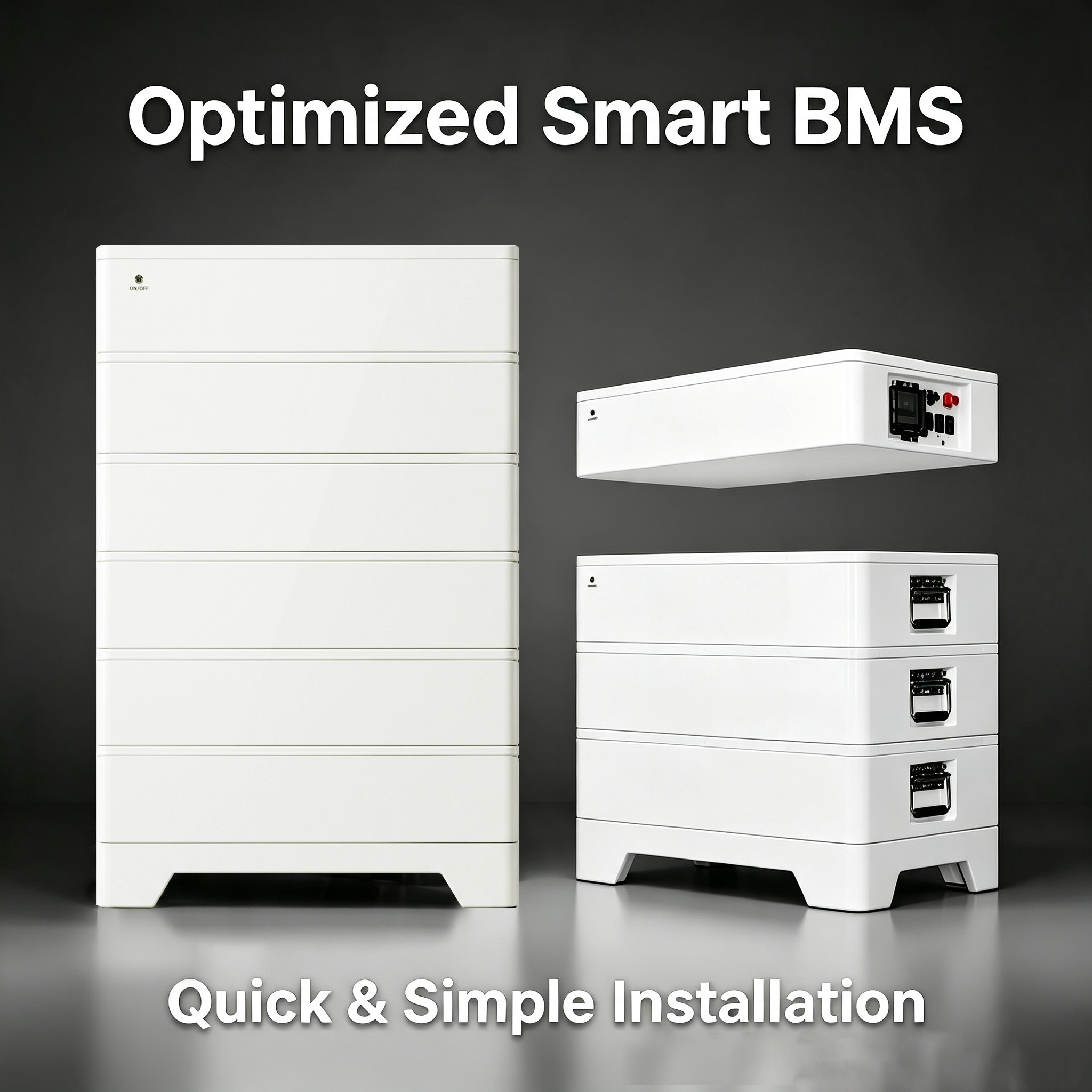

No extra cooling air conditioning required. Integrated complete cabinet for easy on-site installation - Stable Operation Under Wide Temperature Range
Charging: 0℃~55℃, Discharging: -20℃~55℃, applicable altitude up to 2000m - Long Warranty & Complete Global Certifications
10-year manufacturer warranty, service life over 15 years @25℃; fully certified CE, UL1973, IEC62619, UN38.3, MSDS - Multi-scenario Application & OEM Available
Suitable for large residential storage, light C&I energy storage, off-grid power supply & equipment backup power. OEM labeling supported
| Component | 2*Modules 1*Control Box 1*Base | 3*Modules 1*Control Box 1*Base | 4*Modules 1*Control Box 1*Base | 5*Modules 1*Control Box 1*Base | 6*Modules 1*Control Box 1*Base | 7*Modules 1*Control Box 1*Base | 8*Modules 1*Control Box 1*Base |
| Total Energy(kWh) | 15.36 | 23.04 | 30.72 | 38.4 | 46.08 | 53.76 | 61.44 |
| Useable Energy(kWh) | 14.44 | 21.66 | 28.88 | 36.10 | 43.32 | 50.53 | 57.75 |
| Nominal Voltage (Vd.c) | 153.6 | 230.4 | 307.2 | 384 | 460.8 | 537.6 | 614.4 |
| Voltage Range (Vd.c) | 134.4～172.8 | 201.6～259.2 | 268.8～345.6 | 336～432 | 403.2～518.4 | 470.4～604.8 | 537.6～691.2 |
| Roted Capacity(Ah) | 100 | ||||||
| Recommend Charge Current (A) | 50 | ||||||
| Recommend Discharge Current (A) | 50 | ||||||
| Recommend Using DOD | 90% | ||||||
| Dimension(W*H*D)(mm) | 660*550*450 | 660*695*450 | 660*840*450 | 660*985*450 | 660*1130*450 | 660*1275*450 | 660*1420*450 |
| Weight (KG) | 154 | 217 | 280 | 343 | 406 | 469 | 532 |
